UJ10C1K21M Nidec 10 hp 3600 RPM 1-phase 215JM Frame 230V TEFC Close-Coupled Pump Motor
KKM Solutions is an independent parts distributor, not an authorized Nidec dealer — how we source.
Overview
Part number UJ10C1K21M from Nidec, listed in General Purpose AC Motors. Specifications on file: Duty Continuous; Enclosure Type TEFC; Frame 215JM; Frame Material Aluminum. KKM Solutions quotes this part with pricing and availability confirmed per order.
UJ10C1K21M Nidec 10 hp 3600 RPM 1-phase 215JM Frame 230V TEFC Close-Coupled Pump Motor
This Nidec close-coupled pump motor delivers 10 horsepower with a 3600 RPM speed, designed for single-phase 230V applications. It is ideal for direct pump mounting where the impeller is mounted directly on the motor shaft, providing efficient and reliable operation.
Key Specifications
Horsepower: 10 HP
RPM: 3600
Voltage: 230V
Amperage: 40.0 amps
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 215JM Rolled Steel Frame
Shaft Dimensions: JM steel shaft
Rotation: Reversible
Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base for stable mounting and is designed with Class F insulation for enhanced thermal endurance. It operates with a 1.15 service factor and does not include built-in thermal protection. The close-coupled design allows the pump impeller to be mounted directly on the shaft, simplifying installation and reducing alignment issues.
Specifications
| Duty | Continuous |
|---|---|
| Enclosure Type | TEFC |
| Frame | 215JM |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 40 A |
| Horsepower | 10 HP |
| Mounting | Rigid |
| Phase | 1 |
| Power | 10 HP |
| Product Line | Special Application Close Coupled Pump Single Phase TEFC |
| Speed | 3600 RPM |
| Voltage | 230V |
| Voltage rating | 230 V |
Product details
| Manufacturer | Nidec |
|---|---|
| Manufacturer part number | UJ10C1K21M |
| Product category | General Purpose AC Motors |
| Published specifications | 14 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does UJ10C1K21M cost?
UJ10C1K21M is listed at CA$2,467.02 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the UJ10C1K21M?
UJ10C1K21M is made by Nidec and is listed in our General Purpose AC Motors category. KKM Solutions is an independent distributor, not an authorized Nidec dealer: we source the exact Nidec part number UJ10C1K21M, and the quote confirms condition and lead time before you order.
Is the UJ10C1K21M new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the UJ10C1K21M, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of UJ10C1K21M?
No published lifecycle status is on file for UJ10C1K21M. Nidec lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of UJ10C1K21M?
Key specifications include Duty: Continuous; Enclosure Type: TEFC; Frame: 215JM; Frame Material: Aluminum. The full specification table on this page lists every published attribute for this part.
What voltage does UJ10C1K21M use?
Per the published specification for UJ10C1K21M: Voltage: 230V; Voltage rating: 230 V. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the power rating of UJ10C1K21M?
Per the published specification for UJ10C1K21M: Horsepower: 10 HP. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can UJ10C1K21M ship?
Lead time for UJ10C1K21M is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Nidec part numbers in this family:
Related Products
Nidec UJ10C1K21P Nidec 10 hp 3600 RPM 1-phase 215JP Frame…

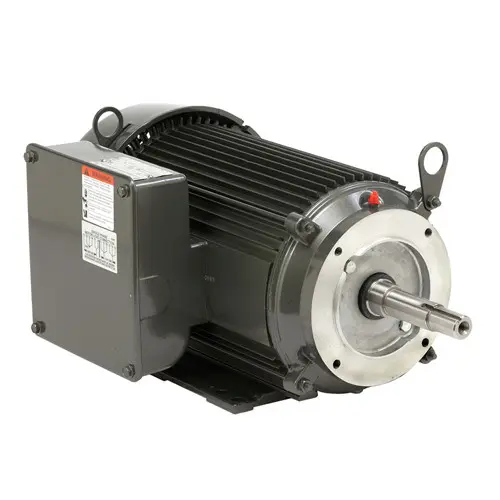

Nidec UJ10C2K21M Nidec 10 hp 1800 RPM 1-phase 215JM Frame…
Nidec UJ10C2K21P Nidec 10 hp 1800 RPM 1-phase 215JP Frame…

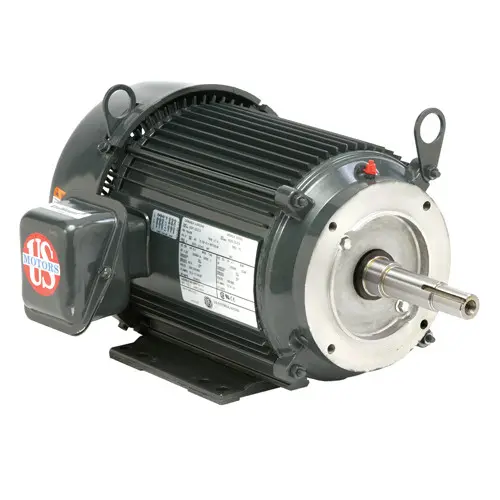

Nidec UJ10P2GP Nidec 10 hp 1800 RPM 3-phase 215JP Frame…
