Molex Brad M23 Power Connector, Front Panel-Mount Receptacle, Straight Male Flange Mount 4xØ 3.20mm, Crimp Contacts 1202340007
Overview
Part number 1202340007 from Molex, listed in Connectors & Interconnect. Specifications on file: Cable diameter N/A; Coupling type N/A; Current Maximum Per Contact 28.0A; Diagnostics Le Ds No. KKM Solutions quotes this part with pricing and availability confirmed per order.
Brad M23 Power Connector, Front Panel-Mount Receptacle, Straight Male Flange Mount 4xØ 3.20mm, Crimp Contacts, 8 (4+3+PE) Poles (Molex part 1202340007). Ip Rating: IP67; Product Name: Brad M23; Type: Field Attachable Connector; Cable Diameter: N/A; Coupling Type: N/A; Diagnostics Le Ds: No. Supplied new. Request a quote for pricing and availability.
Specifications
| Cable diameter | N/A |
|---|---|
| Coupling type | N/A |
| Current Maximum Per Contact | 28.0A |
| Diagnostics Le Ds | No |
| Diagnostics Port | No |
| Gender | Male |
| IP Rating | IP67 |
| Keyway | None |
| Material Connector Body | Nylon |
| Material Contact | Brass |
| Material Coupling Nut | N/A |
| Material Plating Mating | Gold |
| Orientation | Straight |
| Poles | 8 (4+3+PE) |
| Product Name | Brad M23 |
| Temperature Range (Operating) | -40° to +125°C |
| Type | Field Attachable Connector |
| Voltage Maximum | 600V |
| Wire Size Awg | N/A |
Product details
| Manufacturer | Molex |
|---|---|
| Manufacturer part number | 1202340007 |
| Product category | Connectors & Interconnect |
| Published specifications | 19 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1202340007?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1202340007?
1202340007 is a Molex part, sourced to the exact manufacturer specification.
What is the lifecycle status of 1202340007?
No published lifecycle status is on file for 1202340007. Molex lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1202340007?
Key specifications include Cable diameter: N/A; Coupling type: N/A; Current Maximum Per Contact: 28.0A; Diagnostics Le Ds: No. The full specification table on this page lists every published attribute for this part.
How quickly can 1202340007 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other Molex part numbers in this family:
Related Products
Molex Molex Brad M23 Power Connector, Front Panel-Mount Receptacle, Straight…
Molex Molex Brad M23 Power Connector, Back Panel-Mount Receptacle, Straight…
Molex Molex Brad M23 Power Connector, Straight Female, Crimp Contacts,…
Molex Molex Brad M23 Power Connector, 90° Female Receptacle Housing…

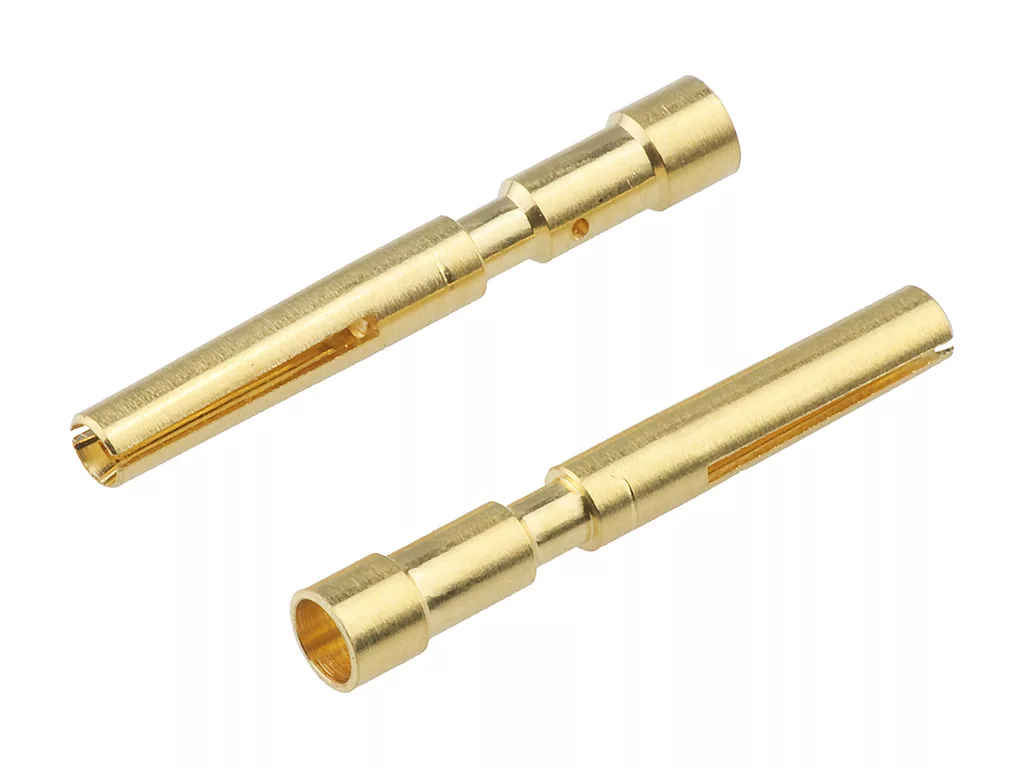

Molex Molex Brad M23 Signal Connector, Female Contact Ø 1.5mm,…
