Molex Double-Ended RJ-45 Cordset, 4 Poles, Male (Straight) to Male (Straight), 22 AWG, Green Shielded TPE Cable 1201088353
Overview
Part number 1201088353 from Molex, listed in Sensor & Actuator Cordsets. Specifications on file: Cable diameter 6.70mm (.264"); Cable length 1.0m (3.28'); Color Cable Jacket Green; Connector End A RJ-45 (standard). KKM Solutions quotes this part with pricing and availability confirmed per order.
Double-Ended RJ-45 Cordset, 4 Poles, Male (Straight) to Male (Straight), 22 AWG, Green Shielded TPE Cable, 1.0m (3.28') Length, 6.70mm (.264") Diameter (Molex part 1201088353). Ip Rating: IP20; Performance Category: 5e; Product Name: Industrial Ethernet,RJ45; Protocol: EtherNet; Type: Double Ended; Cable Diameter: 6.70mm (.264"). Supplied new. Request a quote for pricing and availability.
Specifications
| Cable diameter | 6.70mm (.264") |
|---|---|
| Cable length | 1.0m (3.28') |
| Color Cable Jacket | Green |
| Connector End A | RJ-45 (standard) |
| Connector End B | RJ-45 (standard) |
| Coupling style | Push and Latch |
| Current Maximum Per Contact | 1.5A |
| Gender | Male-Male |
| IP Rating | IP20 |
| Keyway | None |
| LED Indicator | None |
| Material Cable Jacket | TPU |
| Material Connector Body | TPU |
| Material Contact | Phosphor Bronze |
| Material Coupling Nut | N/A |
| Material Plating Mating | Gold |
| Net weight | 96.700/g |
| Orientation | Straight to Straight |
| Performance Category | 5e |
| Poles | 4 |
| Product Name | Industrial Ethernet,RJ45 |
| Protocol | EtherNet |
| Temperature Range (Operating) | -25° to +85°C |
| Type | Double Ended |
| Voltage Maximum | 30V AC (RMS) / 42V DC |
| Wire Cable Type | Shielded TPE/AWM 21215 |
| Wire Size Awg | 22 |
Product details
| Manufacturer | Molex |
|---|---|
| Manufacturer part number | 1201088353 |
| Product category | Sensor & Actuator Cordsets |
| Published specifications | 27 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1201088353?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1201088353?
1201088353 is a Molex part, sourced to the exact manufacturer specification.
What is the lifecycle status of 1201088353?
No published lifecycle status is on file for 1201088353. Molex lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1201088353?
Key specifications include Cable diameter: 6.70mm (.264"); Cable length: 1.0m (3.28'); Color Cable Jacket: Green; Connector End A: RJ-45 (standard). The full specification table on this page lists every published attribute for this part.
How quickly can 1201088353 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other Molex part numbers in this family:
Related Products

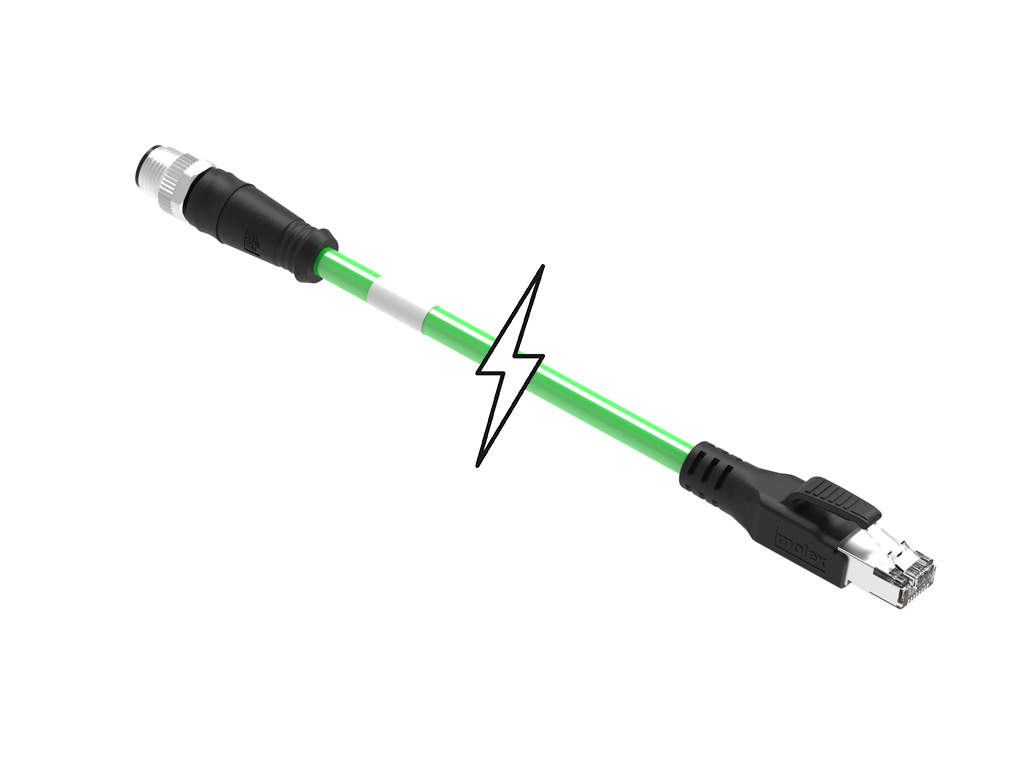

Molex Molex Micro-Change (M12) to Standard RJ-45 Double-Ended Cordset, 4…
