1200948150 Molex Brad M23 Power Single-Ended Cordset, 12 Poles, A-Coded, Female (90°) to Pigtail, 22-19 AWG
KKM Solutions is an independent parts distributor, not an authorized Molex dealer — how we source.
Molex Brad M23 Power Single-Ended Cordset, 12 Poles, A-Coded, Female (90°) to Pigtail, 22-19 AWG 1200948150
Overview
Part number 1200948150 from Molex, listed in Sensor & Actuator Cordsets. Specifications on file: Cable diameter 8.50mm (.335"); Cable length 10.0m (32.81'); Color Cable Jacket Black; Connector End A M23. KKM Solutions quotes this part with pricing and availability confirmed per order.
Brad M23 Power Single-Ended Cordset, 12 Poles, A-Coded, Female (90°) to Pigtail, 22-19 AWG, Orange Unshielded TPU WSOR Cable, 10.0m (32.81') Length (Molex part 1200948150). Ip Rating: IP67; Product Name: Brad M23; Type: Single Ended; Cable Diameter: 8.50mm (.335"); Cable Length: 10.0m (32.81'); Color Cable Jacket: Black. Supplied new. Request a quote for pricing and availability.
Specifications
| Cable diameter | 8.50mm (.335") |
|---|---|
| Cable length | 10.0m (32.81') |
| Color Cable Jacket | Black |
| Connector End A | M23 |
| Connector End B | Pigtail |
| Coupling style | Threaded |
| Current Maximum Per Contact | 6.0A |
| Gender | Female-Pigtail |
| IP Rating | IP67 |
| Keyway | A-Coded |
| LED Indicator | None |
| Material Cable Jacket | TPU |
| Material Connector Body | TPU |
| Material Contact | Bronze |
| Material Coupling Nut | Nickel-plated Brass |
| Material Plating Mating | Nickel |
| Net weight | 1105.600/g |
| Orientation | 90° to Pigtail |
| Poles | 12 |
| Product Name | Brad M23 |
| Temperature Range (Operating) | -25° to +90°C |
| Type | Single Ended |
| Voltage Maximum | 63V AC/DC |
| Wire Cable Type | UL 21215 |
| Wire Size Awg | 19, 22 |
Product details
| Manufacturer | Molex |
|---|---|
| Manufacturer part number | 1200948150 |
| Product category | Sensor & Actuator Cordsets |
| Published specifications | 25 attributes listed |
| Related part numbers | 9 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1200948150?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1200948150?
1200948150 is a Molex part, sourced to the exact manufacturer specification.
What is the lifecycle status of 1200948150?
No published lifecycle status is on file for 1200948150. Molex lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1200948150?
Key specifications include Cable diameter: 8.50mm (.335"); Cable length: 10.0m (32.81'); Color Cable Jacket: Black; Connector End A: M23. The full specification table on this page lists every published attribute for this part.
How quickly can 1200948150 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other Molex part numbers in this family:
Related Products

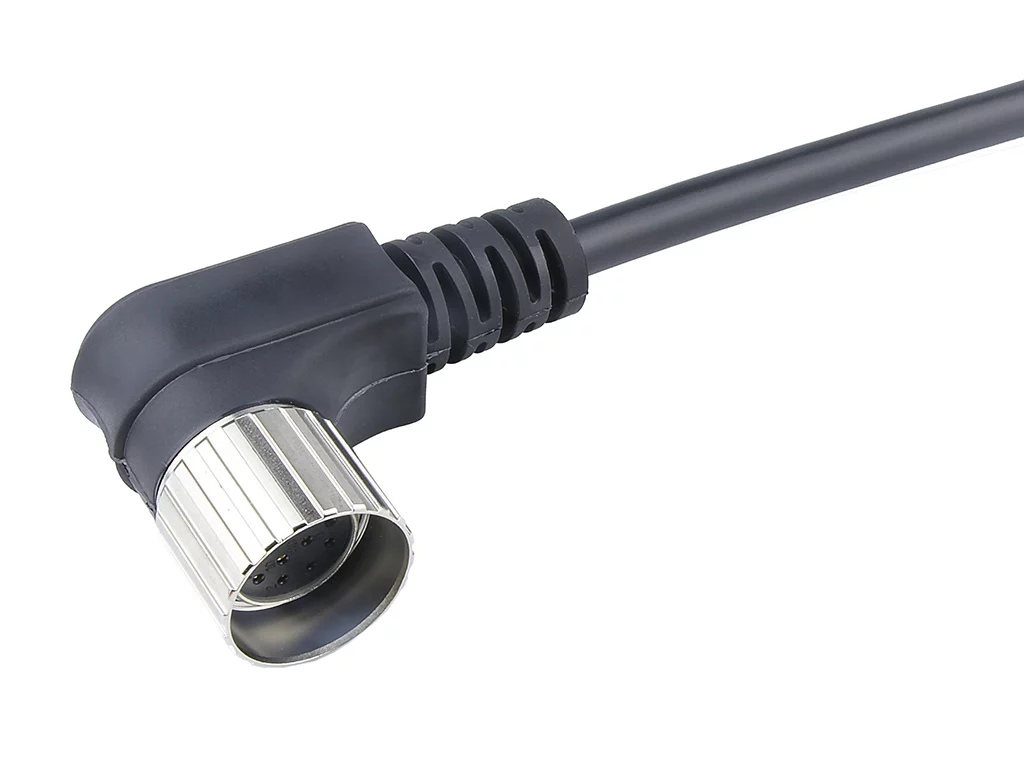

Molex Molex Brad M23 Single-Ended Cordset, 12 Poles/7 Wired, Female…
Molex Molex Brad M23 Power Single-Ended Cordset, 19 Poles, A-Coded,…

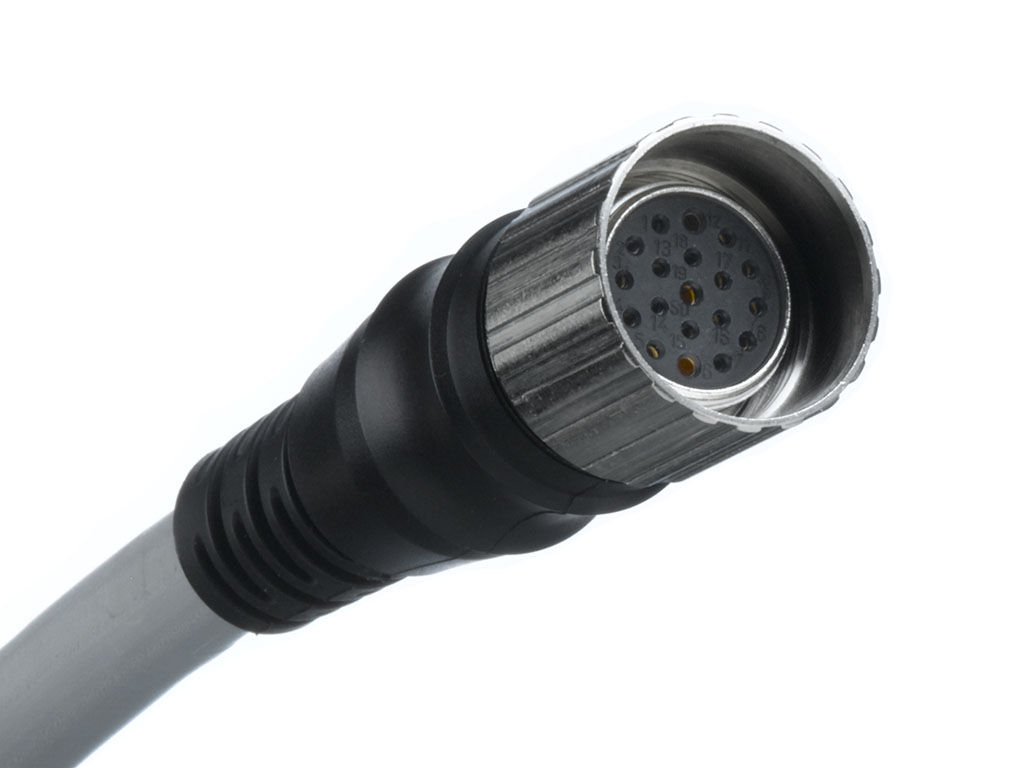

Molex Molex Brad M23 Single-Ended Cordset, 12 Poles, Female (Straight)…
