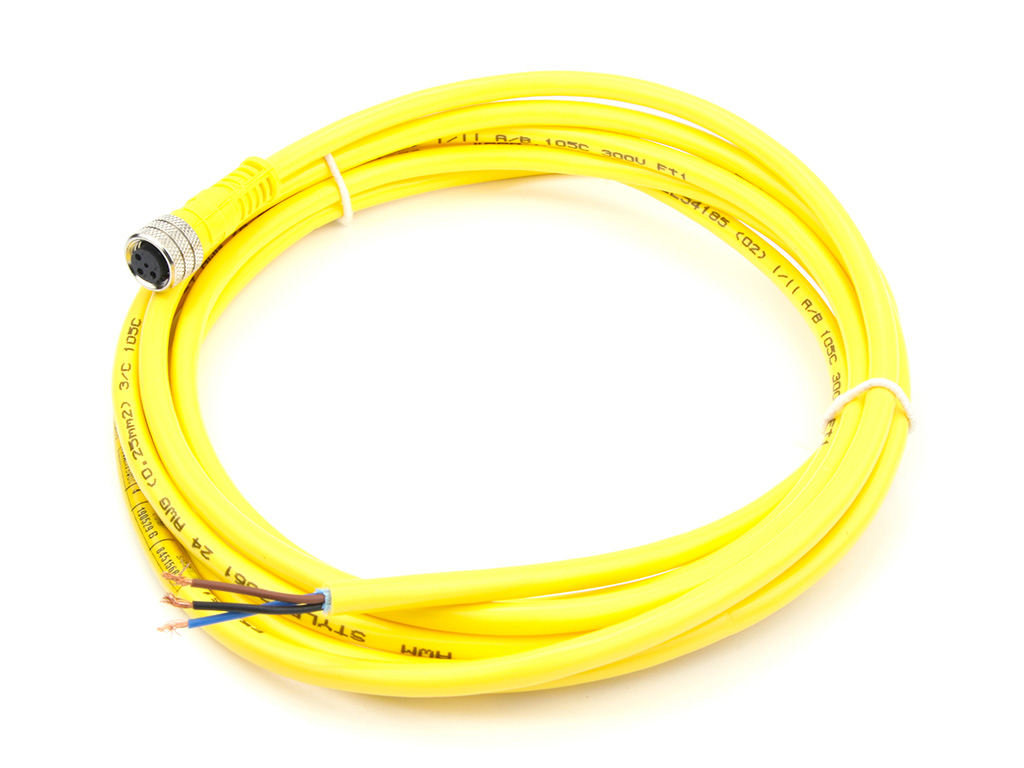

1200860102 Molex Nano-Change (M8) Single-Ended Cordset, 3 Poles, A-Coded, Female (Straight) to Pigtail, 24 AWG
KKM Solutions is an independent parts distributor, not an authorized Molex dealer — how we source.
Molex Nano-Change (M8) Single-Ended Cordset, 3 Poles, A-Coded, Female (Straight) to Pigtail, 24 AWG 1200860102
Overview
Part number 1200860102 from Molex, listed in Sensor & Actuator Cordsets. Specifications on file: Cable diameter 4.32mm (.170"); Cable length 2.0m (6.56'); Color Cable Jacket Yellow; Connector End A Nano-Change (M8). KKM Solutions quotes this part with pricing and availability confirmed per order.
Nano-Change (M8) Single-Ended Cordset, 3 Poles, A-Coded, Female (Straight) to Pigtail, 24 AWG, Yellow PVC Cable, 2.0m (6.56') Length (Molex part 1200860102). Ip Rating: IP67; Product Name: Nano-Change (M8); Type: Single Ended; Cable Diameter: 4.32mm (.170"); Cable Length: 2.0m (6.56'); Color Cable Jacket: Yellow. Supplied new. Request a quote for pricing and availability.
Specifications
| Cable diameter | 4.32mm (.170") |
|---|---|
| Cable length | 2.0m (6.56') |
| Color Cable Jacket | Yellow |
| Connector End A | Nano-Change (M8) |
| Connector End B | Pigtail |
| Coupling style | Threaded |
| Current Maximum Per Contact | 3.0A |
| Gender | Female-Pigtail |
| IP Rating | IP67 |
| Keyway | A-Coded |
| LED Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material O Ring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net weight | 65.000/g |
| Orientation | Straight to Pigtail |
| Poles | 3 |
| Product Name | Nano-Change (M8) |
| Temperature Range (Operating) | -20° to +105°C |
| Type | Single Ended |
| Voltage Maximum | 60V AC / 75V DC |
| Wire Cable Type | UL 2661 |
| Wire Size Awg | 24 |
Product details
| Manufacturer | Molex |
|---|---|
| Manufacturer part number | 1200860102 |
| Product category | Sensor & Actuator Cordsets |
| Published specifications | 26 attributes listed |
| Related part numbers | 18 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1200860102?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1200860102?
1200860102 is a Molex part, sourced to the exact manufacturer specification.
What is the lifecycle status of 1200860102?
No published lifecycle status is on file for 1200860102. Molex lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1200860102?
Key specifications include Cable diameter: 4.32mm (.170"); Cable length: 2.0m (6.56'); Color Cable Jacket: Yellow; Connector End A: Nano-Change (M8). The full specification table on this page lists every published attribute for this part.
How quickly can 1200860102 ship?
Lead time is quoted per part and confirmed on your quote.
