116523.00 Leeson 5 hp 3600 RPM 208-230V 56 Frame (Rigid Base) ODP 1-Phase Compressor Motor
KKM Solutions is an independent parts distributor, not an authorized Leeson dealer — how we source.
Overview
Part number 116523.00 from Leeson, listed in Compressors. Specifications on file: Duty Continuous; Enclosure Type ODP; Frame 56; Frame Material Rolled Steel. KKM Solutions quotes this part with pricing and availability confirmed per order.
5 hp 3600 RPM, 15.0 amps 208-230 Volts 60 Hz. Capacitor Start/Run 1-Phase Motor
NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
Service Factor: 1.0 Overload Protection = Manual
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty
Air compressor motor designed to have higher torque than general purpose motors. Wiring diagram on motor name plate. ODP = Open Drip Proof.
Specifications
| Duty | Continuous |
|---|---|
| Enclosure Type | ODP |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 15.0-15.0 |
| Horsepower | 5 HP |
| Mounting | Rigid |
| Phase | 1 |
| Power | 5 HP |
| Speed | 3600 RPM |
| Voltage | 230V |
| Voltage rating | 208-230V |
Product details
| Manufacturer | Leeson |
|---|---|
| Manufacturer part number | 116523.00 |
| Product category | Compressors |
| Published specifications | 13 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 116523.00 cost?
116523.00 is listed at CA$990.49 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the 116523.00?
116523.00 is a Leeson part, sourced to the exact manufacturer specification.
What is the lifecycle status of 116523.00?
No published lifecycle status is on file for 116523.00. Leeson lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 116523.00?
Key specifications include Duty: Continuous; Enclosure Type: ODP; Frame: 56; Frame Material: Rolled Steel. The full specification table on this page lists every published attribute for this part.
How quickly can 116523.00 ship?
Lead time is quoted per part and confirmed on your quote.
Related Products
Leeson 120554.00 Leeson | 5 hp 3450 RPM 145T 230V…
Leeson 111275.00 Leeson 5 hp 3600 RPM 230V 56Y Frame…
Leeson 110232.00 Leeson 2 hp 3600 RPM 115/230V 56 Frame…
Leeson 110222.00 Leeson 3 hp 3600 RPM 230V 56Y Frame…
Century Electric Motor FB3154 Century SPL hp 208-230/460V 1800 RPM Open 56…

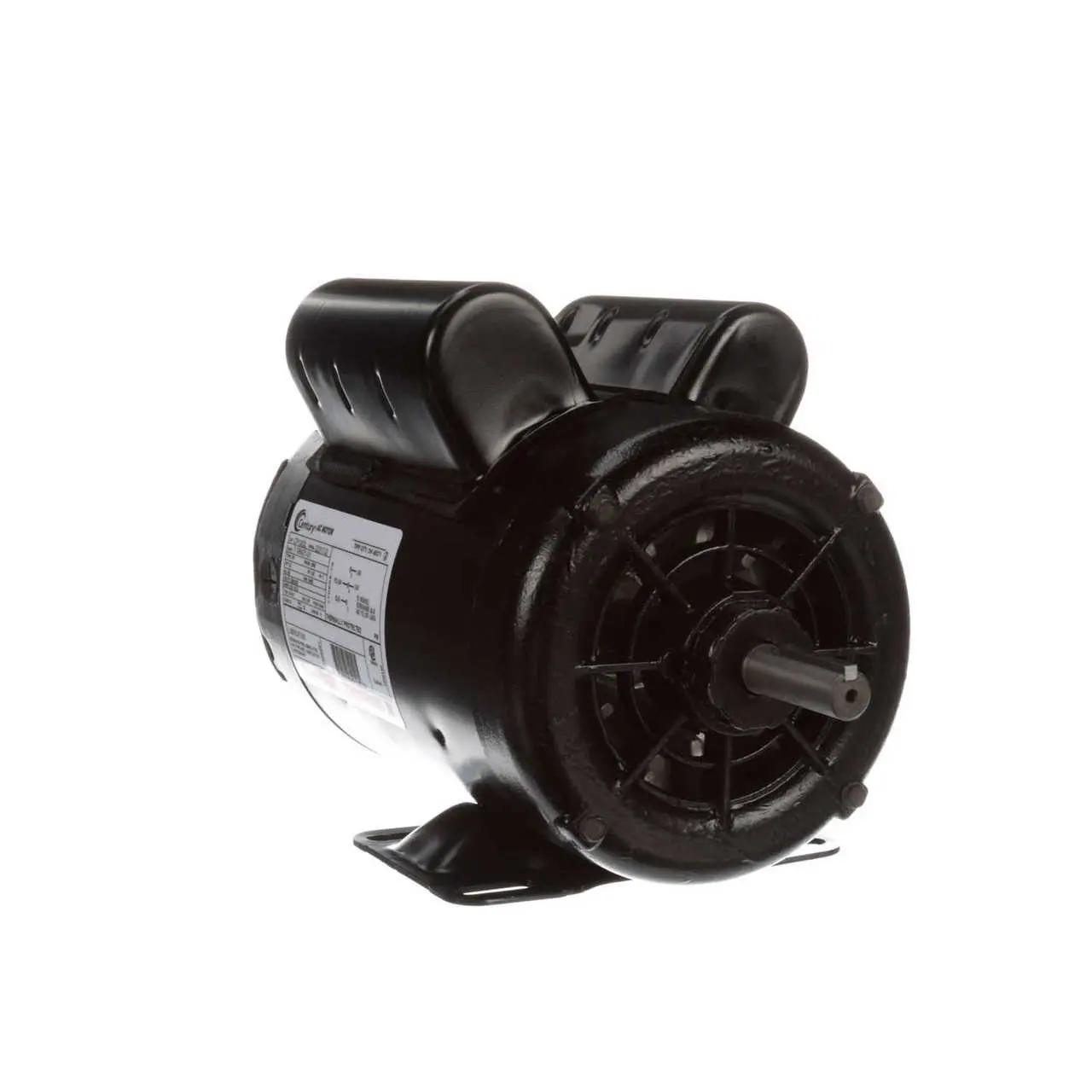

Century Electric Motor CP1302L Century 3 HP 3450 RPM 56 Frame 208-230V…
