102018.00 Leeson 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
Overview
1/3 hp 1725 RPM, 6.6/3.3 amps 115/208-230 Volts 60hz. single Phase Motor
NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
Service Factor: 1.15 - overload protection = Manual
Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
M4C17FB22C, 102018.00
Specifications
| Duty | Continuous |
|---|---|
| Enclosure Type | TEFC |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/2.9-3.3 |
| Horsepower | 1/3 HP |
| Mounting | Rigid |
| Phase | Single |
| Power | 1/3 HP |
| Speed | 1725 RPM |
Product details
| Manufacturer | Leeson |
|---|---|
| Manufacturer part number | 102018.00 |
| KKM catalog reference | LEESON-102018.00 |
| Product category | General Purpose AC Motors |
| Published specifications | 11 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 102018.00 cost?
102018.00 is listed at CA$592.48 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 102018.00?
102018.00 is a Leeson part. KKM Solutions sources Leeson components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 102018.00?
We do not hold a published lifecycle status for 102018.00. Leeson's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 102018.00?
Key specifications include Duty: Continuous; Enclosure Type: TEFC; Frame: 48; Frame Material: Rolled Steel. The full specification table on this page lists every published attribute for this part.
How quickly can 102018.00 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Leeson 102016.00 Leeson | 1/3 hp 3450 RPM 48 Frame…
Leeson 102021.00B Leeson 1/2 hp 1800 RPM 115V 56C Frame…
Leeson 102013.00 Leeson | 1/6 hp 1140 RPM 48 Frame…
Leeson 102864.00 Leeson | 1/2 hp 3600 RPM 56C Frame…
Leeson 101769.00 Leeson | 1/3 hp 1800 RPM 56C Frame…

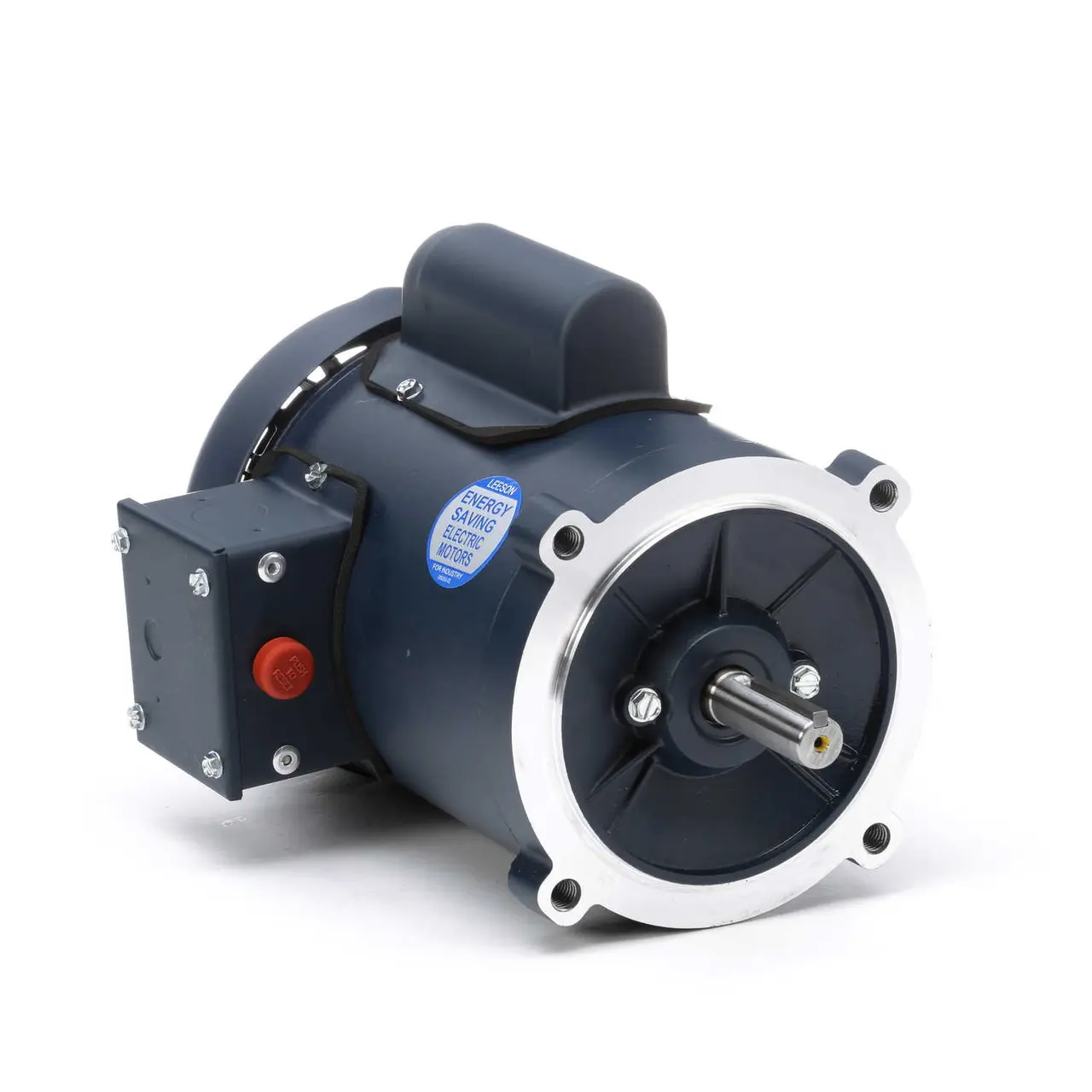

Leeson 102865.00 Leeson | 1/2 hp 1800 RPM 56C Frame…
