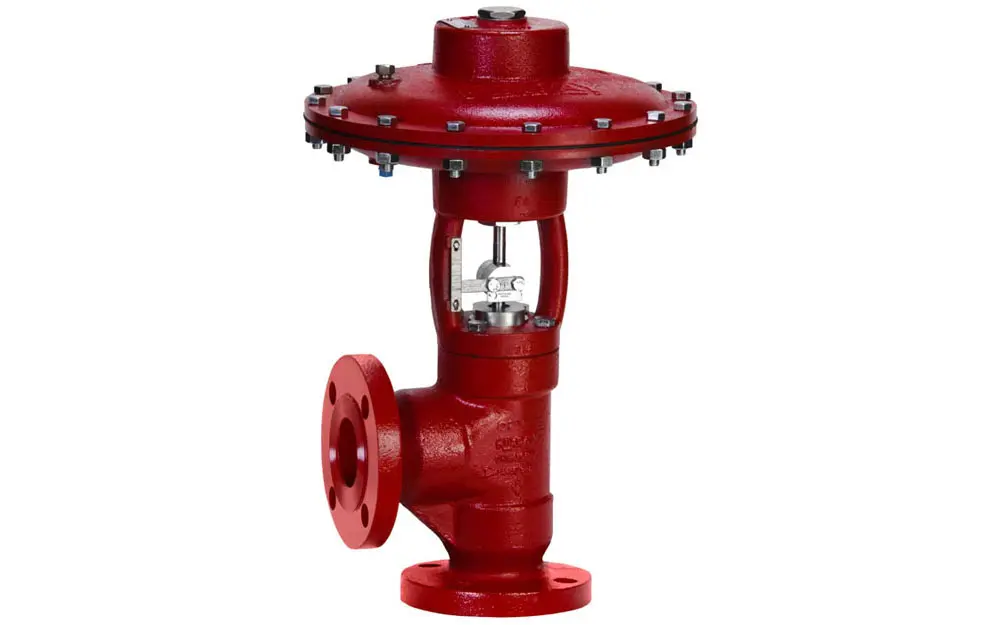

Kimray EZE
Kimray EZE - Stem Guided - Weight: 78 lbs; Connection type: 150 RF; Body material: Steel.
Kimray EZE is a Stem Guided catalog item from Kimray. The manufacturer's published data for this part number specifies Weight: 78 lbs and Connection type: 150 RF.
The specification set recorded for this part number covers Body material: Steel; Operation: Pneumatic; Connection Size: 2 "; Body style: Angled Body; Catalog Page: 01:10.1; Max Working Pressure: 285 psig; NACE MR0175: Option Available for NACE MR0175 compliance or certification; Trim Size: 0.625 "; Trim Type: Equal Percentage; Leakage Class: Class IV; Process Fluid: Liquid and Gas; Max Cv: 10.8. See the Specifications tab on this page for the full technical table.
| Actuator Spring Nominal Pressure | 20 psig |
|---|---|
| Body material | Steel |
| Body style | Angled Body |
| Catalog Page | 01:10.1 |
| Cf | 0.58 |
| Connection Size | 2 " |
| Connection type | 150 RF |
| Fail Position | Closed - Field Reversible |
| Leakage Class | Class IV |
| Max Cv | 10.8 |
| Max Supply Gas Pressure | 45 psig |
| Max Working Pressure | 285 psig |
| NACE MR0175 | Option Available for NACE MR0175 compliance or certification |
| Operation | Pneumatic |
| Process Fluid | Liquid and Gas |
| Trim Size | 0.625 " |
| Trim Type | Equal Percentage |
| Weight | 78 lbs |
