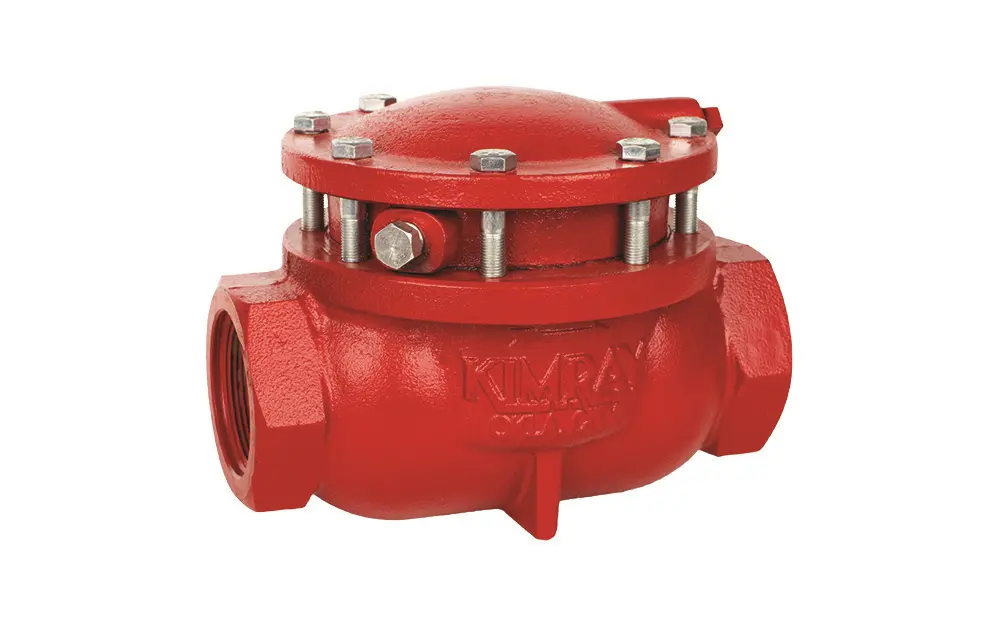

Kimray EUA1
Kimray EUA1 - Pneumatic Single Acting - Weight: 6 lbs; Connection type: Female NPT; Body material: Cast Ductile.
The Kimray EUA1 is part of the Pneumatic Single Acting range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 6 lbs and Connection type: Female NPT.
Published specifications for this part include Body material: Cast Ductile; Operation: Pneumatic; Connection Size: 1 "; Body style: Through Body; Catalog Page: 02:10.1; Max Working Pressure: 300 psig; NACE MR0175: Option Available for NACE MR0175 compliance or certification; Trim Size: 0.5 "; Trim Type: Equal Percentage; Leakage Class: Class VI; Process Fluid: Liquid and Gas; Face-to-Face Length: 4.375 ". The complete technical table is shown in the Specifications tab on this page.
| Body material | Cast Ductile |
|---|---|
| Body style | Through Body |
| Catalog Page | 02:10.1 |
| Cf | 0.86 |
| Connection Size | 1 " |
| Connection type | Female NPT |
| Face-to-Face Length | 4.375 " |
| Leakage Class | Class VI |
| Max Cv | 5 |
| Max Working Pressure | 300 psig |
| NACE MR0175 | Option Available for NACE MR0175 compliance or certification |
| Operation | Pneumatic |
| Process Fluid | Liquid and Gas |
| Trim Size | 0.5 " |
| Trim Type | Equal Percentage |
| Weight | 6 lbs |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for EUA1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EUA1?
EUA1 is a Kimray part. KKM Solutions sources Kimray components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is EUA1 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for EUA1 — check Kimray's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of EUA1?
Key specifications include Body material: Cast Ductile; Body style: Through Body; Catalog Page: 02:10.1; Cf: 0.86. The full specification table on this page lists every published attribute for this part.
How quickly can EUA1 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
