ESDFG Kimray
KKM Solutions is an independent parts distributor, not an authorized Kimray dealer — how we source.
Kimray ESDFG - 3 Way - Weight: 33 lbs; Connection type: Female NPT; Body material: Steel.
Overview
Part number ESDFG from Kimray. Specifications on file: 100% Open Cv of Bottom Port 13.8; Body material Steel; Body style 3 Way; Catalog Page 01:40.1. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the Kimray ESDFG, a part number in the 3 Way category. The manufacturer's published data for this part number specifies Weight: 33 lbs and Connection type: Female NPT.
Published specifications for this part include Body material: Steel; Operation: Pneumatic; Connection Size: 1 "; Body style: 3 Way; Catalog Page: 01:40.1; Max Working Pressure: 3000 psig; NACE MR0175: Option Available for NACE MR0175 compliance or certification; Trim Size: 0.817 "; Leakage Class: Class VI; Process Fluid: Liquid and Gas; Max Set Point Pressure: 3000 psig; Face-to-Face Length: 5.16 ". See the Specifications tab on this page for the full technical table.
Specifications
| 100% Open Cv of Bottom Port | 13.8 |
|---|---|
| Body material | Steel |
| Body style | 3 Way |
| Catalog Page | 01:40.1 |
| Cf | 0.7 |
| Connection Size | 1 " |
| Connection type | Female NPT |
| Elastomer | Fawn Gylon |
| Face-to-Face Length | 5.16 " |
| Leakage Class | Class VI |
| Max Cv | 8.3 |
| Max Set Point Pressure | 3000 psig |
| Max Working Pressure | 3000 psig |
| NACE MR0175 | Option Available for NACE MR0175 compliance or certification |
| Operation | Pneumatic |
| Process Fluid | Liquid and Gas |
| Trim Size | 0.817 " |
| Weight | 33 lbs |
Product details
| Manufacturer | Kimray |
|---|---|
| Manufacturer part number | ESDFG |
| Published specifications | 18 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for ESDFG?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the ESDFG?
ESDFG is made by Kimray. KKM Solutions is an independent distributor, not an authorized Kimray dealer: we source the exact Kimray part number ESDFG, and the quote confirms condition and lead time before you order.
Is the ESDFG new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the ESDFG, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of ESDFG?
No published lifecycle status is on file for ESDFG. Kimray lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of ESDFG?
Key specifications include 100% Open Cv of Bottom Port: 13.8; Body material: Steel; Body style: 3 Way; Catalog Page: 01:40.1. The full specification table on this page lists every published attribute for this part.
What thread or connection does ESDFG use?
Per the published specification for ESDFG: Connection Size: 1 "; Connection type: Female NPT. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does ESDFG weigh?
Per the published specification for ESDFG: Weight: 33 lbs. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can ESDFG ship?
Lead time for ESDFG is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Related Products
Kimray Kimray ESD

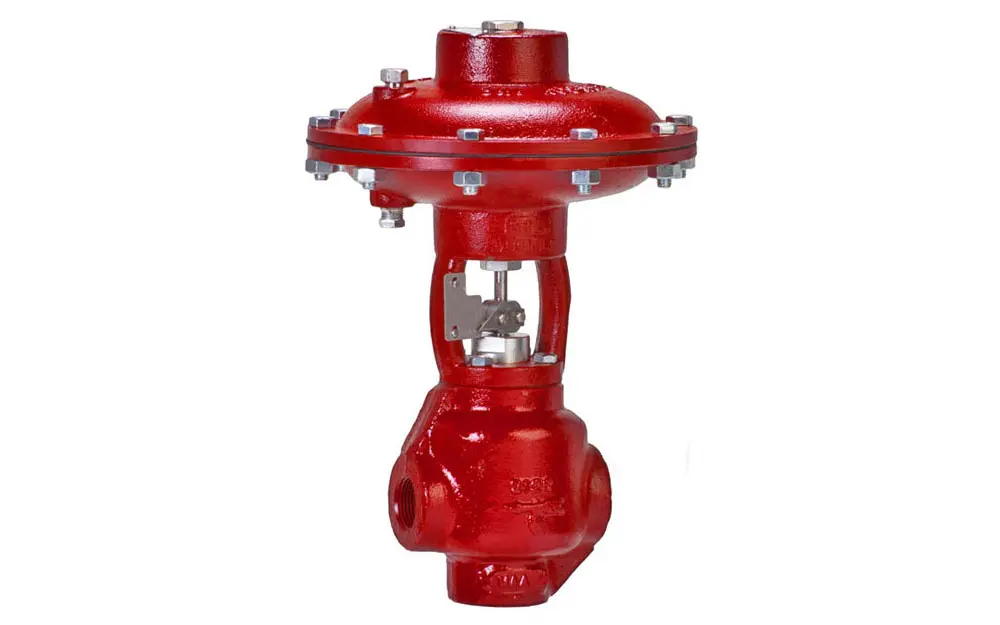

Kimray Kimray ESDMTR
