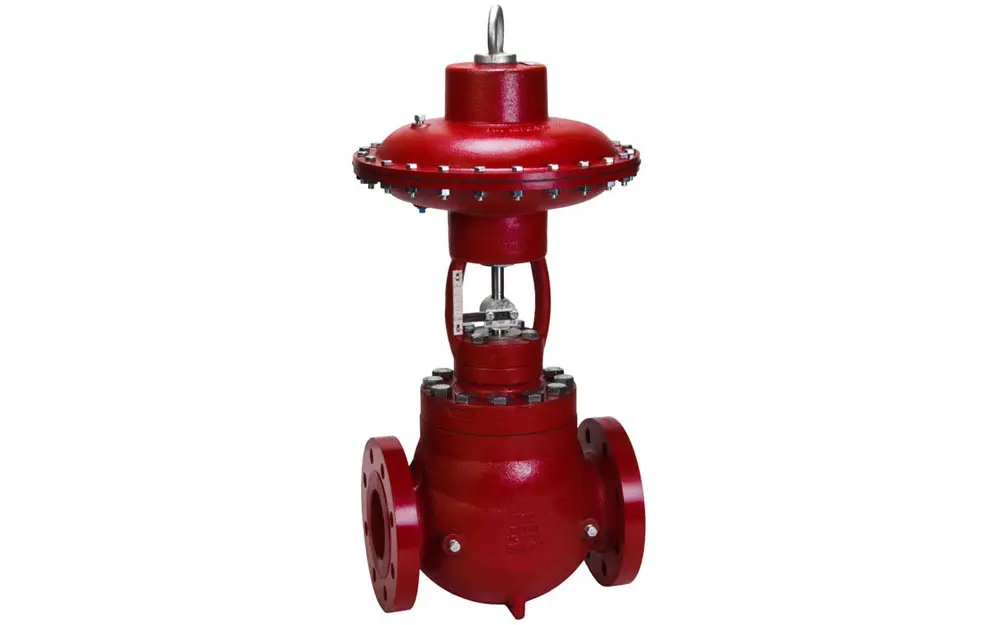

Kimray EQAS6V
Kimray EQAS6V - Cage Guided - Weight: 365 lbs; Connection type: 150 RF; Body material: Steel.
In our catalog, the EQAS6V from Kimray is listed under the Cage Guided category. The manufacturer's published data for this part number specifies Weight: 365 lbs and Connection type: 150 RF.
The specification set recorded for this part number covers Body material: Steel; Operation: Pneumatic; Connection Size: 4 "; Trim / Material: Stainless Steel; Body style: Through Body; Catalog Page: 01:20.1; Max Working Pressure: 285 psig; NACE MR0175: NACE MR0175 Compliant; Trim Size: 4 "; Trim Type: Equal Percentage; Leakage Class: Class VI; Process Fluid: Liquid and Gas. The complete technical table is shown in the Specifications tab on this page.
| Actuator Crack Open Pressure | 6 psig |
|---|---|
| Actuator Full Open Pressure | 30 psig |
| Actuator Spring Nominal Pressure | 30 psig |
| Body material | Steel |
| Body style | Through Body |
| Catalog Page | 01:20.1 |
| Cf | 0.75 |
| Connection Size | 4 " |
| Connection type | 150 RF |
| Elastomer | FKM |
| Face-to-Face Length | 13.88 " |
| Fail Position | Closed - Field Reversible |
| Leakage Class | Class VI |
| Max Cv | 222 |
| Max Supply Gas Pressure | 45 psig |
| Max Working Pressure | 285 psig |
| NACE MR0175 | NACE MR0175 Compliant |
| Operation | Pneumatic |
| Process Fluid | Liquid and Gas |
| Trim / Material | Stainless Steel |
| Trim Size | 4 " |
| Trim Type | Equal Percentage |
| Weight | 365 lbs |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for EQAS6V?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EQAS6V?
EQAS6V is a Kimray part. KKM Solutions sources Kimray components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is EQAS6V discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for EQAS6V — check Kimray's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of EQAS6V?
Key specifications include Actuator Crack Open Pressure: 6 psig; Actuator Full Open Pressure: 30 psig; Actuator Spring Nominal Pressure: 30 psig; Body material: Steel. The full specification table on this page lists every published attribute for this part.
How quickly can EQAS6V ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
