EHS Kimray Globe & Angle Seat Valves
KKM Solutions is an independent parts distributor, not an authorized Kimray dealer — how we source.

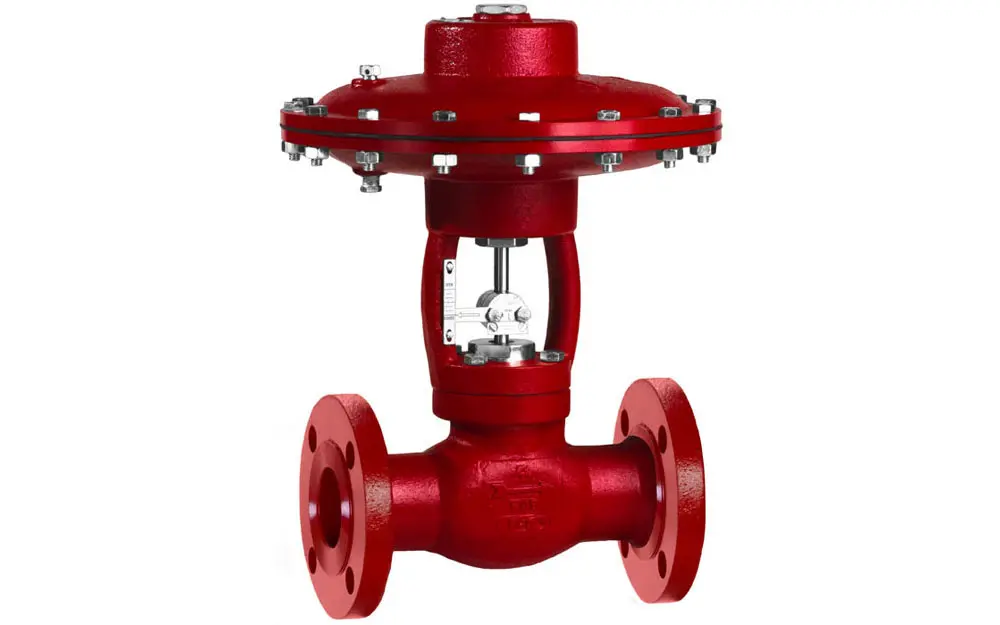

Kimray EHS - Stem Guided - Weight: 75 lbs; Connection type: 150 RF; Body material: Steel.
Overview
Part number EHS from Kimray, listed in Globe & Angle Seat Valves. Specifications on file: Actuator Spring Nominal Pressure 20 psig; Body material Steel; Body style Through Body; Catalog Page 01:10.1. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the EHS from Kimray is listed under the Stem Guided category. The manufacturer's published data for this part number specifies Weight: 75 lbs and Connection type: 150 RF.
The specification set recorded for this part number covers Body material: Steel; Operation: Pneumatic; Connection Size: 2 "; Body style: Through Body; Catalog Page: 01:10.1; Max Working Pressure: 285 psig; NACE MR0175: Option Available for NACE MR0175 compliance or certification; Trim Size: 0.375 "; Trim Type: Linear (Nominal); Leakage Class: Class IV; Process Fluid: Liquid and Gas; Face-to-Face Length: 10 ". See the Specifications tab on this page for the full technical table.
Specifications
| Actuator Spring Nominal Pressure | 20 psig |
|---|---|
| Body material | Steel |
| Body style | Through Body |
| Catalog Page | 01:10.1 |
| Cf | 0.77 |
| Connection Size | 2 " |
| Connection type | 150 RF |
| Face-to-Face Length | 10 " |
| Fail Position | Closed - Field Reversible |
| Leakage Class | Class IV |
| Max Cv | 4 |
| Max Supply Gas Pressure | 45 psig |
| Max Working Pressure | 285 psig |
| NACE MR0175 | Option Available for NACE MR0175 compliance or certification |
| Operation | Pneumatic |
| Process Fluid | Liquid and Gas |
| Trim Size | 0.375 " |
| Trim Type | Linear (Nominal) |
| Weight | 75 lbs |
Product details
| Manufacturer | Kimray |
|---|---|
| Manufacturer part number | EHS |
| Product category | Globe & Angle Seat Valves |
| Published specifications | 19 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for EHS?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EHS?
EHS is made by Kimray and is listed in our Globe & Angle Seat Valves category. KKM Solutions is an independent distributor, not an authorized Kimray dealer: we source the exact Kimray part number EHS, and the quote confirms condition and lead time before you order.
Is the EHS new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the EHS, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of EHS?
No published lifecycle status is on file for EHS. Kimray lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of EHS?
Key specifications include Actuator Spring Nominal Pressure: 20 psig; Body material: Steel; Body style: Through Body; Catalog Page: 01:10.1. The full specification table on this page lists every published attribute for this part.
What thread or connection does EHS use?
Per the published specification for EHS: Connection Size: 2 "; Connection type: 150 RF. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does EHS weigh?
Per the published specification for EHS: Weight: 75 lbs. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can EHS ship?
Lead time for EHS is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
