ACF Kimray
KKM Solutions is an independent parts distributor, not an authorized Kimray dealer — how we source.
Kimray ACF - industrial components - Weight: 8 lbs; Connection type: Female NPT; Body material: Cast Ductile.
Overview
Part number ACF from Kimray. Specifications on file: Body material Cast Ductile; Body style Through Body; Catalog Page 06:40.1; Cf 0.74. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Kimray ACF is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 8 lbs and Connection type: Female NPT.
The specification set recorded for this part number covers Body material: Cast Ductile; Operation: Pneumatic; Connection Size: 1 "; Body style: Through Body; Catalog Page: 06:40.1; Max Working Pressure: 175 psig; NACE MR0175: Option Available for NACE MR0175 compliance or certification; Trim Size: 1 "; Trim Type: Equal Percentage; Leakage Class: Class VI; Process Fluid: Liquid and Gas; Pilot Type: Vent. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Body material | Cast Ductile |
|---|---|
| Body style | Through Body |
| Catalog Page | 06:40.1 |
| Cf | 0.74 |
| Connection Size | 1 " |
| Connection type | Female NPT |
| Face-to-Face Length | 4.375 " |
| Leakage Class | Class VI |
| Max Cv | 13.2 |
| Max Set Point Pressure | 125 psig |
| Max Working Pressure | 175 psig |
| Min Set Point Pressure | 5 psig |
| NACE MR0175 | Option Available for NACE MR0175 compliance or certification |
| Operation | Pneumatic |
| Pilot Type | Vent |
| Process Fluid | Liquid and Gas |
| Trim Size | 1 " |
| Trim Type | Equal Percentage |
| Weight | 8 lbs |
Product details
| Manufacturer | Kimray |
|---|---|
| Manufacturer part number | ACF |
| Published specifications | 19 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for ACF?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the ACF?
ACF is made by Kimray. KKM Solutions is an independent distributor, not an authorized Kimray dealer: we source the exact Kimray part number ACF, and the quote confirms condition and lead time before you order.
Is the ACF new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the ACF, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of ACF?
No published lifecycle status is on file for ACF. Kimray lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of ACF?
Key specifications include Body material: Cast Ductile; Body style: Through Body; Catalog Page: 06:40.1; Cf: 0.74. The full specification table on this page lists every published attribute for this part.
What thread or connection does ACF use?
Per the published specification for ACF: Connection Size: 1 "; Connection type: Female NPT. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does ACF weigh?
Per the published specification for ACF: Weight: 8 lbs. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can ACF ship?
Lead time for ACF is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Related Products
Kimray Kimray ACC5
Kimray Kimray ACG
Kimray Kimray ACC125

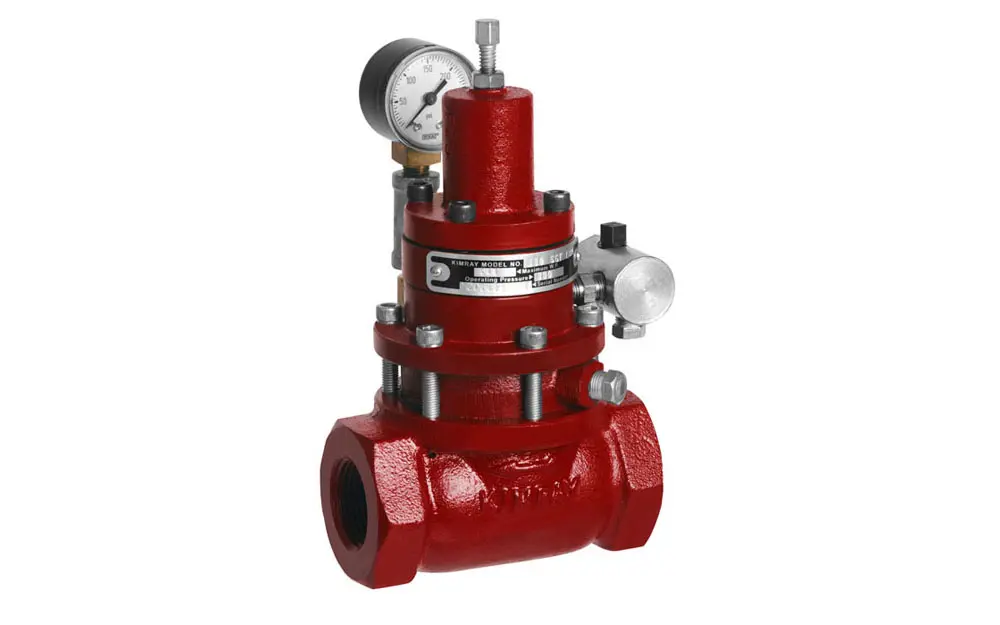

Kimray Kimray ACG5
