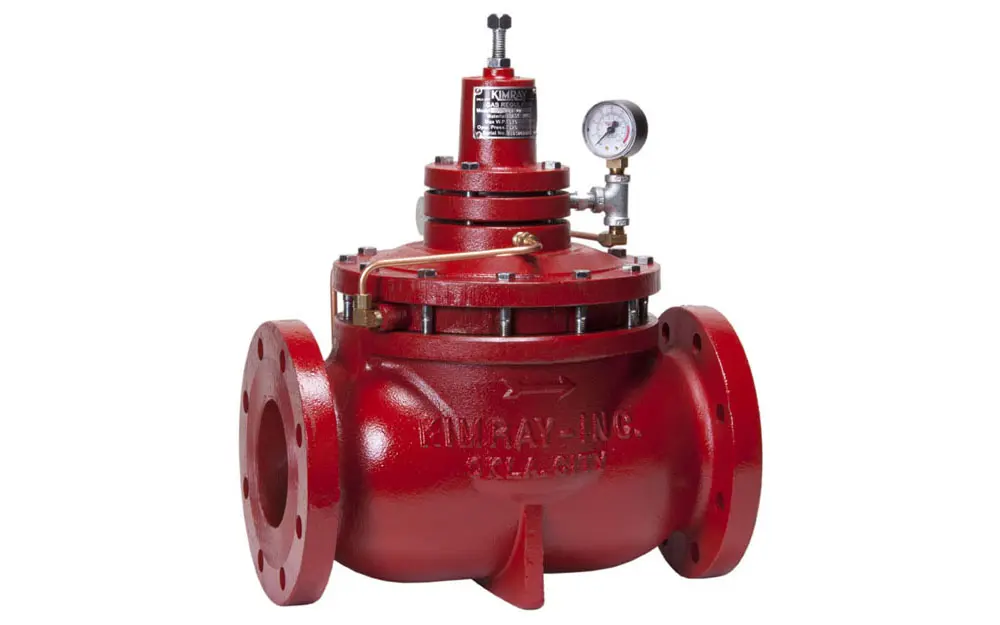

Kimray ABT5
Kimray ABT5 - industrial components - Connection type: 150 RF; Body material: Cast Ductile; Operation: Pneumatic.
In our catalog, the ABT5 from Kimray is listed under the industrial components category. The manufacturer's published data for this part number specifies Connection type: 150 RF and Body material: Cast Ductile.
Published specifications for this part include Operation: Pneumatic; Connection Size: 6 "; Body style: Through Body; Catalog Page: 06:50.9; Max Working Pressure: 175 psig; NACE MR0175: Option Available for NACE MR0175 compliance or certification; Trim Size: 3 "; Trim Type: Equal Percentage; Leakage Class: Class VI; Process Fluid: Gas; Pilot Type: Vent; Min Set Point Pressure: 5 psig. See the Specifications tab on this page for the full technical table.
| Body material | Cast Ductile |
|---|---|
| Body style | Through Body |
| Catalog Page | 06:50.9 |
| Cf | 0.8 |
| Connection Size | 6 " |
| Connection type | 150 RF |
| Face-to-Face Length | 21.938 " |
| Leakage Class | Class VI |
| Max Cv | 120 |
| Max Set Point Pressure | 125 psig |
| Max Working Pressure | 175 psig |
| Min Set Point Pressure | 5 psig |
| NACE MR0175 | Option Available for NACE MR0175 compliance or certification |
| Operation | Pneumatic |
| Pilot Type | Vent |
| Process Fluid | Gas |
| Trim Size | 3 " |
| Trim Type | Equal Percentage |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for ABT5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the ABT5?
ABT5 is a Kimray part. KKM Solutions sources Kimray components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is ABT5 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for ABT5 — check Kimray's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of ABT5?
Key specifications include Body material: Cast Ductile; Body style: Through Body; Catalog Page: 06:50.9; Cf: 0.8. The full specification table on this page lists every published attribute for this part.
How quickly can ABT5 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
