igus MAT9561533 — Power Cable
igus Igus MAT9561533 12 AWG 4C Round Plug Socket A / Booksize Plug B Connector iguPUR Siemens 6FX_002-5CS41 Power Cable 1 / 1 FT
Overview
Igus MAT9561533 12 AWG 4C Round Plug Socket A / Booksize Plug B Connector iguPUR Siemens 6FX_002-5CS41 Power Cable Allowable Ampacity for Igus MAT9561533 12 AWG 4C Round Plug Socket A / Booksize Plug B Connector iguPUR Siemens 6FX_002-5CS41 Power Cable : 100 Amps Also Known as: Power Cable, Round Plug Cable, Connector Cable, IGUS Cable, Ready Cable, Base Cable Construction: Conductor: Conductor consisting of bare copper wires (according to DIN EN 60228) Conductor insulation: Mechanically high-quality, especially low-capacitance TPE mixture Conductor construction: Cores stranded in optimized pitch Conductor identification: Cores black with white numerals, one core green-yellow. 1.Core: U / L1 / C / L+ 2.Core: V / L2 3.Core: W / L3 / D / L- Overall shield: Braid made of tinned copper wires. Shield about 60% optical. Unshielded: No Outer jacket: Low adhesion mixture on the basis of iguPUR, adapted to suit the requirements in e-chains Jacket color: Pastel orange (similar to RAL 2003) Properties and Approvals: UV resistance: Medium Oil resistance: Oil-resistant according to DIN EN 50363-10-2 Flame retardant: According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free: Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM: see data sheet for details EAC: Certified to no. TC RU C-DE. ME77.B.01561 CTP: Certified to no. C-DE. PB49.B.00450 Lead free: Following 2011/65/EU (RoHS-II) CE guideline: Following 2014/35/EU Specification: Number of Conductors and AWG size: 4 x 12 AWG (4.0) Conductor: Bare Copper Insulation: TPE Jacket: PUR Outer Diameter: 0.47 inch Copper Index: 137.1 lbs/mft Voltage: 1000 V Weight: 172.7 lbs/mft Part Number: MAT9561533
Specifications
| Piece | 1 |
|---|---|
| Size | 1 FT |
| Tag | Ctrl 11 |
| Weight | 181.34 lb |
Product details
| Manufacturer | igus |
|---|---|
| Manufacturer part number | MAT9561533 |
| KKM catalog reference | IGUS-MAT9561533 |
| Product category | Power Cable |
| Published specifications | 4 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does MAT9561533 cost?
MAT9561533 is listed at CA$283.34 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the MAT9561533?
MAT9561533 is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is MAT9561533 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for MAT9561533 — check igus's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of MAT9561533?
Key specifications include Piece: 1; Size: 1 FT; Tag: Ctrl 11; Weight: 181.34 lb. The full specification table on this page lists every published attribute for this part.
How quickly can MAT9561533 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other igus part numbers in this family:
- MAT9560001 — igus readycable® motor cable suitable for Control Techniques PS B G A…
- MAT9560018 — igus readycable® motor cable suitable for Control Techniques PS B E F…
- MAT9560921 — igus Igus MAT9560921 8 AWG 4C 90 Degree Coupling Pin A Connector…
- MAT9561411 — igus readycable® motor cable suitable for SEW 0199 5588, extension cable (Amphenol),…
- MAT95615101 — igus readycable® dual cable suitable for Siemens 6FX3_02-7CD01, basic cable, iguPUR 15xd
- MAT95615102 — igus readycable® dual cable suitable for Siemens 6FX3_02-7CN01, basic cable, iguPUR 15xd
- MAT9561517 — igus Igus MAT9561517 16 AWG 4C Round Plug Socket A / Coupling…
- MAT9561521 — igus Igus MAT9561521 8 AWG 4C Round Plug Socket A / Coupling…
- MAT9561522 — igus Igus MAT9561522 8 AWG 4C Round Plug Socket A/B Connector iguPUR…
- MAT9561531 — igus Igus MAT9561531 8 AWG 4C Round Plug Socket A / Booksize…
- MAT9561535 — igus Igus MAT9561535 10 AWG 4C Round Plug Socket A / Booksize…
- MAT9561594 — igus Igus MAT9561594 16 AWG 4C Round Plug Socket A / Coupling…
- MAT9561702 — igus readycable® motor cable suitable for Allen Bradley 2090-CPWM7DF-14AFxx, base cable iguPUR…
- MAT9561716 — igus readycable® motor cable suitable for Allen Bradley 2090-XXNPMP-16SXX, base cable iguPUR…
- MAT9561717 — igus readycable® motor cable suitable for Allen Bradley 2090-XXNPMP-14SXX, base cable iguPUR…
- MAT9561718 — igus readycable® motor cable suitable for Allen Bradley 2090-XXNPMP-10SXX, base cable iguPUR…
- MAT9562501 — igus readycable® motor cable, suitable for Delta, A2P-1-.75-xx, base cable iguPUR 15…
Related Products
igus igus Igus MAT9561531 8 AWG 4C Round Plug Socket…

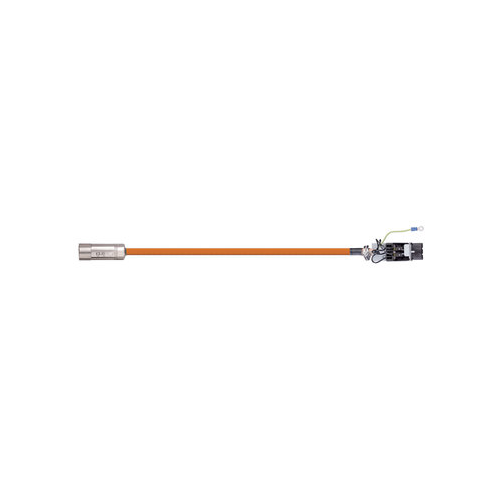

igus igus Igus MAT9561535 10 AWG 4C Round Plug Socket…
igus igus Igus MAT9561522 8 AWG 4C Round Plug Socket…
igus igus Igus MAT9561594 16 AWG 4C Round Plug Socket…

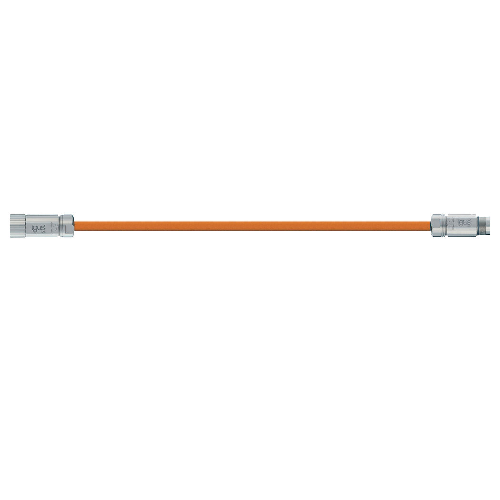

igus igus Igus MAT9561521 8 AWG 4C Round Plug Socket…
