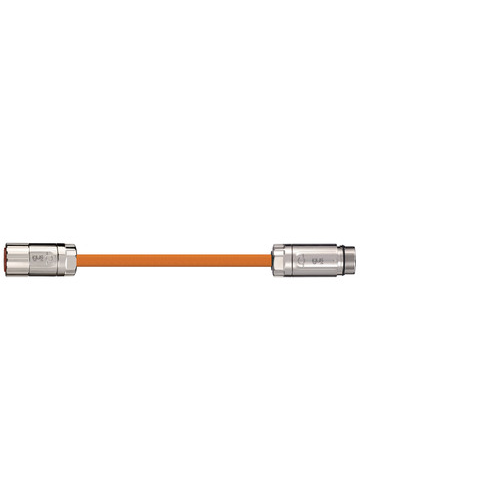

igus MAT9297080 — Extension Cable
igus Igus MAT9297080 8/4C 16/2P Ordering Data Connector PVC Baumueller 326609 50A Extension Cable 1 / 1 FT
Overview
Igus MAT9297080 8/4C 16/2P Ordering Data Connector PVC Baumueller 326609 50A Extension Cable Allowable Ampacity for Igus MAT9297080 8/4C 16/2P Ordering Data Connector PVC Baumueller 326609 50A Extension Cable : 100 Amps Also Known as: Extension Cable, Igus Data Connector Cable, IGUS Cable, Ordering Data Connector Cable, Servo Cable, Ready Cable Construction: Conductor: Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228) Conductor insulation: Mechanically high-quality, especially low-capacitance TPE mixture Conductor constructionL: Power cores with control pair elements stranded with elements for high tensile stresses Conductor identification: Energy conductor: Cores black with white numerals, one core green-yellow. 1.Core: U / L1 / C / L+ 2.Core: V / L2 3.Core: W / L3 / L- 2 Signal pairs: Cores black with white numerals. 1. Signal pair: 5 2. Signal pair: 6 3. Signal pair: 7 4. Signal pair: 8 Element shield: Bending-resistant braiding made of tinned copper wires. Overall shield: Bending-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical. Unshielded: No Outer jacket: Low adhesion mixture on the basis of PUR, adapted to suit the requirements in e-chains (According to DIN EN 50363-10-2) Jacket color: Pastel orange (similar to RAL 2003) Properties and Approvals: UV resistance: Medium Oil resistance: Oil-resistant according to DIN EN 50363-10-2 Offshore: MUD-resistant following NEK 606 - status 2009 Flame retardant: According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free: Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free: Following EN 60754 UL/CSA AWM: see data sheet for details NFPA 79: Following NFPA 79-2012 chapter 12.9 EAC: Certified according to No. TC RU C-DE.ME77.B.01255 CTP: Certified to no. C-DE.PB49.B.00420 Lead free: Following 2011/65/EU (RoHS-II) CEI: Following CEI 20-35 Clean room: According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA: According to VDW, DESINA standardization CE guideline: Following 2014/35/EU Specification: Number of Conductors and AWG size: 4 C 8 AWG (10.0) | 2 STP 16 AWG (1.5) Conductor: Bare Copper Insulation: TPE Jacket: PVC Outer Diameter Max: 0.91 inch Copper Index: 397.8 lbs/mft Voltage: 1000 V Weight: 621.6 lbs/mft Part Number: MAT9297080
Specifications
| Piece | 1 |
|---|---|
| Size | 1 FT |
| Weight | 652.68 lb |
Product details
| Manufacturer | igus |
|---|---|
| Manufacturer part number | MAT9297080 |
| KKM catalog reference | IGUS-MAT9297080 |
| Product category | Extension Cable |
| Published specifications | 3 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does MAT9297080 cost?
MAT9297080 is listed at CA$410.72 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the MAT9297080?
MAT9297080 is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is MAT9297080 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for MAT9297080 — check igus's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of MAT9297080?
Key specifications include Piece: 1; Size: 1 FT; Weight: 652.68 lb. The full specification table on this page lists every published attribute for this part.
How quickly can MAT9297080 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
