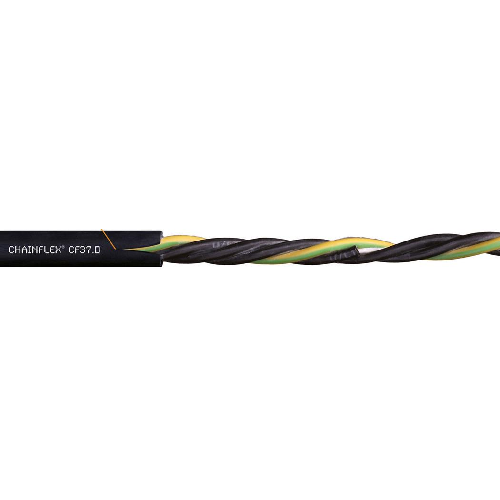

igus CF37-15-04-D — Chainflex CF37-D

Igus CF37-15-04-D 16 AWG 4C Stranded Bare Copper Unshielded TPE 600V Chainflex CF37-D Motor Cable Allowable Ampacity for Igus CF37-15-04-D 16 AWG 4C Stranded Bare Copper Unshielded TPE 600V Chainflex CF37-D Motor Cable : 100 Amps Also Known as: Control Cable, Chainflex Cable, Chainflex CF37-D Cable, CF37-D Cable, Flexible Cable, IGUS Cable, Continues-Flex Cable, Dynamic Cable, Flexing Cable, Flex Cable, Linear Motion Cable Description: Chainflex Motor Cable CF37-D Typical application areas: • For heaviest duty applications • Almost unlimited resistance to oil, also with bio-oils • Indoor and outdoor applications, UV resistant • Unsupported and gliding travel distances up to 1,312 ft (400 m) and more • Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications Construction: • Conductor: 16-10 AWG: Conductor consisting of bare copper wires (according to DIN EN60228). 8-1 AWG: Conductor cable consisting of pre-leads (following DIN EN 60228). • Conductor Insulation: Mechanically high-quality, especially low-capacitance TPE mixture • Conductor Construction: Conductors cabled with short pitch length around a high-tensile strength core • Outer Jacket: Low-adhesion mixture on the basis of TPE, especially abrasion-resistant and highly flexible, adapted to suit the requirements in E-Chains. • Color Code: Black with white numbers, one conductor green-yellow. 1. U / L1 / C / L+ 2. V / L2 3. W / L3 / D / L4. 4 / N 5. green/yellow • CFRIP: Strip 50% faster: a tear strip is molded into the outer jacket Properties and Approvals: • UV Resistance: High • Oil Resistance: Oil resistant (following DIN EN 60811-404), bio-oil resistant (following VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4 • Silicone-free: Free from silicone which can affect paint adhesion (following PV 3.10.7 – status 1992) • Halogen-free: Following DIN EN 60754 • EAC: Certificate No. RU C-DE.ME77.B.02324 (TR ZU) • Lead-free: Following 2011/65/EC (RoHS-II) • Clean Room: According to ISO Class 1. The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1 • DESINA: According to VDW, DESINA standardization. • CE: Following 2014/35/EU Specification: AWG Size: 16 Number of Conductor: 4 Rated Cross Section: 1.5 mm² Conductor: Bare Copper Insulation: TPE Jacket: TPE Shielding Type: Unshielded Outer Diameter: 0.31 inch Copper Index: 41.0 lbs/mft Voltage: 600 V Weight: 63.8 lbs/mft Part Number: CF37-15-04-D
