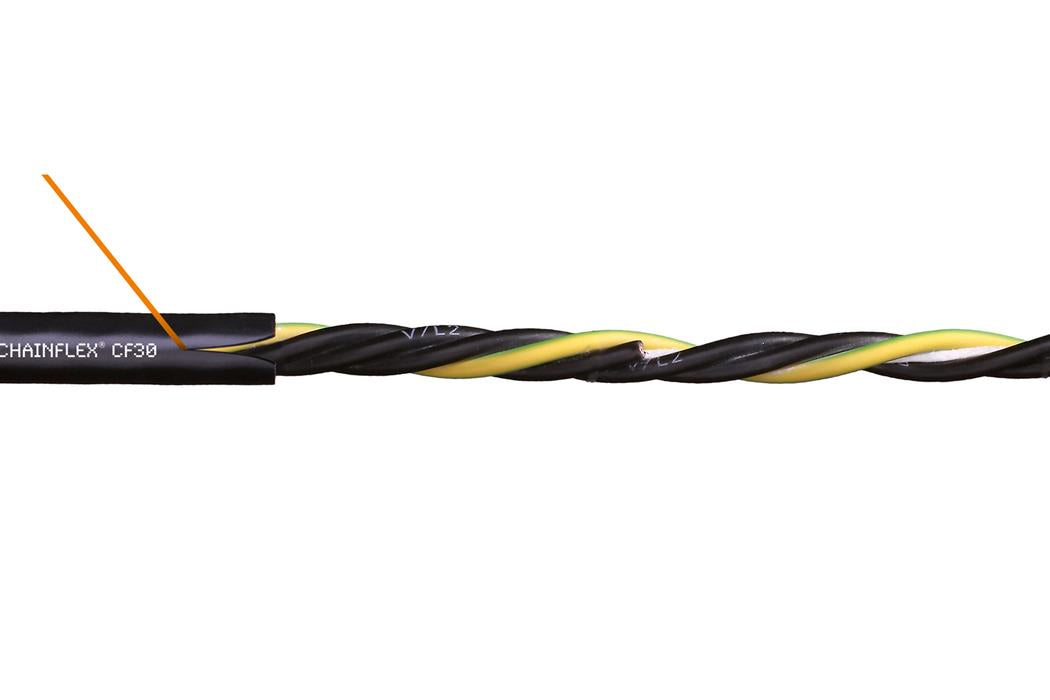

igus 4 x 4 AWG Chainflex Motor Cable CF30-250-04
Overview
General properties Number of Conductors and AWG size 4 x 4 AWG (25) Outer diameter max. 0.98 inch (25.0 mm) Copper index 681.4 lbs/mft (1,014 kg/km) Weight 887.0 lb Part Number CF30-250-04 Dynamic information Min. bend radius, e-chain® (factor) 7.5 x d Min. bend radius, e-chain® 7.5 inch (191.3 mm) Min. bend radius, flexible (factor) 6.0 x d Min. bend radius, flexible 6.0 inch (153.0 mm) Min. bend radius, fixed (factor) 4.0 x d Min. bend radius, fixed (factor) 4.0 inch (102.0 mm) Temperature, e-chain® min. 41 °F (5 °C) Temperature, e-chain® max. 158 °F (70 °C) Temperature, flexible +23 °F to +158 °F (-5°C to +70°C) Temperature, fixed +5 °F to +158 °F (-15 °C to +70 °C) v max., unsupported 33 ft/s (10 m/s) v max. gliding 16 ft/s (5 m/s) a. max. 262.5 ft/s² (80 m/s²) Length of travel Travels up to 328 ft (100 m) Torsion ±90°, with 1 m cable length 4 x 4 AWG Chainflex Motor Cable CF30-250-04 Description • For heavy duty applications • Light oil influence • Preferably indoor applications, but also outdoor ones at temperatures > 41.0 °F (5 °C) • Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications • Storage and retrieval units for high-bay warehouses, machining units/packaging machines, quick handling, indoor cranes Features • Variable Frequency Drive (VFD) • Requirements: For heavy duty applications • Outer jacket: PVC • Flame retardant • Silicone-free • UV resistance: Medium • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
Specifications
| Weight | 8.87 lb |
|---|
Product details
| Manufacturer | igus |
|---|---|
| Manufacturer part number | CF30-250-04 |
| KKM catalog reference | IGUS-CF30-250-04 |
| Product category | Chainflex Data Cable |
| Published specifications | 1 attribute listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does CF30-250-04 cost?
CF30-250-04 is listed at CA$29.14 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the CF30-250-04?
CF30-250-04 is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is CF30-250-04 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for CF30-250-04 — check igus's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can CF30-250-04 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
