igus 0.28 O.D. Chainflex Servo Motor Feedback Cable CF211-024
Overview
General properties Number of Conductors and AWG size 4 C x 26 AWG (0.14) | 2 PR x 22 AWG (0.34) Outer diameter max. 0.28 inch (7.0 mm) Color Code yellow/grey/violet/pink white-green/white, brown-green/blue Copper index 24.2 lbs/mft (36 kg/km) Weight 41.0 lb Part Number CF211-024 Dynamic information Min. bend radius, e-chain® (factor) 10.0 x d Min. bend radius, e-chain® 3.1 inch (80.0 mm) Min. bend radius, flexible (factor) 8.0 x d Min. bend radius, flexible 2.5 inch (64.0 mm) Min. bend radius, fixed (factor) 5.0 x d Min. bend radius, fixed (factor) 1.6 inch (40.0 mm) Temperature, e-chain® min. 41 °F (5 °C) Temperature, e-chain® max. 158 °F (70 °C) Temperature, flexible +23 °F to +158 °F (-5°C to +70°C) Temperature, fixed +5 °F to +158 °F (-15 °C to +70 °C) v max., unsupported 16 ft/s (5 m/s) v max. gliding 10 ft/s (3 m/s) a. max. 98.4 ft/s² (30 m/s²) Length of travel Unsupported up to 33 ft (10 m) 0.28 O.D. Chainflex Servo Motor Feedback Cable CF211-024 Description • Typical application areas • For medium duty use • Light oil influence • Preferably indoor applications, but also outdoor ones at temperatures > 41.0 °F (5 °C) • Unsupported travel distances and up to 32.81 ft (10 m) for gliding applications Storage and retrieval units for high-bay warehouses, machining units/packaging machines, handling, indoor cranes, wood/stone processing Features • Requirements: For medium duty applications • Outer jacket: PVC • Oil resistance: Oil-resistant according to DIN EN 50363-4-1 • Silicone-free • Flame retardant
Specifications
| Weight | 0.41 lb |
|---|
Product details
| Manufacturer | igus |
|---|---|
| Manufacturer part number | CF211-024 |
| KKM catalog reference | IGUS-CF211-024 |
| Product category | Servo Motor Feedback Cable |
| Published specifications | 1 attribute listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does CF211-024 cost?
CF211-024 is listed at CA$4.62 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the CF211-024?
CF211-024 is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is CF211-024 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for CF211-024 — check igus's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can CF211-024 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other igus part numbers in this family:
- CF211-001 — igus 0.35 O.D. Chainflex Servo Motor Feedback Cable CF211-001
- CF211-014 — igus 0.41 O.D. Chainflex Servo Motor Feedback Cable CF211-014
- CF211-018 — igus 0.26 O.D. Chainflex Servo Motor Feedback Cable CF211-018
- CF211-019 — igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF211-019
- CF211-02-01-02-1 — igus continuous flexing control and signal cable - CF211-02-01-02-1
- CF211-02-02-02-1 — igus continuous flexing control and signal cable - CF211-02-02-02-1
- CF211-02-04-02-1 — igus continuous flexing control and signal cable - CF211-02-04-02-1
- CF211-022 — igus 0.28 O.D. Chainflex Servo Motor Feedback Cable CF211-022
- CF211-027 — igus 0.31 O.D. Chainflex Servo Motor Feedback Cable CF211-027
- CF211-028 — igus 0.30 O.D. Chainflex Servo Motor Feedback Cable CF211-028
- CF211-03-03-02-1 — igus continuous flexing control and signal cable - CF211-03-03-02-1
- CF211-032 — igus 0.31 O.D. Chainflex Servo Motor Feedback Cable CF211-032
- CF211-033 — igus 0.37 O.D. Chainflex Servo Motor Feedback Cable CF211-033
- CF211-036 — igus 0.31 O.D. Chainflex Servo Motor Feedback Cable CF211-036
- CF211-05-04-02-1 — igus continuous flexing control and signal cable - CF211-05-04-02-1
- CF211-P-05-04-02-1 — igus continuous flexing control and signal cable - CF211-P-05-04-02-1
Related Products
igus igus 0.28 O.D. Chainflex Servo Motor Feedback Cable CF211-022
igus igus 0.31 O.D. Chainflex Servo Motor Feedback Cable CF211-027
igus igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF211-019

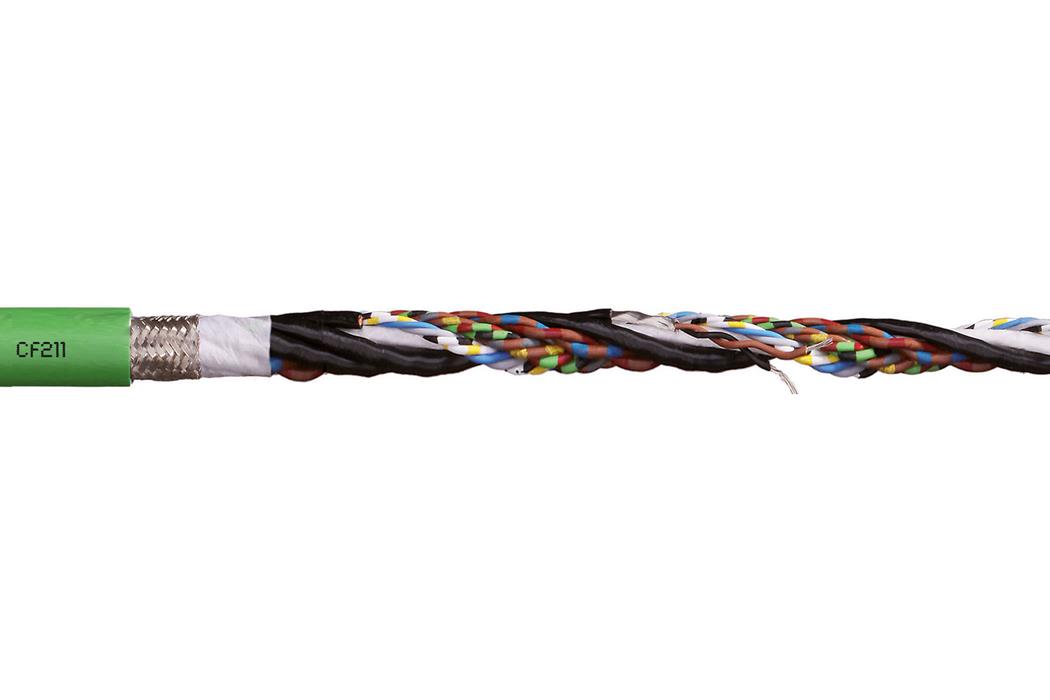

igus igus 0.30 O.D. Chainflex Servo Motor Feedback Cable CF211-028
