igus 7 x 16 AWG Chainflex Control Cable CF160-UL-15-07
Overview
General properties Number of Conductors and AWG size 7 x 16 AWG (1.5) Outer diameter max. 0.53 inch (13.5 mm) Copper index 94.1 lbs/mft (140 kg/km) Weight 182.1 lb Part Number CF160-UL-15-07 Dynamic information Temperature, e-chain® min. 41 °F (5 °C) Temperature, e-chain® max. 158 °F (70 °C) Temperature, flexible +23 °F to +158 °F (-5°C to +70°C) Temperature, fixed +5 °F to +158 °F (-15 °C to +70 °C) v max., unsupported 10 ft/s (3 m/s) v max. gliding 7 ft/s (2 m/s) a. max. 65.6 ft/s² (20 m/s²) Length of travel Travels up to 164 ft (50 m) 7 x 16 AWG Chainflex Control Cable CF160-UL-15-07 Description • Flame-retardant: FT4 • UL Tray cable for exposed run • For extreme heavy-duty use • Almost unrestricted oil resistance, even with organic oils • Indoor and outdoor applications, UV-resistant • Especially for unsupported and gliding travels up to 400m or more • Storage and retrieval units, machining/tooling machines, fast handling, cleanrooms, • semiconductor assembly, ship to shore, outdoor cranes, freezing temperature application Features • Requirements: For medium duty applications • Outer jacket: PVC • Overall shield • Flame retardant • Silicone-free • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
Specifications
| Weight | 1.821 lb |
|---|
Product details
| Manufacturer | igus |
|---|---|
| Manufacturer part number | CF160-UL-15-07 |
| KKM catalog reference | IGUS-CF160-UL-15-07 |
| Product category | Chainflex Control Cable |
| Published specifications | 1 attribute listed |
| Related part numbers | 13 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does CF160-UL-15-07 cost?
CF160-UL-15-07 is listed at CA$10.28 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the CF160-UL-15-07?
CF160-UL-15-07 is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is CF160-UL-15-07 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for CF160-UL-15-07 — check igus's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can CF160-UL-15-07 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other igus part numbers in this family:
- CF160-UL-10-03 — igus 3 x 17 AWG Chainflex Control Cable CF160-UL-10-03
- CF160-UL-10-04 — igus 4 x 17 AWG Chainflex Control Cable CF160-UL-10-04
- CF160-UL-10-05 — igus 5 x 17 AWG Chainflex Control Cable CF160-UL-10-05
- CF160-UL-10-07 — igus 7 x 17 AWG Chainflex Control Cable CF160-UL-10-07
- CF160-UL-10-18 — igus 18 x 17 AWG Chainflex Control Cable CF160-UL-10-18
- CF160-UL-15-03 — igus 3 x 16 AWG Chainflex Control Cable CF160-UL-15-03
- CF160-UL-15-04 — igus 4 x 16 AWG Chainflex Control Cable CF160-UL-15-04
- CF160-UL-15-05 — igus 5 x 16 AWG Chainflex Control Cable CF160-UL-15-05
- CF160-UL-15-18 — igus 18 x 16 AWG Chainflex Control Cable CF160-UL-15-18
- CF160-UL-25-04 — igus 4 x 14 AWG Chainflex Control Cable CF160-UL-25-04

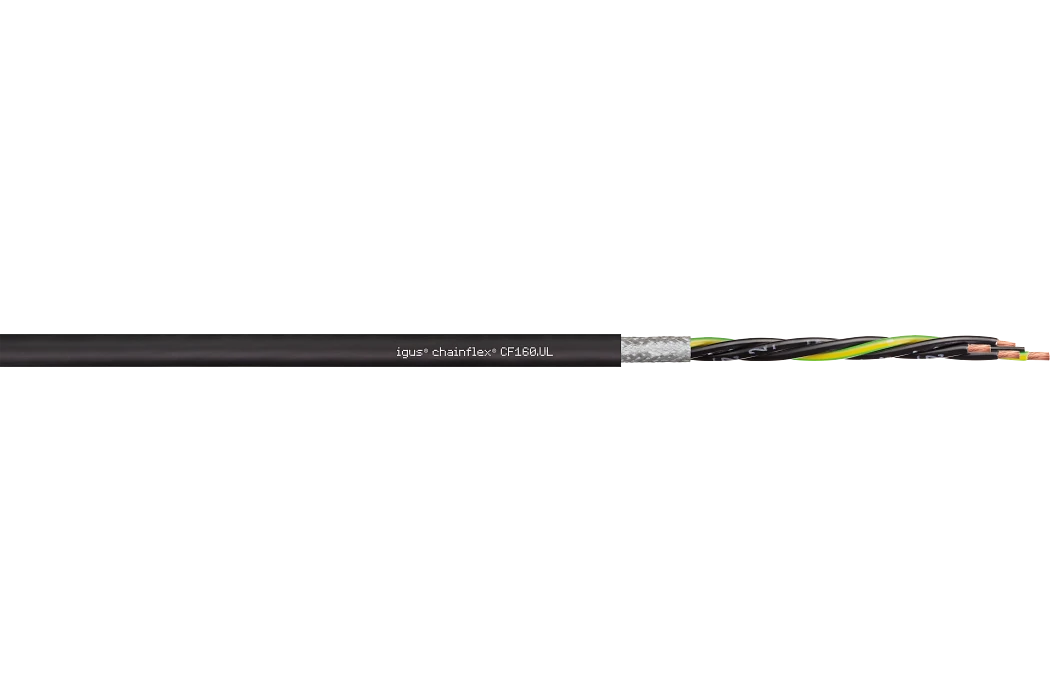

- CF160-UL-25-05 — igus 5 x 14 AWG Chainflex Control Cable CF160-UL-25-05
