igus 0.35 O.D. Chainflex Servo Motor Feedback Cable CF113-027-D
Overview
General properties Number of Conductors and AWG size 5 PR x 26 AWG (0.14) | 2C x 20 AWG (0.50) Outer diameter max. 0.35 inch (9.0 mm) Copper index 34.9 lbs/mft (52 kg/km) Part Number CF113-027-D Dynamic information Min. bend radius (factor) 7.5 x d Min. bend radius 2.7 inch (67.5 mm) Min. bend radius Factor 6.0 x d Min. bend radius F lexible 2.1 inch (54.0 mm) Min. bend radius, fixed (factor) 4.0 x d Min. bend radius, fixed 1.4 inch (36.0 mm) Temperature, e-chain® min. -13 °F (-25 °C) Temperature, e-chain® max. 176 °F (80 °C) Temperature, flexible -40 °F to +176 °F (-20 °C to +80 °C) Temperature, fixed -58°F to +176°F (-50°C to +80°C) v max., unsupported 33 ft/s (10 m/s) v max. gliding 16 ft/s (5 m/s) a. max. 164.0 ft/s² (50 m/s²) Length of travel Travels up to 328 ft (100 m) 0.35 O.D. Chainflex Servo Motor Feedback Cable CF113-027-D Description The Stranded conductor in especially bending-resistant version consisting of tinned copper wires. Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical. Features • Requirements: For extremely heavy duty applications • Outer jacket: PUR • Oil resistance: Oil-resistant according to DIN EN 50363-10-2 • Halogen-free • Silicone-free • Flame retardant • Offshore • Coolant resistant • Hydrolysis and microbe-resistant • Overall shield • Notch-resistant • PVC-free Application • For heavy duty applications • Almost unlimited resistance to oil • Indoor and outdoor applications without direct solar radiation • Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications • Storage and retrieval units for high-bay warehouses, machining units/machine tools quick handling, cleanroom, semiconductor insertion, ship to shore, outdoor cranes, low- temperature applications
Specifications
| Weight | 70.6 lb |
|---|
Product details
| Manufacturer | igus |
|---|---|
| Manufacturer part number | CF113-027-D |
| KKM catalog reference | IGUS-CF113-027-D |
| Product category | Chainflex Servo Motor |
| Published specifications | 1 attribute listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does CF113-027-D cost?
CF113-027-D is listed at CA$7.08 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the CF113-027-D?
CF113-027-D is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is CF113-027-D discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for CF113-027-D — check igus's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can CF113-027-D ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other igus part numbers in this family:
- CF113-001-D — igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF113-001-D
- CF113-007-D — igus 0.26 O.D. Chainflex Servo Motor Feedback Cable CF113-007-D
- CF113-013-D — igus 0.35 O.D. Chainflex Servo Motor Feedback Cable CF113-013-D
- CF113-016-D — igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF113-016-D
- CF113-017-D — igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF113-017-D
- CF113-018-D — igus 0.26 O.D. Chainflex Servo Motor Feedback Cable CF113-018-D
- CF113-019-D — igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF113-019-D
- CF113-022-D — igus 0.31 O.D. Chainflex Servo Motor Feedback Cable CF113-022-D
- CF113-025-D — igus 0.39 O.D. Chainflex Servo Motor Feedback Cable CF113-025-D
- CF113-028-D — igus 0.30 O.D. Chainflex Servo Motor Feedback Cable CF113-028-D
- CF113-029-D — igus 0.47 O.D. Chainflex Servo Motor Feedback Cable CF113-029-D

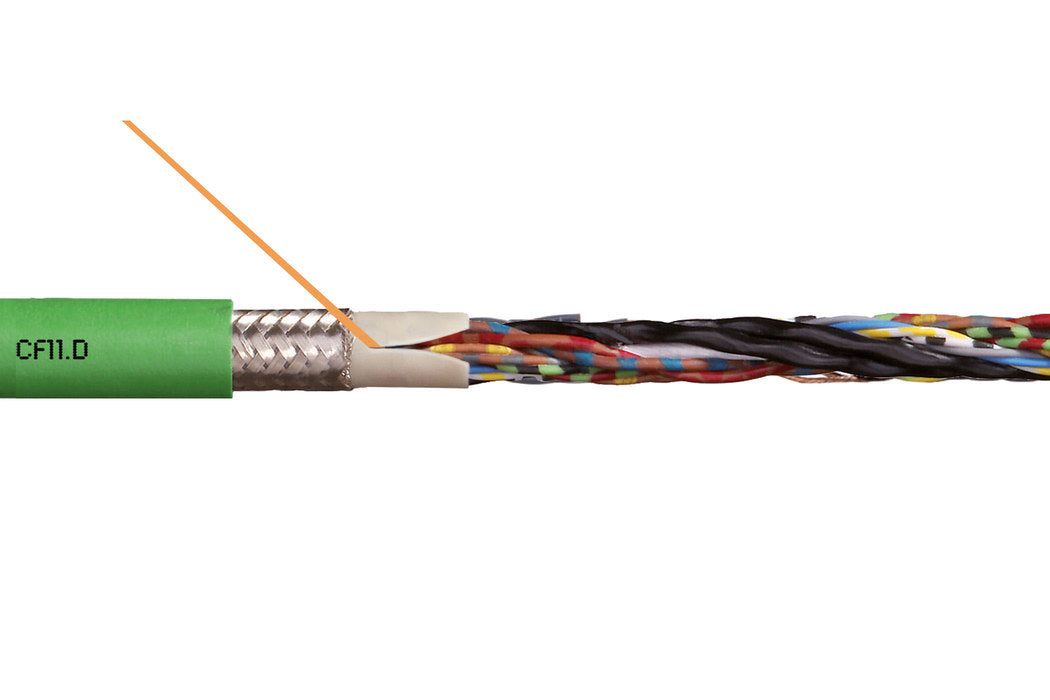

- CF113-031-D — igus 0.37 O.D. Chainflex Servo Motor Feedback Cable CF113-031-D
