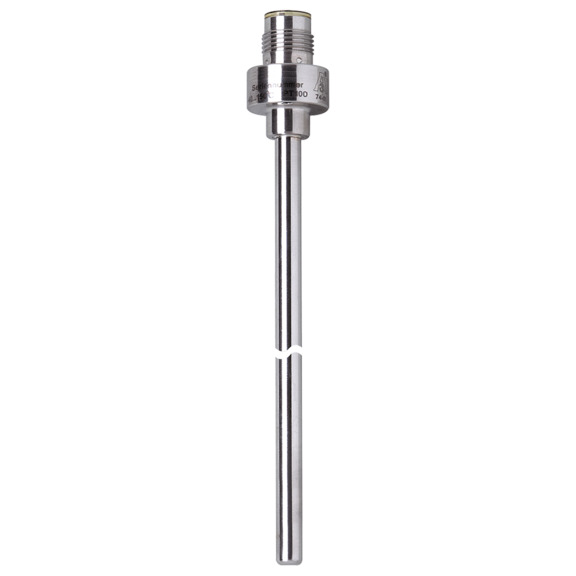

TT6281 IFM Temperature probe sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM TT6281 - Temperature probe sensor - Material: stainless steel (1.4404 / 316L); Storage Temperature: -40...100.
Overview
Part number TT6281 from IFM, listed in Temperature Sensors. Specifications on file: Accuracy ± (0,15 K + 0,002 x|t|); Ambient temperature -25...80; Dimensions Ø 6 / L = 324; Dynamic response T05 / T09 1 / 3; (according to DIN EN 60751). KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM TT6281 is a Temperature probe sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: stainless steel (1.4404 / 316L).
Precise temperature measurement in containers, tanks and pipes; For the connection to an evaluation unit; Very short response time for use in processes with fast temperature fluctuations; Robust stainless steel housing with high protection rating and high pressure resistance; Variable process connection using adapters
Key manufacturer data on file for this item includes Storage Temperature: -40...100; Ambient temperature: -25...80; Connector: 1 x M12; coding: A; Contacts: 4, gold-plated; Protection class: III; Dimensions: Ø 6 / L = 324; Product type: Temperature probe sensor; Accuracy: ± (0,15 K + 0,002 x|t|); Special Feature: gold-plated contacts; Process Connection: Clamp fitting Ø 6 mm; Housing: tubular; Media: liquids and gases; Measuring element: 1 x Pt 100; (to DIN EN 60751, class A). The complete technical table is shown in the Specifications tab on this page.
Specifications
| Accuracy | ± (0,15 K + 0,002 x|t|) |
|---|---|
| Ambient temperature | -25...80 |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated |
| Dimensions | Ø 6 / L = 324 |
| Dynamic response T05 / T09 | 1 / 3; (according to DIN EN 60751) |
| Housing | tubular |
| Installation length EL | 300 |
| Key Features | Precise temperature measurement in containers, tanks and pipes; For the connection to an evaluation unit; Very short response time for use in processes with fast temperature fluctuations; Robust stainless steel housing with high protection rating and high pressure resistance; Variable process connection using adapters |
| Material | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) |
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Minimum installation depth | 15 |
| MTTF | 22831 |
| Pack quantity | 1 pcs. |
| Probe diameter | 6 |
| Probe length (L) | 300 |
| Process Connection | Clamp fitting Ø 6 mm |
| Product type | Temperature probe sensor |
| Protection | IP 68; IP 69K |
| Protection class | III |
| Special Feature | gold-plated contacts |
| Specification Summary | Temperature sensor for connection to evaluation units; 1 x Pt 100; (to DIN EN 60751, class A); Installation length EL 300 mm; Measuring range -40...150 °C; -40...302 °F; Pressure rating 160 bar; Clamp fitting Ø 6 mm; M12 Connector |
| Storage Temperature | -40...100 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | TT6281 |
| Product category | Temperature Sensors |
| Published specifications | 24 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for TT6281?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TT6281?
TT6281 is made by IFM and is listed in our Temperature Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number TT6281, and the quote confirms condition and lead time before you order.
Is the TT6281 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the TT6281, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of TT6281?
No published lifecycle status is on file for TT6281. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of TT6281?
Key specifications include Accuracy: ± (0,15 K + 0,002 x|t|); Ambient temperature: -25...80; Connector: 1 x M12; coding: A; Contacts: 4, gold-plated; Dimensions: Ø 6 / L = 324. The full specification table on this page lists every published attribute for this part.
What material is TT6281 made of?
Per the published specification for TT6281: Material: stainless steel (1.4404 / 316L). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can TT6281 ship?
Lead time for TT6281 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
