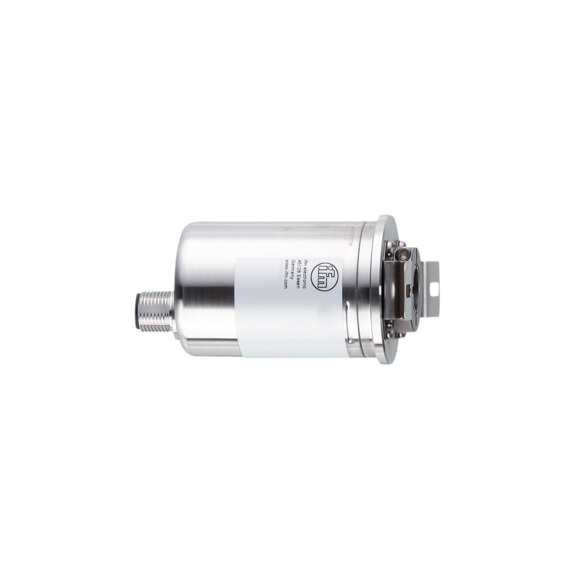

RA3110 IFM Incremental encoder with hollow shaft
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM RA3110 - Incremental encoder with hollow shaft - Storage Temperature: -40...85; Ambient temperature: -40...85.
Overview
Part number RA3110 from IFM, listed in Rotary Encoders. Specifications on file: Accuracy 0.1; Ambient temperature -40...85; Communication interface IO-Link; Detection system magnetic. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM RA3110, a part number in the Incremental encoder with hollow shaft category. The manufacturer's published data for this part number specifies Storage Temperature: -40...85.
flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L)
The specification set recorded for this part number covers Ambient temperature: -40...85; Shaft Diameter: 12; Tightening torque: < 0.7; (Mounting screw); Protection class: III; Dimensions: Ø 42 / L = 79.5; Product type: Incremental encoder with hollow shaft; Switching frequency: 1000; Accuracy: 0.1; Communication interface: IO-Link; Operating voltage: 4.75...30 DC; Current consumption: < 150; Reverse polarity protection: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Accuracy | 0.1 |
|---|---|
| Ambient temperature | -40...85 |
| Communication interface | IO-Link |
| Connector | 1 x M12, axial; coding: A; Contacts: 5; Moulded body: stainless steel (1.4401 / 316) |
| Detection system | magnetic |
| Dimensions | Ø 42 / L = 79.5 |
| Electrical design | HTL/TTL |
| Fixing flange | Ø 42 mm |
| Function principle | incremental |
| Housing | tubular |
| Installation depth/shaft | 22 |
| IO-Link revision | 1.1 |
| Key Features | Defined pulse sequence for the reliable detection of rotational speeds; High shock and vibration resistance; Resolution freely programmable from 1 ... 10,000 |
| Material | flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L) |
| Max. axial shaft misalignment | 0,5 |
| Max. power-on delay time | 500 |
| Max. relative air humidity | 95; (Condensation not permissible) |
| Max. revolution electrical | 6000 |
| Max. revolution, mechanical | 6000 |
| Max. starting torque | 0.05 |
| Min. process cycle time | 2.3 |
| MTTF | 292 |
| Operating voltage | 4.75...30 DC |
| Pack quantity | 1 pcs. |
| Parameter setting options | Resolution; Direction of rotation; HTL; TTL |
| Phase difference A und B | 90 |
| Product type | Incremental encoder with hollow shaft |
| Protection | IP 68; IP 69K |
| Protection class | III |
| Reference temperature torque | 20 |
| Resolution | 1...10000; (configurable; Factory setting: 1024) resolution |
| Reverse polarity protection | yes |
| Revolution type | incremental /singleturn |
| Shaft design | hollow shaft open to one side |
| Shaft Diameter | 12 |
| Short circuit protection | yes |
| SIO mode | yes |
| Specification Summary | Hollow shaft encoder open to one side; Shaft diameter 12 mm; Resolution 1...10000; IO-Link; M12 Connector |
| Storage Temperature | -40...85 |
| Switching frequency | 1000 |
| Transmission type | COM2 (38,4 kBaud) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | RA3110 |
| Product category | Rotary Encoders |
| Published specifications | 41 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for RA3110?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the RA3110?
RA3110 is made by IFM and is listed in our Rotary Encoders category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number RA3110, and the quote confirms condition and lead time before you order.
Is the RA3110 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the RA3110, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of RA3110?
No published lifecycle status is on file for RA3110. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of RA3110?
Key specifications include Accuracy: 0.1; Ambient temperature: -40...85; Communication interface: IO-Link; Connector: 1 x M12, axial; coding: A; Contacts: 5; Moulded body: stainless steel (1.4401 / 316). The full specification table on this page lists every published attribute for this part.
What is the bore size of RA3110?
Per the published specification for RA3110: Shaft Diameter: 12. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What voltage does RA3110 use?
Per the published specification for RA3110: Operating voltage: 4.75...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is RA3110 made of?
Per the published specification for RA3110: Material: flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can RA3110 ship?
Lead time for RA3110 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
