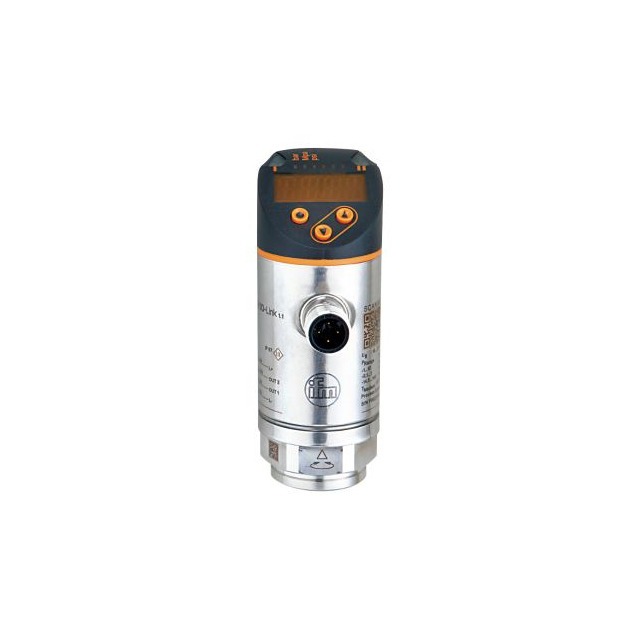

ifm PN3002 pressure sensor
IFM PN3002 - Sensors - Weight: 261; Storage Temperature: -40...100; Ambient temperature: -20...80.
This listing covers the IFM PN3002, a part number in the Sensors category. The manufacturer's published data for this part number specifies Weight: 261 and Storage Temperature: -40...100.
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM
Published specifications for this part include Ambient temperature: -20...80; Connector: 1 x M12; coding: A; Contacts: gold-plated; Protection class: III; Dimensions: Ø 34 / L = 91.5; Number of digital outputs: 1; Application: for industrial applications; Output signal: switching signal; analog signal; (configurable); Product type: Pressure sensor with display; Operating voltage: 18...36 DC; (to SELV/PELV); Current consumption: < 50; Reverse polarity protection: yes; Max. load: 500. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -20...80 |
|---|---|
| Analog current output | 4...20 |
| Analog voltage output | 0...10 |
| Application | for industrial applications |
| Characteristics deviation | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Conditionally suitable for | use in gases at pressures > 25 bar only on request |
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
| Current consumption | < 50 |
| Delay time programmable dS, dr | 0; 0,2...50 |
| Dimensions | Ø 34 / L = 91.5 |
| Electrical design | PNP |
| Housing | tubular |
| Hysteresis deviation | < ± 0,25 |
| Integrated watchdog | yes |
| Key Features | With programmable switching output and analog output; Clearly visible numerical display; Country-specific pressure units selectable; With long-term stability thanks to high overload protection; High shock and vibration resistance |
| Long term stability | < ± 0,05; (per 6 months) |
| Material | stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM |
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM |
| Max. load | 500 |
| Max. response time analog output | 3 |
| Max. voltage drop switching output DC | 2 |
| Media | liquids and gases |
| Medium temperature | -25...80 |
| Min. insulation resistance | 100; (500 V DC) |
| Min. load resistance | 2000 |
| Min. pressure cycles | 100 million |
| MTTF | 213 |
| Number of analog outputs | 1 |
| Number of digital outputs | 1 |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
| Operating voltage | 18...36 DC; (to SELV/PELV) |
| Output function | normally open / closed; (configurable) |
| Output signal | switching signal; analog signal; (configurable) |
| Overvoltage protection | yes; (< 40 V) |
| Pack quantity | 1 pcs. |
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
| Permanent current rating of switching output DC | 250 |
| Power-on delay time | 0.3 |
| Process Connection | threaded connection G 1/4 Internal thread |
| Product type | Pressure sensor with display |
| Protection | IP 67 |
| Protection class | III |
| Repeatability | < ± 0,1; (with temperature fluctuations < 10 K) |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Electronic pressure sensor; 0...100 bar; 0...1450 psi; 0...10 MPa; G 1/4 Internal thread; switching signal; analog signal; 4...20 mA; 0...10 V; Connector; -25...80 °C; IP 67; relative pressure |
| Storage Temperature | -40...100 |
| Switch point accuracy | < ± 0,5 |
| Switching frequency DC | < 170 |
| Temperature coefficient span | 0,2; (-20...80 °C) |
| Temperature coefficient zero point | 0,2; (-20...80 °C) |
| Total number of outputs | 2 |
| Type of pressure | relative pressure |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 261 |
