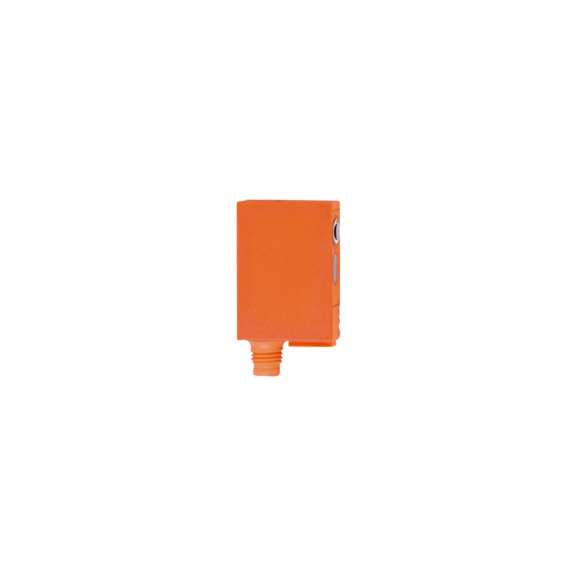

OJ5071 IFM Diffuse reflection sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM OJ5071 - Diffuse reflection sensor - Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS; Ambient temperature: -25...60.
Overview
Part number OJ5071 from IFM, listed in Photoelectric Sensors. Specifications on file: Ambient temperature -25...60; Connector 1 x M8; coding: A; Contacts: 4; Dimensions 35 x 11 x 24; Electrical design PNP. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM OJ5071 is a Diffuse reflection sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS.
Particularly compact housing for use in robotics, assembly and handling technology; Intuitive setting of sensitivity and output function; Very long range; LED display to check operation, switching status and function; Easy mounting by clipping onto a mounting base
Published specifications for this part include Ambient temperature: -25...60; Connector: 1 x M8; coding: A; Contacts: 4; Protection class: III; Dimensions: 35 x 11 x 24; Application: For applications in robotics, assembly and handling technology; Product type: Diffuse reflection sensor; Operating voltage: 10...30 DC; Current consumption: < 32; Reverse polarity protection: yes; Range: 1...1000; (white paper 200 x 200 mm 90 % remission); Overload protection: yes; Output function: light-on/dark-on mode; (programmable). See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...60 |
|---|---|
| Application | For applications in robotics, assembly and handling technology |
| Connector | 1 x M8; coding: A; Contacts: 4 |
| Dimensions | 35 x 11 x 24 |
| Electrical design | PNP |
| Electronic lock | yes |
| Function principle | Diffuse reflection sensor |
| Housing | rectangular |
| Key Features | Particularly compact housing for use in robotics, assembly and handling technology; Intuitive setting of sensitivity and output function; Very long range; LED display to check operation, switching status and function; Easy mounting by clipping onto a mounting base |
| Lens alignment | Side sensing |
| Light spot dimensions refer to | at maximum range |
| Material | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Max. light spot diameter | 150 |
| Max. voltage drop switching output DC | 2.5 |
| MTTF | 851 |
| Operating voltage | 10...30 DC |
| Output function | light-on/dark-on mode; (programmable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Diffuse reflection sensor |
| Protection | IP 67 |
| Protection class | III |
| Range | 1...1000; (white paper 200 x 200 mm 90 % remission) |
| Range adjustable | yes |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Diffuse reflection sensor; Infrared light; light-on/dark-on mode; (programmable); PNP; 1000 mm; IP 67; M8 Connector |
| Switching frequency DC | 2000 |
| Type of light | Infrared light |
| Type of short-circuit protection | yes (non-latching) |
| Wave length | 880 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | OJ5071 |
| Product category | Photoelectric Sensors |
| Published specifications | 32 attributes listed |
| Related part numbers | 18 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for OJ5071?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the OJ5071?
OJ5071 is made by IFM and is listed in our Photoelectric Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number OJ5071, and the quote confirms condition and lead time before you order.
Is the OJ5071 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the OJ5071, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of OJ5071?
No published lifecycle status is on file for OJ5071. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of OJ5071?
Key specifications include Ambient temperature: -25...60; Application: For applications in robotics, assembly and handling technology; Connector: 1 x M8; coding: A; Contacts: 4; Dimensions: 35 x 11 x 24. The full specification table on this page lists every published attribute for this part.
What voltage does OJ5071 use?
Per the published specification for OJ5071: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of OJ5071?
Per the published specification for OJ5071: Permanent current rating of switching output DC: 200. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is OJ5071 made of?
Per the published specification for OJ5071: Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can OJ5071 ship?
Lead time for OJ5071 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
