O3M161 IFM 3D sensor for mobile applications
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM O3M161 - 3D sensor for mobile applications - Material: housing: diecast aluminium; disc: gorilla glass; Storage Temperature: -40...105.
Overview
Part number O3M161 from IFM, listed in Vision, Measurement & Identification. Specifications on file: Ambient temperature -40...85; Angle of aperture 3D 95 x 32; Application output of 3D image data; Communication interface CAN; Ethernet. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the O3M161 from IFM is listed under the 3D sensor for mobile applications category. The manufacturer's published data for this part number specifies Material: housing: diecast aluminium; disc: gorilla glass.
Reliable 3D detection of scenes and objects; Suited for use in mobile machines; Reliable distance measurement due to time-of-flight measurement; Compact and robust housing; Long range up to 35 m
The specification set recorded for this part number covers Storage Temperature: -40...105; Ambient temperature: -40...85; Protocol: CANopen; UDS; Connector: 1 x M12; coding: A; Protection class: III; Dimensions: 143.8 x 85 x 70.1; Application: output of 3D image data; Product type: 3D sensor for mobile applications; Communication interface: CAN; Ethernet; Power consumption: 3.6; Operating voltage: 9...32 DC; Transmission rate: 250 (125...1000) kBaud. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Angle of aperture 3D | 95 x 32 |
| Application | output of 3D image data |
| Communication interface | CAN; Ethernet |
| Connector | 1 x M12; coding: A |
| Dimensions | 143.8 x 85 x 70.1 |
| Image repetition frequency 3D | 25 / 33 / 50 |
| Image resolution 3D | 64 x 16 |
| Image sensor | PMD 3D ToF-Chip |
| Key Features | Reliable 3D detection of scenes and objects; Suited for use in mobile machines; Reliable distance measurement due to time-of-flight measurement; Compact and robust housing; Long range up to 35 m |
| Material | housing: diecast aluminium; disc: gorilla glass |
| Max. immunity to extraneous light | 120 |
| MTTF | 78 |
| Number of CAN interfaces | 1 |
| Number of Ethernet interfaces | 1 |
| Operating voltage | 9...32 DC |
| Pack quantity | 1 pcs. |
| Parameter setting options | via PC with ifm Vision Assistant |
| Power consumption | 3.6 |
| Product type | 3D sensor for mobile applications |
| Protection | IP 67; IP 69K; (with mounted connectors or protective caps) |
| Protection class | III |
| Protocol | CANopen; UDS |
| Specification Summary | 3D sensor for mobile applications; image resolution 3D 64 x 16 Pixel; Angle of aperture 3D 95 x 32 °; DC; CAN; Ethernet; Connector |
| Storage Temperature | -40...105 |
| Transmission rate | 250 (125...1000) kBaud |
| Type of light | Infrared light |
| Usage type | Parameter setting; Data transmission |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | O3M161 |
| Product category | Vision, Measurement & Identification |
| Published specifications | 28 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for O3M161?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the O3M161?
O3M161 is made by IFM and is listed in our Vision, Measurement & Identification category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number O3M161, and the quote confirms condition and lead time before you order.
Is the O3M161 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the O3M161, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of O3M161?
No published lifecycle status is on file for O3M161. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of O3M161?
Key specifications include Ambient temperature: -40...85; Angle of aperture 3D: 95 x 32; Application: output of 3D image data; Communication interface: CAN; Ethernet. The full specification table on this page lists every published attribute for this part.
What voltage does O3M161 use?
Per the published specification for O3M161: Operating voltage: 9...32 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is O3M161 made of?
Per the published specification for O3M161: Material: housing: diecast aluminium; disc: gorilla glass. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can O3M161 ship?
Lead time for O3M161 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM 3D sensor for mobile applications - O3M151
IFM 3D sensor for mobile applications - O3M171
IFM 3D sensor for mobile applications - O3M251
IFM External illumination - O2D926

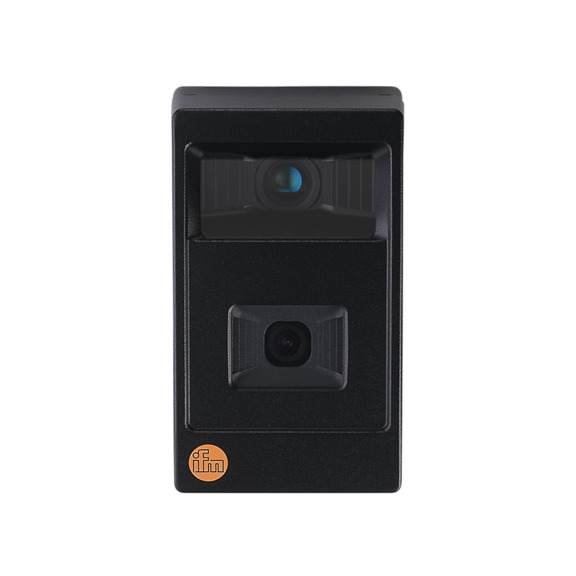

IFM 3D sensor for mobile applications - O3M261
