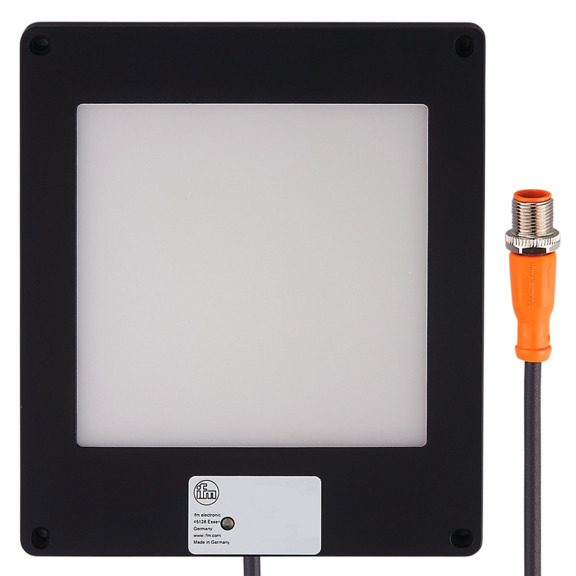

O2D944 IFM External illumination
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM O2D944 - External illumination - Material: housing: aluminum black anodized; Ambient temperature: -10...50.
Overview
Part number O2D944 from IFM, listed in Vision, Measurement & Identification. Specifications on file: Ambient temperature -10...50; Cable 0.3 m, PUR; Design backlight; Dimensions 155 x 133 x 9.8. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM O2D944, a part number in the External illumination category. The manufacturer's published data for this part number specifies Material: housing: aluminum black anodized.
Powerful permanent light for contour and position verification; Longer life through pulse operation; Homogeneous illumination with red or infrared light; Versions with three different illuminated area sizes; Space-saving design thanks to ultra-flat housing
Key manufacturer data on file for this item includes Ambient temperature: -10...50; Connector: 1 x M12; coding: A; Contacts: gold-plated; Protection class: III; Dimensions: 155 x 133 x 9.8; Product type: External illumination; Cable: 0.3 m, PUR; Operating voltage: 24 DC; Current consumption: < 410; Reverse polarity protection: yes; Design: backlight; Overload protection: yes; Special Feature: gold-plated contacts. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -10...50 |
|---|---|
| Cable | 0.3 m, PUR |
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
| Design | backlight |
| Dimensions | 155 x 133 x 9.8 |
| Illuminated field | 100 x 100 |
| Key Features | Powerful permanent light for contour and position verification; Longer life through pulse operation; Homogeneous illumination with red or infrared light; Versions with three different illuminated area sizes; Space-saving design thanks to ultra-flat housing |
| Material | housing: aluminum black anodized |
| MTTF | 292 |
| Operating voltage | 24 DC |
| Operating voltage tolerance | -10...10 |
| Overheat protection | yes; (> 50 °C) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Photobiological safety | exempt group; (EN 62471) |
| Product type | External illumination |
| Protection | IP 54 |
| Protection class | III |
| Reverse polarity protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Illumination unit; 155 x 133 x 9.8 mm; red light; Cable with connector |
| Trigger | 5...24 V |
| Type of light | red light |
| Type of operation | Permanent light or pulse operation |
| Wave length | 617 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | O2D944 |
| Product category | Vision, Measurement & Identification |
| Published specifications | 25 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for O2D944?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the O2D944?
O2D944 is made by IFM and is listed in our Vision, Measurement & Identification category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number O2D944, and the quote confirms condition and lead time before you order.
Is the O2D944 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the O2D944, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of O2D944?
No published lifecycle status is on file for O2D944. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of O2D944?
Key specifications include Ambient temperature: -10...50; Cable: 0.3 m, PUR; Connector: 1 x M12; coding: A; Contacts: gold-plated; Design: backlight. The full specification table on this page lists every published attribute for this part.
What voltage does O2D944 use?
Per the published specification for O2D944: Operating voltage: 24 DC; Operating voltage tolerance: -10...10. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is O2D944 made of?
Per the published specification for O2D944: Material: housing: aluminum black anodized. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can O2D944 ship?
Lead time for O2D944 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
