MS5013 IFM Magnetic sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.

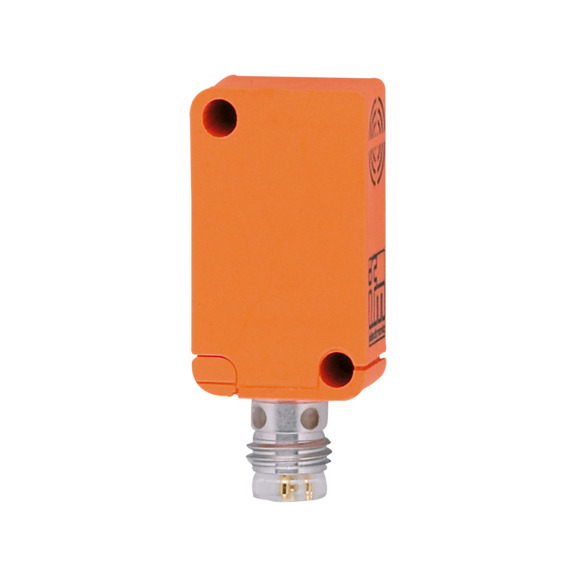

IFM MS5013 - Magnetic sensor - Material: housing: PBT orange; Ambient temperature: -25...75.
Overview
Part number MS5013 from IFM, listed in Magnetic & Cylinder Sensors. Specifications on file: Ambient temperature -25...75; Dimensions 36.8 x 10.2 x 16; Electrical design PNP; Housing rectangular. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the MS5013 from IFM is listed under the Magnetic sensor category. The manufacturer's published data for this part number specifies Material: housing: PBT orange.
Long sensing range of 60 mm; High switching frequency for fast processes; Flush or non-flush mountable in non-magnetizable metals; Wide operating temperature range; Compact housing for use where space is restricted
Published specifications for this part include Ambient temperature: -25...75; Connector: 1 x M8; coding: A; Contacts: 3, gold-plated; Protection class: III; Dimensions: 36.8 x 10.2 x 16; Product type: Magnetic sensor; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 60; (referred to magnet M 4.0); Overload protection: yes; Special Feature: gold-plated contacts; Output function: normally closed. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...75 |
|---|---|
| Connector | 1 x M8; coding: A; Contacts: 3, gold-plated |
| Dimensions | 36.8 x 10.2 x 16 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...10 |
| Key Features | Long sensing range of 60 mm; High switching frequency for fast processes; Flush or non-flush mountable in non-magnetizable metals; Wide operating temperature range; Compact housing for use where space is restricted |
| Material | housing: PBT orange |
| Max. voltage drop switching output DC | 2.5 |
| MTTF | 2847 |
| Operating voltage | 10...30 DC |
| Output function | normally closed |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Magnetic sensor |
| Protection | IP 67 |
| Protection class | III |
| Reverse polarity protection | yes |
| Sensing range | 60; (referred to magnet M 4.0) |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Magnetic sensor; 36.8 x 10.2 x 16 mm; Sensing range 60 mm; normally closed; DC; PNP; M8 Connector; IP 67; 3-wire; Ambient temperature -25...75 °C; Switching frequency 5000 Hz |
| Switching frequency DC | 5000 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | MS5013 |
| Product category | Magnetic & Cylinder Sensors |
| Published specifications | 24 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for MS5013?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MS5013?
MS5013 is made by IFM and is listed in our Magnetic & Cylinder Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number MS5013, and the quote confirms condition and lead time before you order.
Is the MS5013 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the MS5013, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of MS5013?
No published lifecycle status is on file for MS5013. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of MS5013?
Key specifications include Ambient temperature: -25...75; Connector: 1 x M8; coding: A; Contacts: 3, gold-plated; Dimensions: 36.8 x 10.2 x 16; Electrical design: PNP. The full specification table on this page lists every published attribute for this part.
What voltage does MS5013 use?
Per the published specification for MS5013: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of MS5013?
Per the published specification for MS5013: Permanent current rating of switching output DC: 200. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is MS5013 made of?
Per the published specification for MS5013: Material: housing: PBT orange. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can MS5013 ship?
Lead time for MS5013 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
