MK5214 IFM T-slot cylinder sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM MK5214 - T-slot cylinder sensor - Weight: 23.5; Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5; Ambient temperature: -25...85.
Overview
Part number MK5214 from IFM, listed in Magnetic & Cylinder Sensors. Specifications on file: Ambient temperature -25...85; Application welding applications; Cable 0.3 m, PUR; protective tube; Cylinder type T-slot cylinders. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM MK5214 is a T-slot cylinder sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 23.5 and Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5.
housing: PA; Fastening clamp: stainless steel; Knurled nut: PTFE coated; protective tube: PTFE coated
Key manufacturer data on file for this item includes Ambient temperature: -25...85; Connector: 1 x M12; coding: A; Contacts: 4; Locking: Knurled nut, rotatable; Protection class: III; Dimensions: 25 x 5 x 6.5; Application: welding applications; Product type: T-slot cylinder sensor; Mounting: flush mountable; Cable: 0.3 m, PUR; protective tube; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Repeatability: < 0.2. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...85 |
|---|---|
| Application | welding applications |
| Cable | 0.3 m, PUR; protective tube |
| Connector | 1 x M12; coding: A; Contacts: 4; Locking: Knurled nut, rotatable |
| Cylinder type | T-slot cylinders |
| Dimensions | 25 x 5 x 6.5 |
| Electrical design | PNP |
| Key Features | With suppression of extraneous fields for use in welding applications; Connector with non-stick coating; PTFE protective tube to prevent damage by weld splatter; Self-locking fixture for quick mounting and easy adjustment; Easy fit 'drop from the top' into a slot |
| Magnetic field immune | yes |
| Magnetic sensitivity | 2.8 |
| Material | housing: PA; Fastening clamp: stainless steel; Knurled nut: PTFE coated; protective tube: PTFE coated |
| Max. electromagnetic field immunity | 200 |
| Max. power-on delay time | 300 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1267 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Principle of operation | suppression of extraneous fields |
| Product type | T-slot cylinder sensor |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Special Feature | Magnetic-field immune |
| Specification Summary | Cylinder sensor with GMR cell; 25 x 5 x 6.5 mm; Magnetic sensitivity 2.8 mT; Reverse polarity protection yes; Short-circuit protection yes; Overload protection yes; normally open; DC; PNP; 0.3 m PUR-Cable; M12 Connector; IP 65; IP 67; 3-wire; Switching frequency 9 Hz |
| Switching frequency DC | 9 |
| Type of mounting | fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Weight | 23.5 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | MK5214 |
| Product category | Magnetic & Cylinder Sensors |
| Published specifications | 32 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for MK5214?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MK5214?
MK5214 is an IFM part, sourced to the exact manufacturer specification.
What is the lifecycle status of MK5214?
No published lifecycle status is on file for MK5214. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of MK5214?
Key specifications include Ambient temperature: -25...85; Application: welding applications; Cable: 0.3 m, PUR; protective tube; Connector: 1 x M12; coding: A; Contacts: 4; Locking: Knurled nut, rotatable. The full specification table on this page lists every published attribute for this part.
How quickly can MK5214 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Related Products
IFM T-slot cylinder sensor - MK5209
IFM T-slot cylinder sensor - MK5215
IFM T-slot cylinder sensor - MK5208
IFM T-slot cylinder sensor - MK5247
IFM T-slot cylinder sensor - MK5174

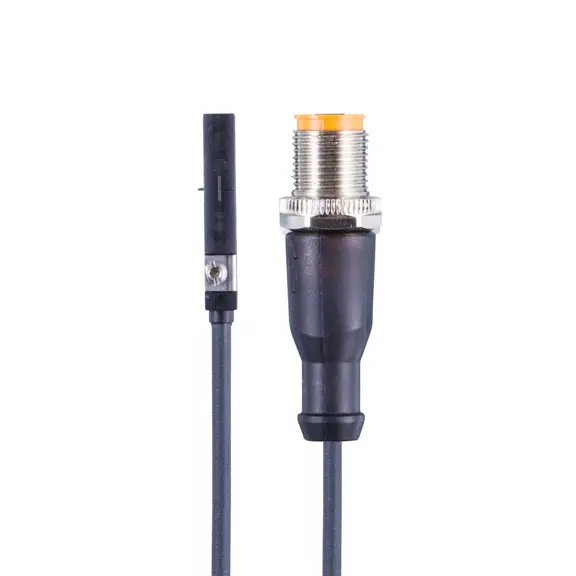

IFM T-slot cylinder sensor - MK5248
