MK5121 IFM T-slot cylinder sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM MK5121 - T-slot cylinder sensor - Material: housing: PA; Fastening clamp: stainless steel; Weight: 16.7; Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5.
Overview
Part number MK5121 from IFM, listed in Magnetic & Cylinder Sensors. Specifications on file: Ambient temperature -25...85; Cable 0.5 m, PUR; Cylinder type T-slot cylinders; Dimensions 25.3 x 5 x 6.5. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the MK5121 from IFM is listed under the T-slot cylinder sensor category. The manufacturer's published data for this part number specifies Material: housing: PA; Fastening clamp: stainless steel and Weight: 16.7.
Self-locking fixture for quick mounting and easy adjustment; Easy fit 'drop from the top' into a slot; Molded cable provides very good strain relief; Clearly visible indication of the switching status; Very high switching frequency
The specification set recorded for this part number covers Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5; Ambient temperature: -25...85; Connector: 1 x M8; coding: A; Contacts: 3; Locking: Knurled nut, rotatable; Protection class: III; Dimensions: 25.3 x 5 x 6.5; Product type: T-slot cylinder sensor; Mounting: flush mountable; Cable: 0.5 m, PUR; Operating voltage: 10...30 DC; (cULus - Class 2 source required); Current consumption: < 10; Reverse polarity protection: yes; Repeatability: < 0.2. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...85 |
|---|---|
| Cable | 0.5 m, PUR |
| Connector | 1 x M8; coding: A; Contacts: 3; Locking: Knurled nut, rotatable |
| Cylinder type | T-slot cylinders |
| Dimensions | 25.3 x 5 x 6.5 |
| Electrical design | PNP |
| Key Features | Self-locking fixture for quick mounting and easy adjustment; Easy fit 'drop from the top' into a slot; Molded cable provides very good strain relief; Clearly visible indication of the switching status; Very high switching frequency |
| Magnetic sensitivity | 2.8 |
| Material | housing: PA; Fastening clamp: stainless steel |
| Max. power-on delay time | 30 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 3694 |
| Operating voltage | 10...30 DC; (cULus - Class 2 source required) |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | T-slot cylinder sensor |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Cylinder sensor with GMR cell; 25.3 x 5 x 6.5 mm; Magnetic sensitivity 2.8 mT; Reverse polarity protection yes; Short-circuit protection yes; Overload protection yes; normally open; DC; PNP; 0.5 m PUR-Cable; M8 Connector; IP 65; IP 67; 3-wire; Switching frequency 10000 Hz |
| Switching frequency DC | 10000 |
| Travel speed | > 10 |
| Type of mounting | fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 16.7 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | MK5121 |
| Product category | Magnetic & Cylinder Sensors |
| Published specifications | 29 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for MK5121?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MK5121?
MK5121 is an IFM part, sourced to the exact manufacturer specification.
What is the lifecycle status of MK5121?
No published lifecycle status is on file for MK5121. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of MK5121?
Key specifications include Ambient temperature: -25...85; Cable: 0.5 m, PUR; Connector: 1 x M8; coding: A; Contacts: 3; Locking: Knurled nut, rotatable; Cylinder type: T-slot cylinders. The full specification table on this page lists every published attribute for this part.
How quickly can MK5121 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Related Products
IFM T-slot cylinder sensor - MK5117

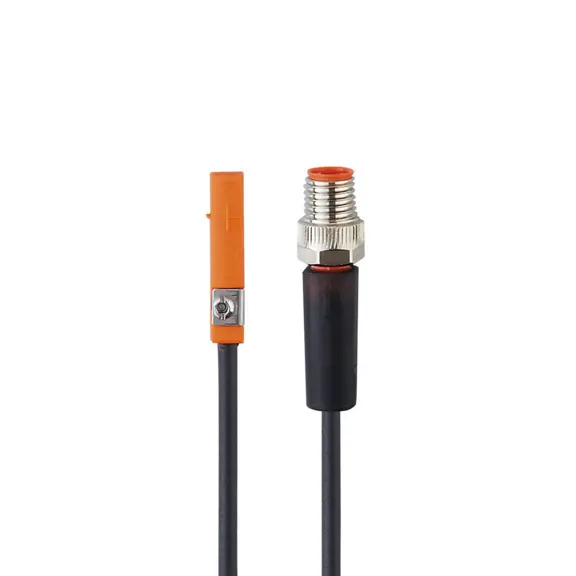

IFM T-slot cylinder sensor - MK5122

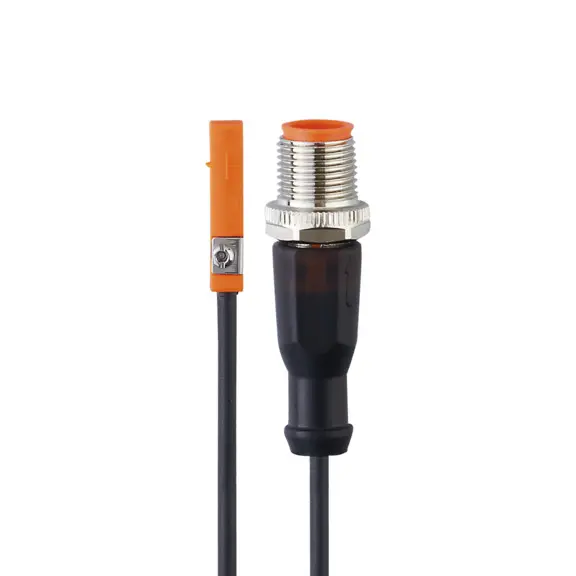

IFM Cylinder sensor with GMR cell - MK5116
IFM T-slot cylinder sensor - MK5123

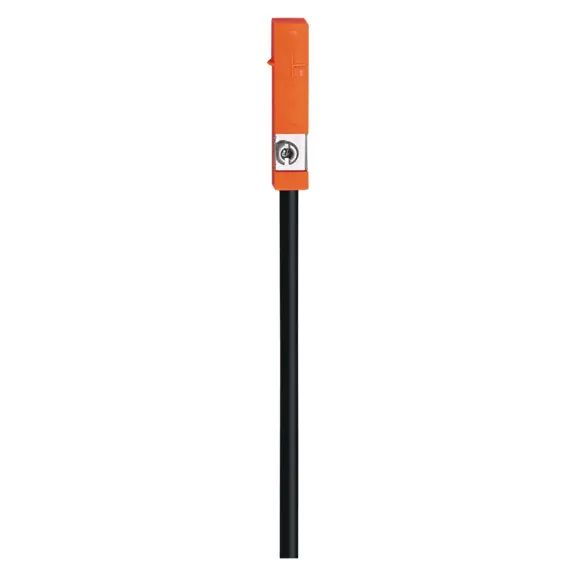

IFM T-slot cylinder sensor - MK5115
