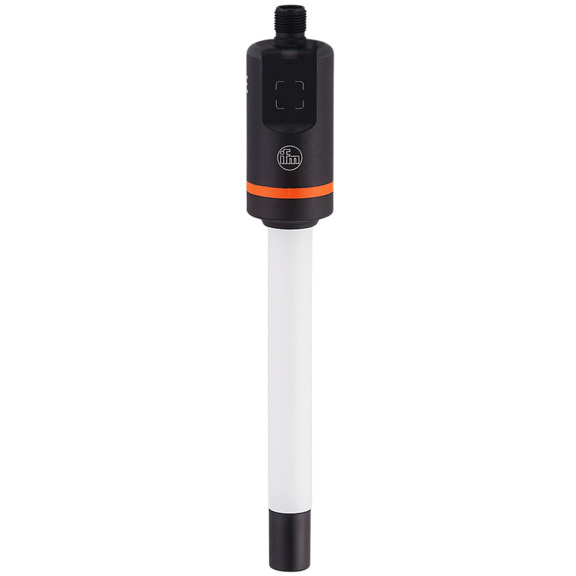

LI5134 IFM Sensor for point level detection
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM LI5134 - Sensor for point level detection - Material: PP fiber-reinforced; Storage Temperature: -25...85.
Overview
Part number LI5134 from IFM, listed in Sensors & Encoders. Specifications on file: Accuracy 1,5; Active range A 28; Ambient temperature -25...85; Communication interface IO-Link. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM LI5134, a part number in the Sensor for point level detection category. The manufacturer's published data for this part number specifies Material: PP fiber-reinforced.
For the reliable point level monitoring in tanks and containers; Detection of minimum level, leakage or overflow of tanks; simple empty or full adjustment; Suitable for water, oils and coolants; User-friendly setting of the requested immersion depth of the sensor
Published specifications for this part include Storage Temperature: -25...85; Ambient temperature: -25...85; Connector: 1 x M12; coding: A; Contacts: gold-plated; Protection class: III; Number of digital outputs: 2; Output signal: switching signal; IO-Link; Product type: Sensor for point level detection; Accuracy: 1,5; Response time: < 0.3; Communication interface: IO-Link; Measuring range: -25...85; Operating voltage: 9.6...35 DC; (IO-Link: 18...30 DC). See the Specifications tab on this page for the full technical table.
Specifications
| Accuracy | 1,5 |
|---|---|
| Active range A | 28 |
| Ambient temperature | -25...85 |
| Cannot be used for | See operating instructions, chapter "Intended use". |
| Communication interface | IO-Link |
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
| Dielectric constant of the medium | > 1,8 |
| Dynamic response T09 | 240 |
| Electrical design | PNP/NPN |
| Factory setting | water-based media |
| IO-Link revision | 1.1 |
| Key Features | For the reliable point level monitoring in tanks and containers; Detection of minimum level, leakage or overflow of tanks; simple empty or full adjustment; Suitable for water, oils and coolants; User-friendly setting of the requested immersion depth of the sensor |
| Material | PP fiber-reinforced |
| Materials (wetted parts) | PP |
| Max. voltage drop switching output DC | 2.5 |
| Measuring principle | capacitive |
| Measuring range | -25...85 |
| Media | Liquids |
| Medium temperature | -25...85 |
| Min. process cycle time | 4.5 |
| MTTF | 433 |
| Number of digital outputs | 2 |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Operating voltage | 9.6...35 DC; (IO-Link: 18...30 DC) |
| Output function | normally open / closed; (configurable) |
| Output signal | switching signal; IO-Link |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Probe diameter | 16 |
| Probe length (L) | 737 |
| Process data analog | 5 |
| Process data binary | 2 |
| Product type | Sensor for point level detection |
| Protection | IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
| Protection class | III |
| Recommended media | water; water-based media; oils; oil-based media |
| Required master port class | A |
| Resolution | 0.1 |
| Reverse polarity protection | yes |
| SDCI standard | IEC 61131-9 |
| Short circuit protection | yes |
| SIO mode | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Binary level sensor; PNP/NPN; switching signal; IO-Link; Probe length L 737 mm; Medium temperature -25...85 °C; Pressure rating 0.5 bar; Connector |
| Storage Temperature | -25...85 |
| Total number of outputs | 2 |
| Transmission type | COM2 (38,4 kBaud) |
| Type of short-circuit protection | yes (non-latching) |
| Vacuum resistance | -500 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | LI5134 |
| Product category | Sensors & Encoders |
| Published specifications | 50 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for LI5134?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the LI5134?
LI5134 is made by IFM and is listed in our Sensors & Encoders category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number LI5134, and the quote confirms condition and lead time before you order.
Is the LI5134 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the LI5134, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of LI5134?
No published lifecycle status is on file for LI5134. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of LI5134?
Key specifications include Accuracy: 1,5; Active range A: 28; Ambient temperature: -25...85; Cannot be used for: See operating instructions, chapter "Intended use".. The full specification table on this page lists every published attribute for this part.
What voltage does LI5134 use?
Per the published specification for LI5134: Max. voltage drop switching output DC: 2.5; Operating voltage: 9.6...35 DC; (IO-Link: 18...30 DC). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of LI5134?
Per the published specification for LI5134: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is LI5134 made of?
Per the published specification for LI5134: Material: PP fiber-reinforced. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can LI5134 ship?
Lead time for LI5134 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
