IY5049 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IY5049 - Inductive sensor - Material: housing: stainless steel; sensing face: POM; Ambient temperature: -25...70.
Overview
Part number IY5049 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -25...70; Cable 2 m, PUR; 3 x 0.14 mm²; Current consumption 10; (24 V); Dimensions M5 x 0.5 / L = 27. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the IY5049 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: stainless steel; sensing face: POM.
Particularly short housing; For use where space is restricted; Space-saving connection technology; Robust stainless steel housing for use in harsh industrial environments; Very high switching frequency
The specification set recorded for this part number covers Ambient temperature: -25...70; Dimensions: M5 x 0.5 / L = 27; Product type: Inductive sensor; Mounting: non-flush mountable; Cable: 2 m, PUR; 3 x 0.14 mm²; Operating voltage: 10...30 DC; Current consumption: 10; (24 V); Reverse polarity protection: yes; Sensing range: 1.5; Overload protection: yes; Output function: normally open; Hysteresis: < 15. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...70 |
|---|---|
| Cable | 2 m, PUR; 3 x 0.14 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | 10; (24 V) |
| Dimensions | M5 x 0.5 / L = 27 |
| Electrical design | PNP |
| Housing | Threaded type |
| Key Features | Particularly short housing; For use where space is restricted; Space-saving connection technology; Robust stainless steel housing for use in harsh industrial environments; Very high switching frequency |
| Material | housing: stainless steel; sensing face: POM |
| Max. voltage drop switching output DC | 3 |
| Mounting | non-flush mountable |
| MTTF | 835 |
| Operating distance | 0...1.2 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Real sensing range Sr | 1.5 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 1.5 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; M5 x 0.5 / L = 27 mm; Sensing range 1.5 mm non-flush mountable; normally open; DC; PNP; 2 m PUR-Cable; IP 67; 3-wire; Ambient temperature -25...70 °C; Switching frequency 1800 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 1800 |
| Thread designation | M5 x 0.5 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IY5049 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 29 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IY5049?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IY5049?
IY5049 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IY5049, and the quote confirms condition and lead time before you order.
Is the IY5049 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IY5049, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IY5049?
No published lifecycle status is on file for IY5049. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IY5049?
Key specifications include Ambient temperature: -25...70; Cable: 2 m, PUR; 3 x 0.14 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Current consumption: 10; (24 V). The full specification table on this page lists every published attribute for this part.
What voltage does IY5049 use?
Per the published specification for IY5049: Max. voltage drop switching output DC: 3; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IY5049?
Per the published specification for IY5049: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IY5049 use?
Per the published specification for IY5049: Thread designation: M5 x 0.5. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IY5049 ship?
Lead time for IY5049 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products

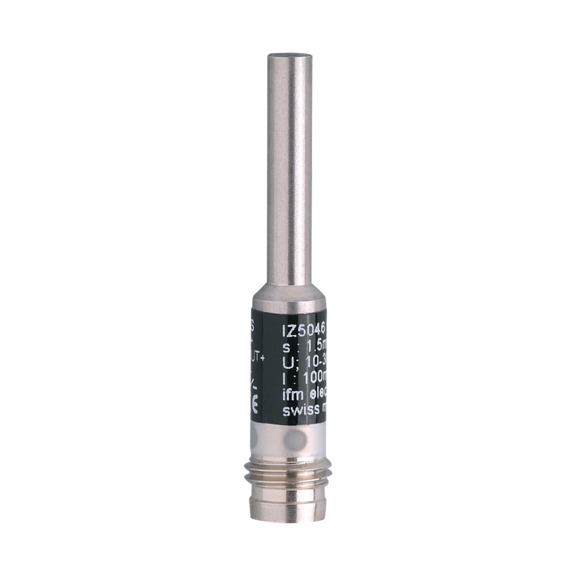

IFM Inductive sensor - IZ5046
