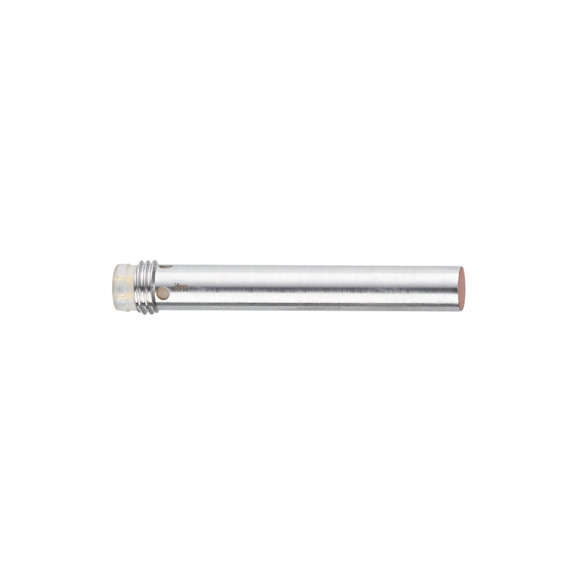

IT5034 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IT5034 - Inductive sensor - Material: housing: brass special coating; sensing face: PBT orange; LED window: PPSU; Ambient temperature: 0...60.
Overview
Part number IT5034 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature 0...60; Connector 1 x M8; coding: A; Contacts: 3; Dimensions Ø 6.5 / L = 50; Electrical design PNP. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM IT5034 is an Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: brass special coating; sensing face: PBT orange; LED window: PPSU.
For use where space is restricted; Space-saving M8 connector; Clearly visible indication of the switching status; Robust metal housing for use in harsh industrial environments; Very high switching frequency
The specification set recorded for this part number covers Ambient temperature: 0...60; Connector: 1 x M8; coding: A; Contacts: 3; Protection class: III; Dimensions: Ø 6.5 / L = 50; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 1.5; Overload protection: yes; Output function: normally open. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | 0...60 |
|---|---|
| Connector | 1 x M8; coding: A; Contacts: 3 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.2 |
| Dimensions | Ø 6.5 / L = 50 |
| Electrical design | PNP |
| Embedded software included | yes |
| Housing | tubular |
| Hysteresis | 1...20 |
| Key Features | For use where space is restricted; Space-saving M8 connector; Clearly visible indication of the switching status; Robust metal housing for use in harsh industrial environments; Very high switching frequency |
| Material | housing: brass special coating; sensing face: PBT orange; LED window: PPSU |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 2359 |
| Operating distance | 0...1.22 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65; (with ifm socket duly screwed on: IP 67) |
| Protection class | III |
| Real sensing range Sr | 1.5 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 1.5 |
| Short circuit protection | yes |
| Short-time current rating of switching output | 100 |
| Specification Summary | Inductive sensor; Ø 6.5 / L = 50 mm; Sensing range 1.5 mm flush mountable; normally open; DC; PNP; M8 Connector; IP 65; (with ifm socket duly screwed on: IP 67); 3-wire; Ambient temperature 0...60 °C; Switching frequency 1700 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 1700 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IT5034 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 30 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IT5034?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IT5034?
IT5034 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IT5034, and the quote confirms condition and lead time before you order.
Is the IT5034 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IT5034, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IT5034?
No published lifecycle status is on file for IT5034. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IT5034?
Key specifications include Ambient temperature: 0...60; Connector: 1 x M8; coding: A; Contacts: 3; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.2; Dimensions: Ø 6.5 / L = 50. The full specification table on this page lists every published attribute for this part.
What voltage does IT5034 use?
Per the published specification for IT5034: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IT5034?
Per the published specification for IT5034: Permanent current rating of switching output DC: 100; Short-time current rating of switching output: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is IT5034 made of?
Per the published specification for IT5034: Material: housing: brass special coating; sensing face: PBT orange; LED window: PPSU. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IT5034 ship?
Lead time for IT5034 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
