IM3501 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IM3501 - Inductive sensor - Material: PPE; Ambient temperature: -25...80.
Overview
Part number IM3501 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -25...80; Connector 1 x 7/8"; coding: A; Dimensions 40 x 40 x 120; Frequency AC 47...63. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM IM3501 is part of the Inductive sensor range in our industrial catalog. The manufacturer's published data for this part number specifies Material: PPE.
Long sensing range for use in conveying; With combined AC/DC output and two-wire technology; Output function normally open / normally closed programmable; Robust housing for use in harsh industrial environments; Large operating voltage range
The specification set recorded for this part number covers Ambient temperature: -25...80; Connector: 1 x 7/8"; coding: A; Protection class: II; Dimensions: 40 x 40 x 120; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 20...250 AC/DC; Reverse polarity protection: no; Sensing range: 20; Overload protection: no; Output function: normally open / closed; (selectable); Hysteresis: 1...15. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...80 |
|---|---|
| Connector | 1 x 7/8"; coding: A |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Dimensions | 40 x 40 x 120 |
| Frequency AC | 47...63 |
| Housing | rectangular |
| Hysteresis | 1...15 |
| Key Features | Long sensing range for use in conveying; With combined AC/DC output and two-wire technology; Output function normally open / normally closed programmable; Robust housing for use in harsh industrial environments; Large operating voltage range |
| Material | PPE |
| Max. leakage current | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Max. voltage drop switching output AC | 6.5 |
| Max. voltage drop switching output DC | 6 |
| Minimum load current | 5 |
| Mounting | non-flush mountable |
| Operating distance | 0...16.2 |
| Operating voltage | 20...250 AC/DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | no |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output AC | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65 |
| Protection class | II |
| Real sensing range Sr | 20 ± 10 % |
| Reverse polarity protection | no |
| Sensing range | 20 |
| Short circuit protection | no |
| Short-time current rating of switching output | 2200; (20 ms / 0,5 Hz) |
| Specification Summary | Inductive sensor; 40 x 40 x 120 mm; Sensing range 20 mm non-flush mountable; normally open / closed; (selectable); AC/DC; 7/8" Connector; IP 65; 2-wire; Ambient temperature -25...80 °C; Switching frequency 20 Hz AC / 55 Hz DC |
| Switch-point drift | -10...10 |
| Switching frequency AC | 20 |
| Switching frequency DC | 55 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IM3501 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 33 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IM3501?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IM3501?
IM3501 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IM3501, and the quote confirms condition and lead time before you order.
Is the IM3501 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IM3501, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IM3501?
No published lifecycle status is on file for IM3501. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IM3501?
Key specifications include Ambient temperature: -25...80; Connector: 1 x 7/8"; coding: A; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Dimensions: 40 x 40 x 120. The full specification table on this page lists every published attribute for this part.
What voltage does IM3501 use?
Per the published specification for IM3501: Max. voltage drop switching output AC: 6.5; Max. voltage drop switching output DC: 6. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IM3501?
Per the published specification for IM3501: Permanent current rating of switching output AC: 250; (350 (...50 °C)); Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is IM3501 made of?
Per the published specification for IM3501: Material: PPE. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IM3501 ship?
Lead time for IM3501 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - IIS316

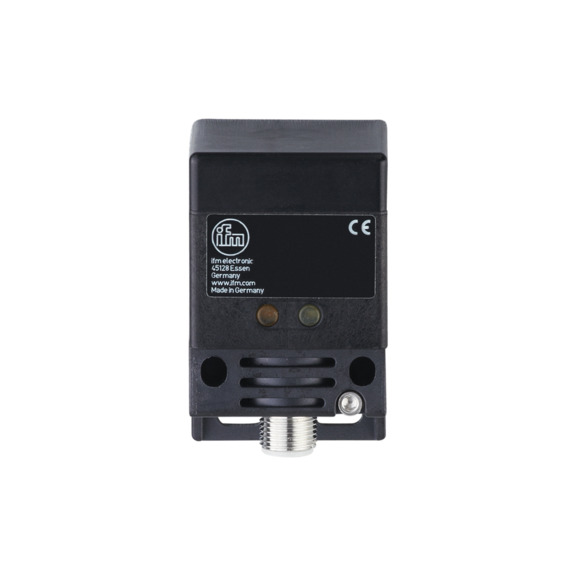

IFM Inductive sensor - IM5098

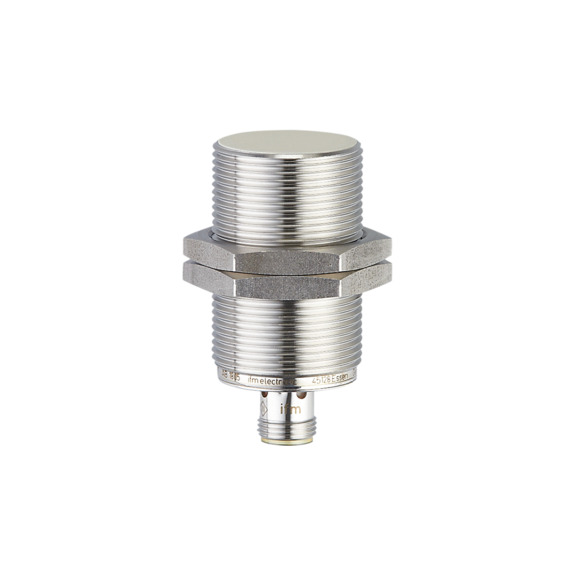

IFM Inductive sensor - IIS315
IFM inductive analog sensor with IO-Link - IM5139

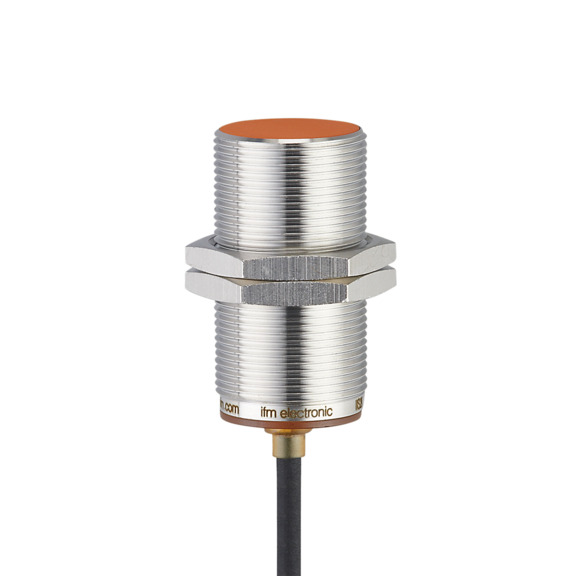

IFM Inductive sensor - IIS262
