IGS319 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IGS319 - Inductive sensor - Ambient temperature: -40...85; Tightening torque: 25.
Overview
Part number IGS319 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -40...85; Application Industrial applications; Dimensions M18 x 1 / L = 45; Electrical design PNP. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM IGS319 is an Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Ambient temperature: -40...85.
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Published specifications for this part include Tightening torque: 25; Protection class: III; Dimensions: M18 x 1 / L = 45; Application: Industrial applications; Product type: Inductive sensor; Mounting: flush mountable; Cable: 3 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²; Operating voltage: 10...32 DC; Current consumption: 8; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Application | Industrial applications |
| Cable | 3 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M18 x 1 / L = 45 |
| Electrical design | PNP |
| Embedded software included | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Key Features | Suitable for industrial, mobile, cooling and lubricating applications; High protection rating for the requirements of harsh industrial environments; Wide operating temperature range; Safe detection due to large sensing range and low sensor tolerances; Reduced inventory due to wide range of applications |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Max. leakage current | 0.8; (24 V DC) |
| Max. voltage drop switching output DC | 5 |
| Minimum load current | 2 |
| Mounting | flush mountable |
| MTTF | 1980 |
| Operating distance | 0...6.48 |
| Operating voltage | 10...32 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | > 8 |
| Short circuit protection | yes |
| Short-time current rating of switching output | 2200; (20 ms / 0,5 Hz) |
| Specification Summary | Inductive sensor; M18 x 1 / L = 45 mm; Sensing range > 8 mm flush mountable; normally open; DC; PNP; 3 m PUR-Cable; IP 65; IP 66; IP 67; IP 68; IP 69K; Ambient temperature -40...85 °C; Switching frequency 400 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 400 |
| Thread designation | M18 x 1 |
| Tightening torque | 25 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IGS319 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 35 attributes listed |
| Related part numbers | 8 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IGS319?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGS319?
IGS319 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IGS319, and the quote confirms condition and lead time before you order.
Is the IGS319 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IGS319, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IGS319?
No published lifecycle status is on file for IGS319. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IGS319?
Key specifications include Ambient temperature: -40...85; Application: Industrial applications; Cable: 3 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
What voltage does IGS319 use?
Per the published specification for IGS319: Max. voltage drop switching output DC: 5; Operating voltage: 10...32 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IGS319?
Per the published specification for IGS319: Permanent current rating of switching output DC: 100; Short-time current rating of switching output: 2200; (20 ms / 0,5 Hz). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IGS319 use?
Per the published specification for IGS319: Thread designation: M18 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IGS319 ship?
Lead time for IGS319 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - IGS312
IFM Inductive sensor - IGS324

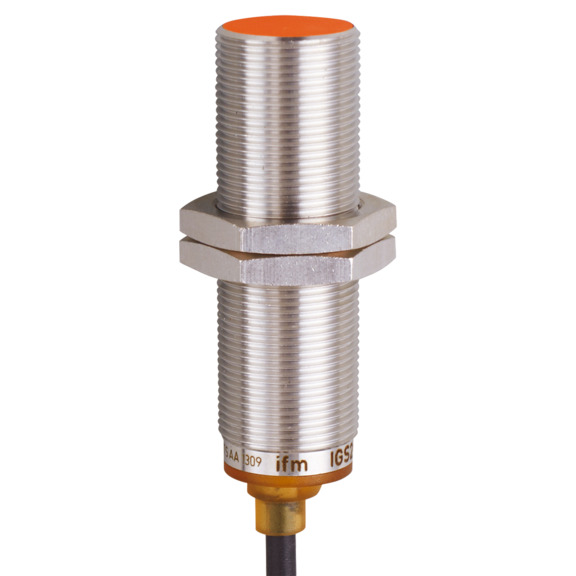

IFM Inductive sensor - IGS268
IFM Inductive sensor - IGS325

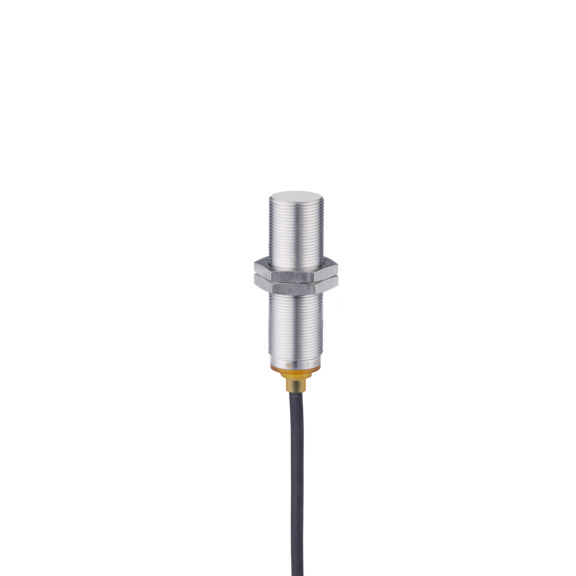

IFM Inductive sensor - IGS267
