IGS236 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IGS236 - Inductive sensor - Ambient temperature: -40...85; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
Overview
Part number IGS236 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -40...85; Dimensions M18 x 1 / L = 45; Electrical design PNP; Embedded software included no. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM IGS236, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Ambient temperature: -40...85.
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
The specification set recorded for this part number covers Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Protection class: III; Dimensions: M18 x 1 / L = 45; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 8; Overload protection: yes; Special Feature: gold-plated contacts; Increased sensing range; Output function: normally open. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Application | Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M18 x 1 / L = 45 |
| Electrical design | PNP |
| Embedded software included | no |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Suitable for industrial, mobile, cooling and lubricating applications; High protection rating for the requirements of harsh industrial environments; Wide operating temperature range; Safe detection due to large sensing range and low sensor tolerances; Reduced inventory due to wide range of applications |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1134 |
| Operating distance | 0...6.48 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 8 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range |
| Specification Summary | Inductive sensor; M18 x 1 / L = 45 mm; Sensing range 8 mm flush mountable; normally open; DC; PNP; M12 Connector; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature -40...85 °C; Switching frequency 400 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 400 |
| Thread designation | M18 x 1 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IGS236 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 33 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IGS236?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGS236?
IGS236 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IGS236, and the quote confirms condition and lead time before you order.
Is the IGS236 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IGS236, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IGS236?
No published lifecycle status is on file for IGS236. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IGS236?
Key specifications include Ambient temperature: -40...85; Application: Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
What voltage does IGS236 use?
Per the published specification for IGS236: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IGS236?
Per the published specification for IGS236: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IGS236 use?
Per the published specification for IGS236: Thread designation: M18 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IGS236 ship?
Lead time for IGS236 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - IGS235
IFM Inductive sensor - IGS237
IFM Inductive sensor - IGS234

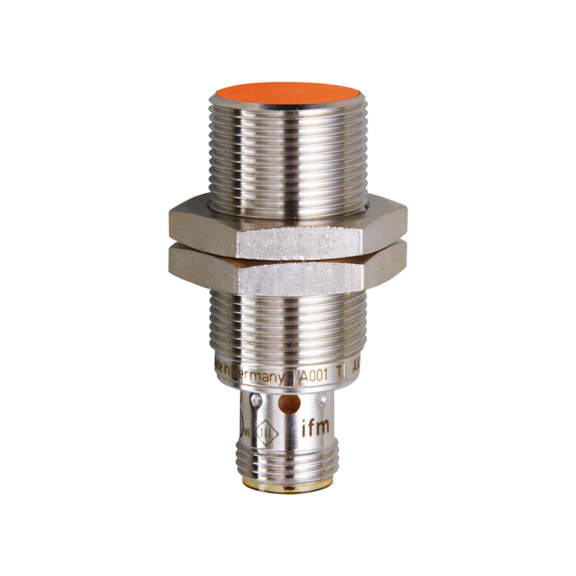

IFM Inductive sensor - IGS238
