Inductive full-metal sensor - IGC258
IFM IGC258 - Inductive full-metal sensor - Weight: 44; Ambient temperature: -40...85; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
IFM IGC258 is a Inductive full-metal sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 44 and Ambient temperature: -40...85.
stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: brass white bronze coated
The specification set recorded for this part number covers Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 50; Protection class: III; Dimensions: M18 x 1 / L = 45; Application: Industrial applications; Oils and coolants; Product type: Inductive full-metal sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 8; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -40...85 |
|---|---|
| Application | Industrial applications; Oils and coolants |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2 |
| Current consumption | < 10 |
| Dimensions | M18 x 1 / L = 45 |
| Electrical design | PNP |
| Embedded software included | no |
| Full-metal housing | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Safe detection due to large sensing range and low sensor tolerances; For use in machine tools and metalworking; Clearly visible indication of the switching status; Resistant to oils and coolants; Metal sensing face for heavy duty |
| Material | stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: brass white bronze coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1244 |
| Operating distance | 0...6.48 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive full-metal sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 8 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range; Full-metal housing |
| Specification Summary | Inductive sensor; M18 x 1 / L = 45 mm; Sensing range 8 mm flush mountable; normally open; DC; PNP; M12 Connector; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature -40...85 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Thread designation | M18 x 1 |
| Tightening torque | 50 |
| Weight | 44 |
Frequently Asked Questions
How do I get pricing for IGC258?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGC258?
IGC258 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IGC258?
Key specifications include Ambient temperature: -40...85; Application: Industrial applications; Oils and coolants; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2. The full specification table on this page lists every published attribute for this part.
How quickly can IGC258 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive full-metal sensor - IGC252
IFM Inductive full-metal sensor - IGC260
IFM Inductive full-metal sensor - IGC250
IFM Inductive full-metal sensor - IGC261

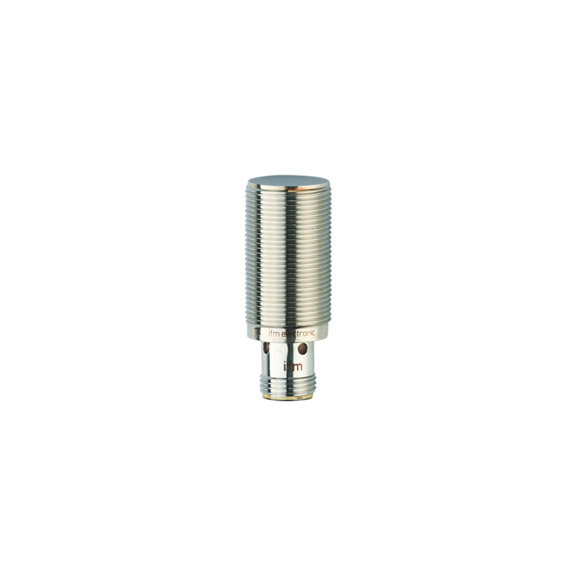

IFM Inductive full-metal sensor - IGC263
