inductive analog sensor with IO-Link - IG6083
IFM IG6083 - inductive analog sensor with IO-Link - Weight: 46.75; Ambient temperature: -25...80; Connector: 1 x M12; coding: A; Contacts: 4.
This listing covers the IFM IG6083, a part number in the inductive analog sensor with IO-Link category. The manufacturer's published data for this part number specifies Weight: 46.75 and Ambient temperature: -25...80.
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: 4; Tightening torque: 25; Protection class: II; Dimensions: M18 x 1 / L = 60; Product type: inductive analog sensor with IO-Link; Mounting: non-flush mountable; Response time: < 10; Communication interface: IO-Link; Measuring range: 0.8...8; Operating voltage: 15...30 DC; Current consumption: < 30; Reverse polarity protection: yes. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -25...80 |
|---|---|
| Analog current output | 4...20; (linear; gradient: 2,222 mA/mm; for frontal approach and for target made of mild steel: 24 x 24 x 1 mm) |
| Communication interface | IO-Link |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
| Current consumption | < 30 |
| Dimensions | M18 x 1 / L = 60 |
| Electrical design | PNP/NPN; (configurable) |
| Embedded software included | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| IO-Link functions (acyclical) | switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag |
| IO-Link revision | 1.1 |
| Key Features | Precise linearized output signal; Very high repeatability; For non-contact distance measurement; Wide operating temperature range; Robust metal housing for use in harsh industrial environments |
| Linearity error of analog output | ± 1; (of the final value of the measuring range) |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Max. load | 500; (Ub <=18 V;; Max. load <=400 Ω) |
| Max. voltage drop switching output DC | 2.5 |
| Measuring range | 0.8...8 |
| Min. process cycle time | 3.2 |
| Mounting | non-flush mountable |
| MTTF | 218 |
| Operating voltage | 15...30 DC |
| Output function | normally open / closed; (configurable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | inductive analog sensor with IO-Link |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | II |
| Repeatability analog output | ± 1; (of the final value of the measuring range) |
| Required master port class | A |
| Response time | < 10 |
| Reverse polarity protection | yes |
| SDCI standard | IEC 61131-9 |
| Short circuit protection | yes |
| SIO mode | yes |
| Specification Summary | Inductive sensor; M18 x 1 / L = 60 mm; Measuring range 0.8...8 mm; Analog current output 4...20 mA; normally open / closed; (configurable); analog; DC; PNP/NPN; M12 Connector; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature -25...80 °C; Switching frequency 300 Hz |
| Switch point IO-Link | 1.5...7.48 |
| Switching frequency DC | 300 |
| Temperature coefficient | ±0,15 |
| Temperature drift | ± 5 %; (of the final value of the measuring range) |
| Thread designation | M18 x 1 |
| Tightening torque | 25 |
| Transmission type | COM2 (38,4 kBaud) |
| Weight | 46.75 |
Frequently Asked Questions
How do I get pricing for IG6083?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IG6083?
IG6083 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IG6083?
Key specifications include Ambient temperature: -25...80; Analog current output: 4...20; (linear; gradient: 2,222 mA/mm; for frontal approach and for target made of mild steel: 24 x 24 x 1 mm); Communication interface: IO-Link; Connector: 1 x M12; coding: A; Contacts: 4. The full specification table on this page lists every published attribute for this part.
How quickly can IG6083 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM inductive analog sensor with IO-Link - IG6084
IFM inductive analog sensor with IO-Link - IG6086
IFM inductive analog sensor with IO-Link - IG6087
IFM inductive analog sensor with IO-Link - IF6031

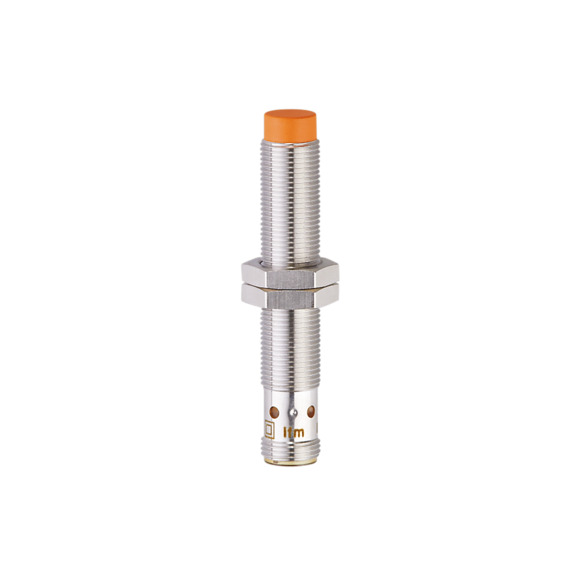

IFM inductive analog sensor with IO-Link - IF6030
