Inductive full-metal sensor - IFT243
IFM IFT243 - Inductive full-metal sensor - Weight: 19.645; Ambient temperature: 0...100; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
IFM IFT243 is a Inductive full-metal sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 19.645 and Ambient temperature: 0...100.
housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
The specification set recorded for this part number covers Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 15; Protection class: III; Dimensions: Ø 12 / L = 60; Application: Use in hygienic areas / regular cleaning processes; Product type: Inductive full-metal sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 20; Reverse polarity protection: yes; Sensing range: 3; Overload protection: yes. See the Specifications tab on this page for the full technical table.
| Ambient temperature | 0...100 |
|---|---|
| Application | Use in hygienic areas / regular cleaning processes |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.6 / brass: 0.7 / aluminum: 0.6 / copper: 0.3 |
| Current consumption | < 20 |
| Dimensions | Ø 12 / L = 60 |
| Electrical design | PNP |
| Embedded software included | no |
| Full-metal housing | yes |
| Housing | tubular |
| Hysteresis | 1...20 |
| Increased sensing range | yes |
| Key Features | Robust full-metal housing from stainless steel for use in the food industry; Wide operating temperature range; Temperature shock resistant even in case of frequent temperature fluctuations; Resistant to high-pressure cleaning with aggressive cleaning agents; Long sensing range minimizes physical damage |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1104 |
| Operating distance | 0...2.4 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive full-metal sensor |
| Protection | IP 68; IP 69K |
| Protection class | III |
| Reverse polarity protection | yes |
| Sensing range | 3 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range; Full-metal housing |
| Specification Summary | Inductive sensor; Ø 12 / L = 60 mm; Sensing range 3 mm flush mountable; normally open; DC; PNP; M12 Connector; IP 68; IP 69K; 3-wire; Ambient temperature 0...100 °C; Switching frequency 100 Hz |
| Switching frequency DC | 100 |
| Tightening torque | 15 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 19.645 |
Frequently Asked Questions
How do I get pricing for IFT243?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IFT243?
IFT243 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IFT243?
Key specifications include Ambient temperature: 0...100; Application: Use in hygienic areas / regular cleaning processes; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.6 / brass: 0.7 / aluminum: 0.6 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
How quickly can IFT243 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive full-metal sensor - IFR212
IFM Inductive full-metal sensor - IFC281
IFM Inductive full-metal sensor - IGC262

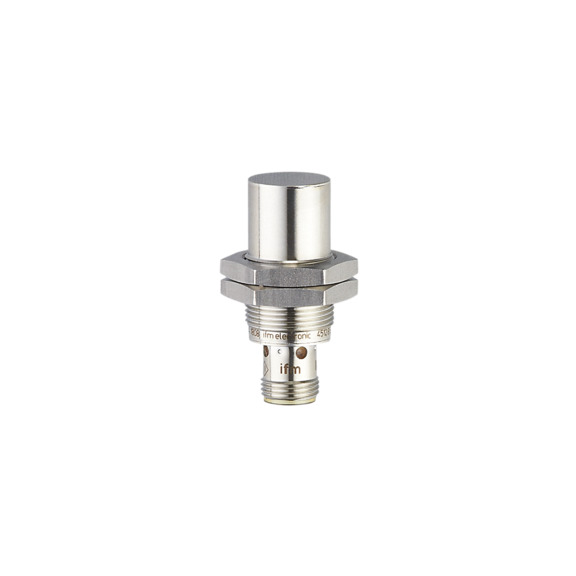

IFM Inductive full-metal sensor - IGT262
