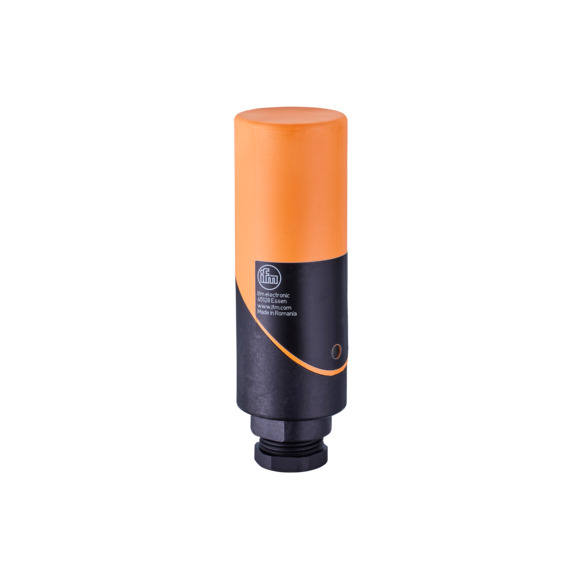

IB5133 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IB5133 - Inductive sensor - Material: housing: PBT; bevelled housing part: PC; Ambient temperature: -25...80.
Overview
Part number IB5133 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -25...80; Application Industrial applications; Current consumption 15; (24 V); Dimensions Ø 34 / L = 98. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the IB5133 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: PBT; bevelled housing part: PC.
Very long sensing range; Smooth plastic housing to protect against deposits; PBT housing resistant against wide range of chemicals; With terminal chamber that can be rotated by 90°; Output function normally open / normally closed programmable
The specification set recorded for this part number covers Ambient temperature: -25...80; Terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5; Protection class: II; Dimensions: Ø 34 / L = 98; Application: Industrial applications; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...36 DC; Current consumption: 15; (24 V); Reverse polarity protection: yes; Sensing range: 30; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...80 |
|---|---|
| Application | Industrial applications |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | 15; (24 V) |
| Dimensions | Ø 34 / L = 98 |
| Electrical design | PNP |
| Housing | tubular |
| Key Features | Very long sensing range; Smooth plastic housing to protect against deposits; PBT housing resistant against wide range of chemicals; With terminal chamber that can be rotated by 90°; Output function normally open / normally closed programmable |
| Material | housing: PBT; bevelled housing part: PC |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1824 |
| Operating distance | 0...24.3 |
| Operating voltage | 10...36 DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 65 |
| Protection class | II |
| Real sensing range Sr | 30 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 30 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; Ø 34 / L = 98 mm; Sensing range 30 mm non-flush mountable; normally open / closed; (selectable); DC; PNP; terminals: ...2,5 mm²; Cable sheath: Ø 7...13 mm; IP 65; 3-wire; Ambient temperature -25...80 °C; Switching frequency 350 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 350 |
| Terminals | ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IB5133 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 30 attributes listed |
| Related part numbers | 9 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IB5133?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IB5133?
IB5133 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IB5133, and the quote confirms condition and lead time before you order.
Is the IB5133 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IB5133, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IB5133?
No published lifecycle status is on file for IB5133. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IB5133?
Key specifications include Ambient temperature: -25...80; Application: Industrial applications; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3; Current consumption: 15; (24 V). The full specification table on this page lists every published attribute for this part.
What voltage does IB5133 use?
Per the published specification for IB5133: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...36 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IB5133?
Per the published specification for IB5133: Permanent current rating of switching output DC: 200. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is IB5133 made of?
Per the published specification for IB5133: Material: housing: PBT; bevelled housing part: PC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IB5133 ship?
Lead time for IB5133 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
