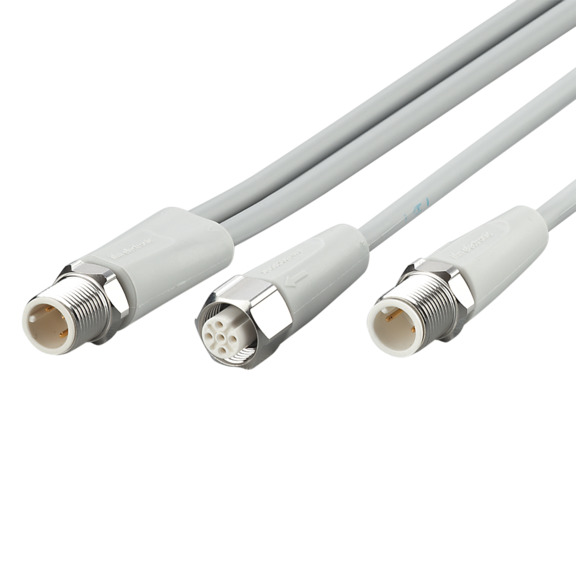

Y connection cable - EVF658
IFM EVF658 - Y connection cable - Weight: 55.6; Ambient temperature: -25...100; Protection class: III.
Overview
IFM EVF658 is a Y connection cable catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 55.6 and Ambient temperature: -25...100.
1 x M12, straight; coding: A; Contacts: 4, gold-plated; Moulded body: PP, grey; Locking: stainless steel (1.4404 / 316L); Tightening torque: 0.6...1.2 Nm
The specification set recorded for this part number covers Protection class: III; Application: sanitary and wet areas in the food industry; Product type: Y connection cable; Cable: 0.2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ); Operating voltage: < 24 DC; Special Feature: Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability; Protection: IP 65; IP 67; IP 68; IP 69K; Sealing material: EPDM; Drag chain suitability: yes; Free from silicone: yes; Material nut: stainless steel (1.4404 / 316L); Max. current load total: 4. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...100 |
|---|---|
| Application | sanitary and wet areas in the food industry |
| Cable | 0.2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Connector | 1 x M12, straight; coding: A; Contacts: 4, gold-plated; Moulded body: PP, grey; Locking: stainless steel (1.4404 / 316L); Tightening torque: 0.6...1.2 Nm |
| Drag chain suitability | yes |
| Free from silicone | yes |
| Key Features | For use in sanitary and wet areas in the food industry; Permanent, reliable sealing even when mounted without tools; Cable jacket made of halogen-free and flame-retardant material; Vibration and shock resistant thanks to coupling ring with locking mechanism; Wide operating temperature range and high protection rating |
| Material nut | stainless steel (1.4404 / 316L) |
| Max. current load total | 4 |
| Molded-body material | PP |
| Number of ports splitter box | 2 |
| Operating voltage | < 24 DC |
| Pack quantity | 1 pcs. |
| Product type | Y connection cable |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Protection class | III |
| Sealing material | EPDM |
| Special Feature | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Specification Summary | Y connection cable; 2; 0.2 m; MPPE; IP 65; IP 67; IP 68; IP 69K; Free from silicone yes; Free from halogen yes; gold-plated contacts yes |
| Weight | 55.6 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | EVF658 |
| KKM catalog reference | IFM-EVF658 |
| Product category | Sensor & Actuator Cordsets |
| Published specifications | 20 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for EVF658?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EVF658?
EVF658 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is EVF658 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for EVF658 — check IFM's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of EVF658?
Key specifications include Ambient temperature: -25...100; Application: sanitary and wet areas in the food industry; Cable: 0.2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ); Connector: 1 x M12, straight; coding: A; Contacts: 4, gold-plated; Moulded body: PP, grey; Locking: stainless steel (1.4404 / 316L); Tightening torque: 0.6...1.2 Nm. The full specification table on this page lists every published attribute for this part.
How quickly can EVF658 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
