EVC095 IFM All male cordsets
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM EVC095 - All male cordsets - Weight: 90.6; Storage Temperature: -25...55; Ambient temperature: -25...90.
Overview
Part number EVC095 from IFM, listed in Sensor & Actuator Cordsets. Specifications on file: Ambient temperature -25...90; Ambient temperature (moving) -25...90; Dimensions 30.5 x 15.5 x 36.5; Drag chain suitability yes. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM EVC095 is an All male cordsets catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 90.6 and Storage Temperature: -25...55.
1 x M12, angled; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
The specification set recorded for this part number covers Ambient temperature: -25...90; Protection class: II; Dimensions: 30.5 x 15.5 x 36.5; Application: Industrial applications; Oils and coolants; Product type: All male cordsets; Cable: 2 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ); Operating voltage: < 60 AC/DC; Special Feature: Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability; Notes: Please see the technical note under "Downloads"; Protection: IP 65; IP 67; IP 68; IP 69K; Ambient temperature (moving): -25...90; Drag chain suitability: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...90 |
|---|---|
| Ambient temperature (moving) | -25...90 |
| Application | Industrial applications; Oils and coolants |
| Cable | 2 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Connector | 1 x M12, angled; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
| Dimensions | 30.5 x 15.5 x 36.5 |
| Drag chain suitability | yes |
| Free from silicone | yes |
| Key Features | Resistant to oils and coolants; Permanent, reliable sealing even when mounted without tools; High protection rating for the requirements of harsh industrial environments; Vibration and shock resistant thanks to coupling ring with locking mechanism; Wide operating temperature range |
| Material nut | brass, nickel-plated |
| Max. current load total | 4 |
| Molded-body material | TPU (urethane) |
| Notes | Please see the technical note under "Downloads" |
| Overall current rating (UL) | 3 |
| Pack quantity | 1 pcs. |
| Product type | All male cordsets |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Protection class | II |
| Special Feature | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Storage humidity | 10...100 |
| Storage Temperature | -25...55 |
| Weight | 90.6 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | EVC095 |
| Product category | Sensor & Actuator Cordsets |
| Published specifications | 22 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for EVC095?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EVC095?
EVC095 is made by IFM and is listed in our Sensor & Actuator Cordsets category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number EVC095, and the quote confirms condition and lead time before you order.
Is the EVC095 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the EVC095, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of EVC095?
No published lifecycle status is on file for EVC095. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of EVC095?
Key specifications include Ambient temperature: -25...90; Ambient temperature (moving): -25...90; Application: Industrial applications; Oils and coolants; Cable: 2 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ). The full specification table on this page lists every published attribute for this part.
What is the current rating of EVC095?
Per the published specification for EVC095: Overall current rating (UL): 3. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does EVC095 weigh?
Per the published specification for EVC095: Weight: 90.6. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can EVC095 ship?
Lead time for EVC095 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Related Products
IFM All male cordsets - EVC094

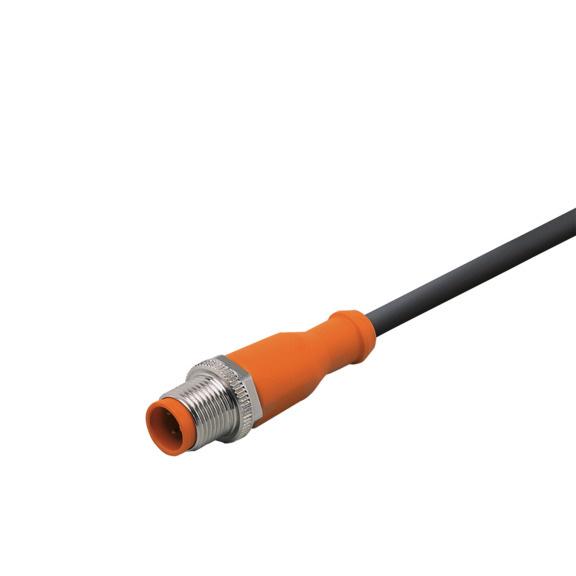

IFM All male cordsets - EVC139
