EC3158 IFM Combined antenna for navigation and radio
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM EC3158 - Combined antenna for navigation and radio - Material: PC black; Type of mounting: Gewinde.
Overview
Part number EC3158 from IFM, listed in Wireless & Antennas. Specifications on file: Ambient temperature -40...85; Cable 3 m; Connector 1 x FAKRA; Dimensions 80 x 124 x 31. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM EC3158 is a Combined antenna for navigation and radio catalog item from IFM. The manufacturer's published data for this part number specifies Material: PC black.
GPS: 1563...1587 MHz (L1); Galileo: 1559...1591 MHz (E1); Beidou: 1559...1591 MHz (B1C); GLONASS: 1593...1610 MHz (G1)
Key manufacturer data on file for this item includes Type of mounting: Gewinde; Ambient temperature: -40...85; Connector: 1 x FAKRA; Tightening torque: < 5; Dimensions: 80 x 124 x 31; Product type: Combined antenna for navigation and radio; Cable: 3 m; Current consumption: < 24; Protection: IP 6K6; Pack quantity: 1 pcs.. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Cable | 3 m |
| Connector | 1 x FAKRA |
| Dimensions | 80 x 124 x 31 |
| Frequency band | GPS: 1563...1587 MHz (L1); Galileo: 1559...1591 MHz (E1); Beidou: 1559...1591 MHz (B1C); GLONASS: 1593...1610 MHz (G1) |
| Key Features | with integrated amplifier; Robust design for use in mobile machines; Flat housing for roof mounting on vehicles and mobile machines; Quick and easy mounting and fixing; For a reliable signal transmission |
| Material | PC black |
| Pack quantity | 1 pcs. |
| Product type | Combined antenna for navigation and radio |
| Protection | IP 6K6 |
| Specification Summary | Combined antenna for navigation and radio; 80 x 124 x 31 mm; Cable with connector |
| Type of mounting | Gewinde |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | EC3158 |
| Product category | Wireless & Antennas |
| Published specifications | 12 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for EC3158?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EC3158?
EC3158 is made by IFM and is listed in our Wireless & Antennas category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number EC3158, and the quote confirms condition and lead time before you order.
Is the EC3158 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the EC3158, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of EC3158?
No published lifecycle status is on file for EC3158. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of EC3158?
Key specifications include Ambient temperature: -40...85; Cable: 3 m; Connector: 1 x FAKRA; Dimensions: 80 x 124 x 31. The full specification table on this page lists every published attribute for this part.
What material is EC3158 made of?
Per the published specification for EC3158: Material: PC black. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can EC3158 ship?
Lead time for EC3158 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM LW2120 antenna extension - E33705
IFM industrial 4G LTE router US - AE9001
IFM Mobile communications antenna - EC2092

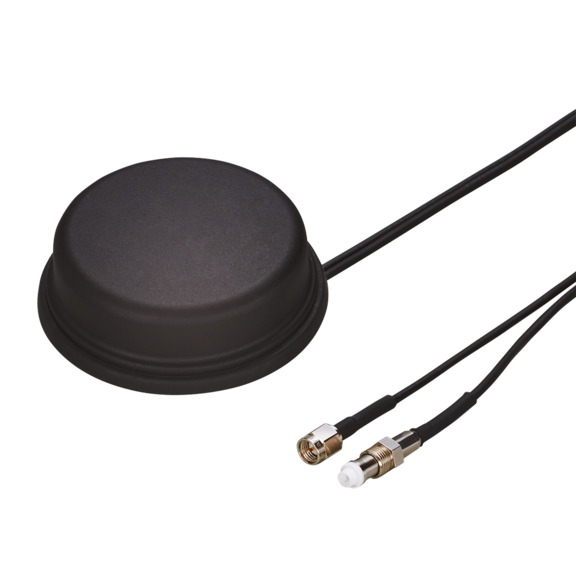

IFM Combined antenna for navigation and radio - EC2116

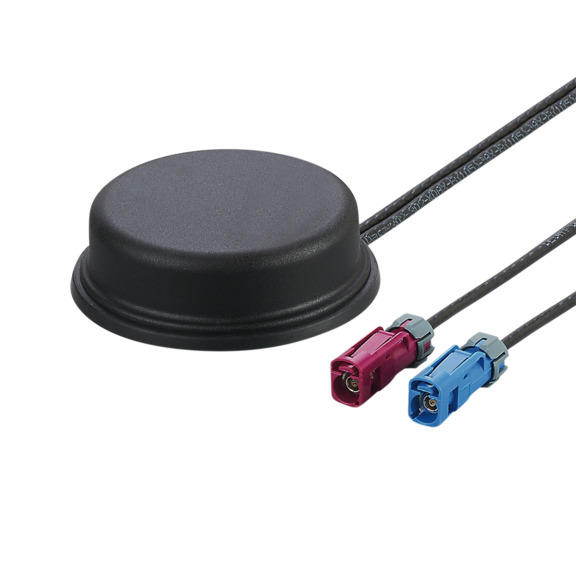

IFM Combined antenna for navigation and radio - EC2119

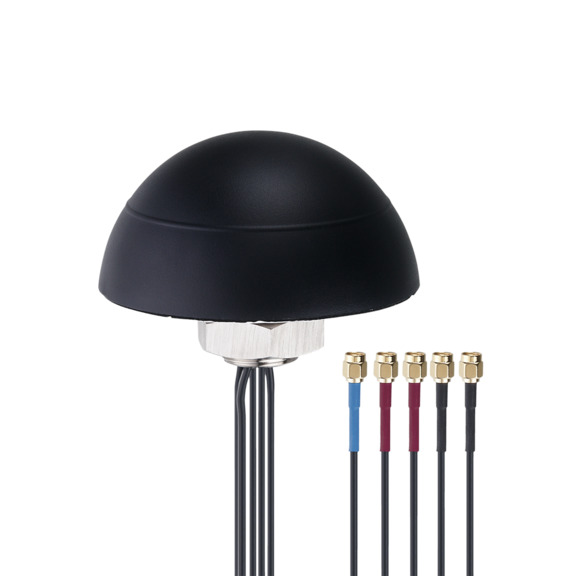

IFM Combined antenna for navigation and radio - EC3170
