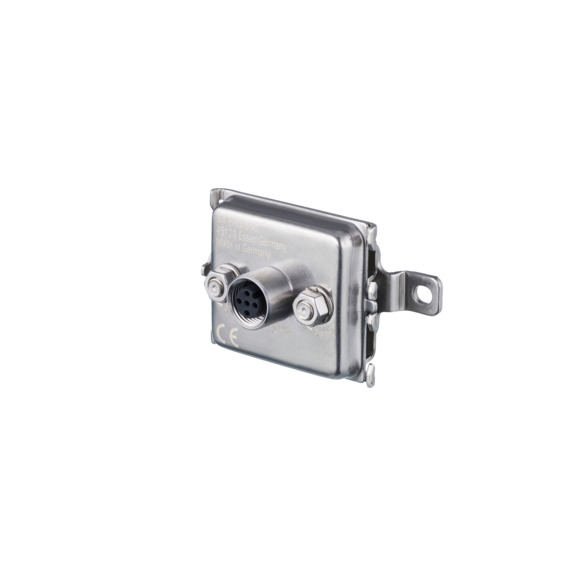

E70354 IFM AS-Interface flat cable insulation displacement connector
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM E70354 - AS-Interface flat cable insulation displacement connector - Ambient temperature: -30...80; Connector: 1 x M12; coding: A; Contacts: 4; Tightening torque: 1.2...1.4 Nm.
Overview
Part number E70354 from IFM, listed in Fieldbus Modules & Gateways. Specifications on file: Ambient temperature -30...80; Design AS-i / 24 V; Max. current load total 4; (AS-i: 2 A; AUX: 2 A); Max. height above sea level 2000. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM E70354 is part of the AS-Interface flat cable insulation displacement connector range in our industrial catalog. The manufacturer's published data for this part number specifies Ambient temperature: -30...80.
metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM
The specification set recorded for this part number covers Connector: 1 x M12; coding: A; Contacts: 4; Tightening torque: 1.2...1.4 Nm; Tightening torque: 2.5; (lock nuts); Protection class: III; Pollution degree: 2; Product type: AS-Interface flat cable insulation displacement connector; Operating voltage: 26.5...31.6 DC; (AS-i); Design: AS-i / 24 V; Protection: IP 67; IP 68; IP 69K; Max. current load total: 4; (AS-i: 2 A; AUX: 2 A); Max. height above sea level: 2000; Max. relative air humidity: 80; (31 °C; linearly decreasing to 50 % (40 °C)); Operating voltage AUX DC: 18...32. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -30...80 |
|---|---|
| Connector | 1 x M12; coding: A; Contacts: 4; Tightening torque: 1.2...1.4 Nm |
| Design | AS-i / 24 V |
| Key Features | for the transition of AS-i / AUX flat cable to M12 connector; Hygienic design for the requirements of the food and beverage industry; Easy and quick connection due to insulation displacement technology; Resistant to high-pressure cleaning with aggressive cleaning agents; Wide operating temperature range and high protection rating |
| Material | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM |
| Max. current load total | 4; (AS-i: 2 A; AUX: 2 A) |
| Max. height above sea level | 2000 |
| Max. relative air humidity | 80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Operating voltage | 26.5...31.6 DC; (AS-i) |
| Operating voltage AUX DC | 18...32 |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | AS-Interface flat cable insulation displacement connector |
| Protection | IP 67; IP 68; IP 69K |
| Protection class | III |
| Specification Summary | Flat cable insulation displacement connector; FCE Splitter ye/bk ProcessL; Connector; IP 67; IP 68; IP 69K |
| Tightening torque | 2.5; (lock nuts) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | E70354 |
| Product category | Fieldbus Modules & Gateways |
| Published specifications | 17 attributes listed |
| Related part numbers | 6 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for E70354?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the E70354?
E70354 is made by IFM and is listed in our Fieldbus Modules & Gateways category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number E70354, and the quote confirms condition and lead time before you order.
Is the E70354 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the E70354, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of E70354?
No published lifecycle status is on file for E70354. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of E70354?
Key specifications include Ambient temperature: -30...80; Connector: 1 x M12; coding: A; Contacts: 4; Tightening torque: 1.2...1.4 Nm; Design: AS-i / 24 V; Key Features: for the transition of AS-i / AUX flat cable to M12 connector; Hygienic design for the requirements of the food and beverage industry; Easy and quick connection due to insulation displacement technology; Resistant to high-pressure cleaning with aggressive cleaning agents; Wide operating temperature range and high protection rating. The full specification table on this page lists every published attribute for this part.
What voltage does E70354 use?
Per the published specification for E70354: Operating voltage: 26.5...31.6 DC; (AS-i); Operating voltage AUX DC: 18...32. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is E70354 made of?
Per the published specification for E70354: Material: metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can E70354 ship?
Lead time for E70354 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
