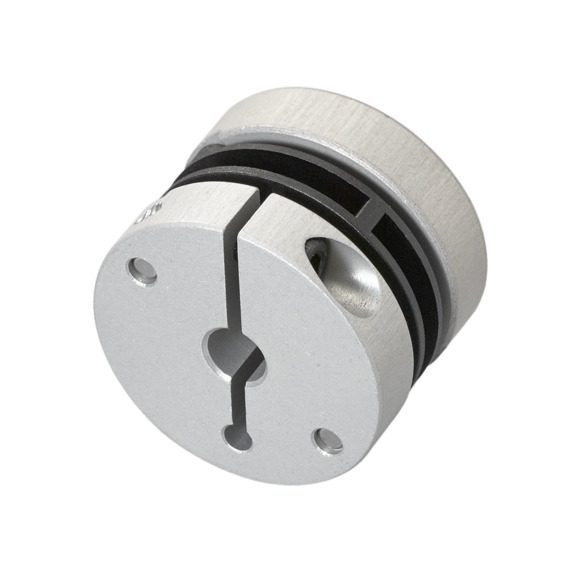

E60116 IFM Spring disc coupling
IFM E60116 - Spring disc coupling - Material: diecast zinc; PA; Weight: 31; Dimensions: Ø 30 / L = 22.
Overview
This listing covers the IFM E60116, a part number in the Spring disc coupling category. The manufacturer's published data for this part number specifies Material: diecast zinc; PA and Weight: 31.
Clearance-free transmission of rotary movements; Efficient vibration damping; Excellent compensation of alignment errors; Low rigidity of the torsion spring; Small restoring forces
Key manufacturer data on file for this item includes Dimensions: Ø 30 / L = 22; Product type: Spring disc coupling; Length L: 22 mm; External diameter D: 30; Inside diameter 1: 6; Inside diameter 2: 8; Max. angular displacement: ± 2,5; Max. axial shaft misalignment: ± 0,4; Max. radial shaft misalignment: ± 0,3; Max. revolution, mechanical: 12000; Pack quantity: 1 pcs.; Specification Summary: Spring disc coupling; Ø 30 / L = 22 mm. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Dimensions | Ø 30 / L = 22 |
|---|---|
| External diameter D | 30 |
| Inside diameter 1 | 6 |
| Inside diameter 2 | 8 |
| Key Features | Clearance-free transmission of rotary movements; Efficient vibration damping; Excellent compensation of alignment errors; Low rigidity of the torsion spring; Small restoring forces |
| Length L | 22 mm |
| Material | diecast zinc; PA |
| Max. angular displacement | ± 2,5 |
| Max. axial shaft misalignment | ± 0,4 |
| Max. radial shaft misalignment | ± 0,3 |
| Max. revolution, mechanical | 12000 |
| Pack quantity | 1 pcs. |
| Product type | Spring disc coupling |
| Specification Summary | Spring disc coupling; Ø 30 / L = 22 mm |
| Weight | 31 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | E60116 |
| KKM catalog reference | IFM-E60116 |
| Product category | Shaft Couplings & Collars |
| Published specifications | 15 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for E60116?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the E60116?
E60116 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of E60116?
We do not hold a published lifecycle status for E60116. IFM's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of E60116?
Key specifications include Dimensions: Ø 30 / L = 22; External diameter D: 30; Inside diameter 1: 6; Inside diameter 2: 8. The full specification table on this page lists every published attribute for this part.
How quickly can E60116 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
