process adapter clamp ISO 2852 - E40481
IFM E40481 - process adapter clamp ISO 2852 - Material: stainless steel (1.4404 / 316L); Weight: 1351.7; Dimensions: Ø 78 / L = 47.4.
This listing covers the IFM E40481, a part number in the process adapter clamp ISO 2852 category. The manufacturer's published data for this part number specifies Material: stainless steel (1.4404 / 316L) and Weight: 1351.7.
Installation in combination with the hygienic flow meter (SMF series); For installation in pipes; Easy, quick and secure mounting; Food-grade stainless-steel adapters; Version with leakage port
Published specifications for this part include Dimensions: Ø 78 / L = 47.4; Application: food and beverage industry; hygienic systems; Product type: process adapter clamp ISO 2852; Design: for flow meter SMF; Process Connection: Clamp ISO 2852; Housing: tubular; Nominal diameter: DN25 (1“); Pack quantity: 2 pcs.; Process connection suitable for pipe standard: (ISO 2037); (DIN EN 10357 Series D); Sensor connection: ifm-specific device flange; Surface characteristics Ra/Rz of the wetted parts: Ra < 0.4 µm. See the Specifications tab on this page for the full technical table.
| Application | food and beverage industry; hygienic systems |
|---|---|
| Design | for flow meter SMF |
| Dimensions | Ø 78 / L = 47.4 |
| Housing | tubular |
| Key Features | Installation in combination with the hygienic flow meter (SMF series); For installation in pipes; Easy, quick and secure mounting; Food-grade stainless-steel adapters; Version with leakage port |
| Material | stainless steel (1.4404 / 316L) |
| Nominal diameter | DN25 (1“) |
| Pack quantity | 2 pcs. |
| Pressure equipment directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Process Connection | Clamp ISO 2852 |
| Process connection suitable for pipe standard | (ISO 2037); (DIN EN 10357 Series D) |
| Product type | process adapter clamp ISO 2852 |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
| Sensor connection | ifm-specific device flange |
| Specification Summary | process adapter clamp ISO 2852; Ø 78 / L = 47.4 mm; Sensor connection ifm-specific device flange; Process connection Clamp; stainless steel (1.4404 / 316L); Pressure rating 16 bar; Approval FDA; FCM; 3-A; hygienic cleanable |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm |
| Weight | 1351.7 |
Frequently Asked Questions
How do I get pricing for E40481?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the E40481?
E40481 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of E40481?
Key specifications include Application: food and beverage industry; hygienic systems; Design: for flow meter SMF; Dimensions: Ø 78 / L = 47.4; Housing: tubular. The full specification table on this page lists every published attribute for this part.
How quickly can E40481 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM process adapter clamp ISO 2852 - E40484
IFM process adapter clamp ISO 2852 - E40485
IFM process adapter clamp ISO 2852 - E40486

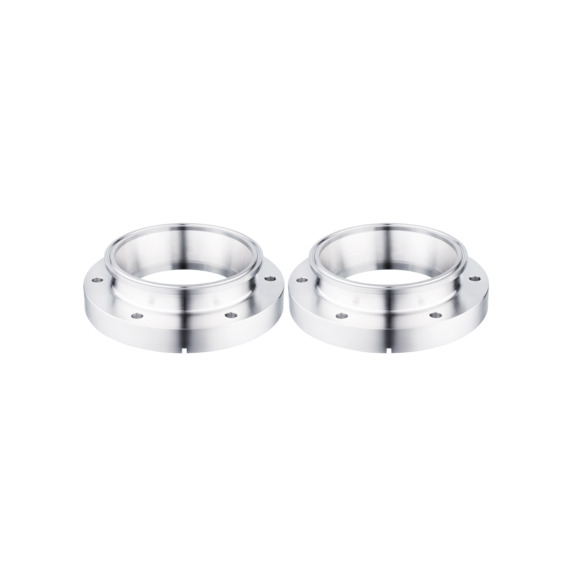

IFM process adapter clamp ISO 2852 - E40487

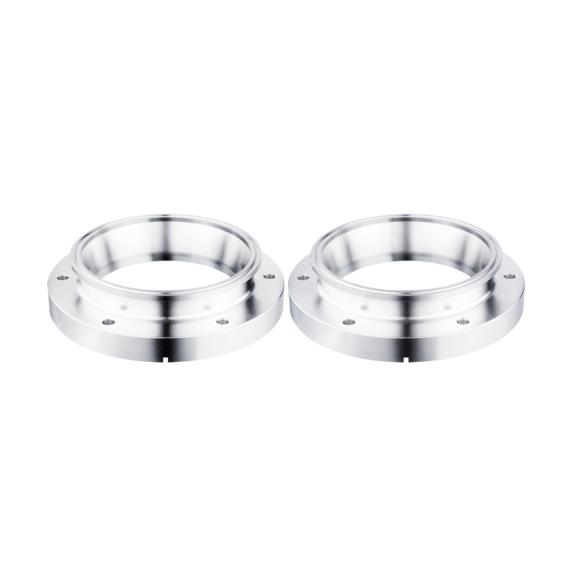

IFM process adapter clamp ISO 2852 - E40488
