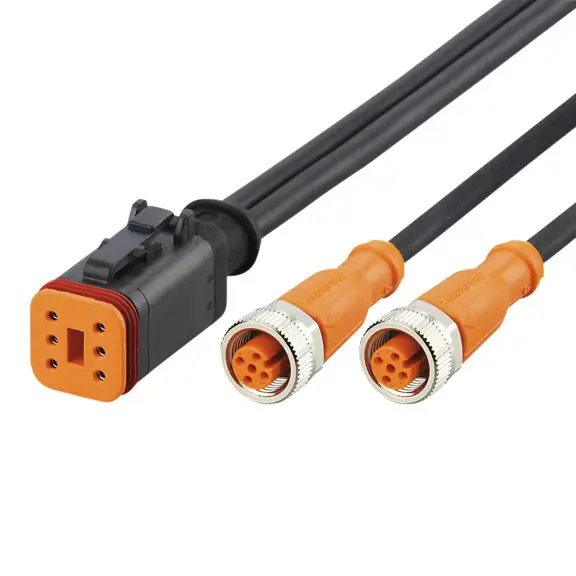

E12546 IFM Y connection cable
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM E12546 - Y connection cable - Material: PA; Ambient temperature: -40...85.
Overview
Part number E12546 from IFM, listed in Sensor & Actuator Cordsets. Specifications on file: Ambient temperature -40...85; Ambient temperature (moving) -20...85; Dimensions 24 x 24 x 54; Drag chain suitability yes. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the E12546 from IFM is listed under the Y connection cable category. The manufacturer's published data for this part number specifies Material: PA.
1 x DEUTSCH connector, straight; Contacts: 6, nickel-plated; Tightening torque: 0.6...1.5 Nm
Key manufacturer data on file for this item includes Ambient temperature: -40...85; Protection class: III; Dimensions: 24 x 24 x 54; Application: Industrial applications; Oils and coolants; Product type: Y connection cable; Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm ); Operating voltage: 8...32 DC; Special Feature: Free from silicone; Halogen-free; Drag chain suitability; Protection: IP 67; (mating connector plugged in); Ambient temperature (moving): -20...85; Drag chain suitability: yes; Free from silicone: yes. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Ambient temperature (moving) | -20...85 |
| Application | Industrial applications; Oils and coolants |
| Cable | 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm ) |
| Connector | 1 x DEUTSCH connector, straight; Contacts: 6, nickel-plated; Tightening torque: 0.6...1.5 Nm |
| Dimensions | 24 x 24 x 54 |
| Drag chain suitability | yes |
| Free from silicone | yes |
| Key Features | For use in mobile machines and vehicles; Wide operating temperature range; DEUTSCH connector for the fast and easy connection to the on-board system; High protection rating for the requirements of harsh industrial environments; PUR cable with good drag chain suitability |
| Material | PA |
| Max. current load total | 4 |
| Number of ports splitter box | 2 |
| Operating voltage | 8...32 DC |
| Pack quantity | 1 pcs. |
| Product type | Y connection cable |
| Protection | IP 67; (mating connector plugged in) |
| Protection class | III |
| Special Feature | Free from silicone; Halogen-free; Drag chain suitability |
| Specification Summary | Y connection cable; 2; 1 m; PUR; Housing materials PA; IP 67; (mating connector plugged in); Free from silicone yes; Free from halogen yes |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | E12546 |
| Product category | Sensor & Actuator Cordsets |
| Published specifications | 19 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for E12546?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the E12546?
E12546 is made by IFM and is listed in our Sensor & Actuator Cordsets category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number E12546, and the quote confirms condition and lead time before you order.
Is the E12546 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the E12546, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of E12546?
No published lifecycle status is on file for E12546. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of E12546?
Key specifications include Ambient temperature: -40...85; Ambient temperature (moving): -20...85; Application: Industrial applications; Oils and coolants; Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm ). The full specification table on this page lists every published attribute for this part.
What voltage does E12546 use?
Per the published specification for E12546: Operating voltage: 8...32 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is E12546 made of?
Per the published specification for E12546: Material: PA. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can E12546 ship?
Lead time for E12546 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
