DTI130 IFM RFID read/write head HF
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM DTI130 - RFID read/write head HF - Material: housing: brass; sensing face: LCP; Storage Temperature: -25...80.
Overview
Part number DTI130 from IFM, listed in Vision, Measurement & Identification. Specifications on file: Ambient temperature -20...60; Communication interface IO-Link; Connector 1 x M12; coding: A; Contacts: 4; Dimensions M30 x 1.5 / L = 50. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM DTI130 is part of the RFID read/write head HF range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: brass; sensing face: LCP.
Read/write antenna; 13,56 MHz; IO-Link; M30 x 1.5 / L = 50 mm; Ambient temperature -20...60 °C; IP 67; IP 69K
The specification set recorded for this part number covers Storage Temperature: -25...80; Ambient temperature: -20...60; Connector: 1 x M12; coding: A; Contacts: 4; Protection class: III; Dimensions: M30 x 1.5 / L = 50; Number of digital outputs: 2; Application: Detection of objects on transport equipment; Output signal: switching signal; IO-Link; Product type: RFID read/write head HF; Mounting: flush mountable; Operating frequency: 13,56; Communication interface: IO-Link. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -20...60 |
|---|---|
| Application | Detection of objects on transport equipment |
| Communication interface | IO-Link |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Dimensions | M30 x 1.5 / L = 50 |
| Electrical design | PNP/NPN; (configurable) |
| Housing | Threaded type |
| IO-Link revision | 1.1 |
| Material | housing: brass; sensing face: LCP |
| Max. current load per output | 100 |
| Max. voltage drop switching output DC | 2 |
| Min. process cycle time | 4 |
| Mounting | flush mountable |
| MTTF | 249 |
| Number of digital outputs | 2 |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Operating frequency | 13,56 |
| Operating voltage | 18...30 DC |
| Output function | normally open / closed |
| Output signal | switching signal; IO-Link |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Product type | RFID read/write head HF |
| Protection | IP 67; IP 69K |
| Protection class | III |
| Radio approval for | EU/RED; Great Britain; Canada; USA; China; India |
| Required master port class | A |
| RFID standard | ISO 15693; ISO 14443A |
| SDCI standard | IEC 61131-9 |
| Short circuit protection | yes |
| SIO mode | yes |
| Specification Summary | Read/write antenna; 13,56 MHz; IO-Link; M30 x 1.5 / L = 50 mm; Ambient temperature -20...60 °C; IP 67; IP 69K |
| Storage Temperature | -25...80 |
| Thread designation | M30 x 1.5 |
| Transmission type | COM3 (230,4 kBaud) |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | DTI130 |
| Product category | Vision, Measurement & Identification |
| Published specifications | 36 attributes listed |
| Related part numbers | 7 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for DTI130?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DTI130?
DTI130 is made by IFM and is listed in our Vision, Measurement & Identification category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number DTI130, and the quote confirms condition and lead time before you order.
Is the DTI130 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the DTI130, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of DTI130?
No published lifecycle status is on file for DTI130. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of DTI130?
Key specifications include Ambient temperature: -20...60; Application: Detection of objects on transport equipment; Communication interface: IO-Link; Connector: 1 x M12; coding: A; Contacts: 4. The full specification table on this page lists every published attribute for this part.
What voltage does DTI130 use?
Per the published specification for DTI130: Max. voltage drop switching output DC: 2; Operating voltage: 18...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does DTI130 use?
Per the published specification for DTI130: Thread designation: M30 x 1.5. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is DTI130 made of?
Per the published specification for DTI130: Material: housing: brass; sensing face: LCP. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can DTI130 ship?
Lead time for DTI130 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM RFID read/write head HF - DTI125
IFM RFID read/write head HF - DTI131

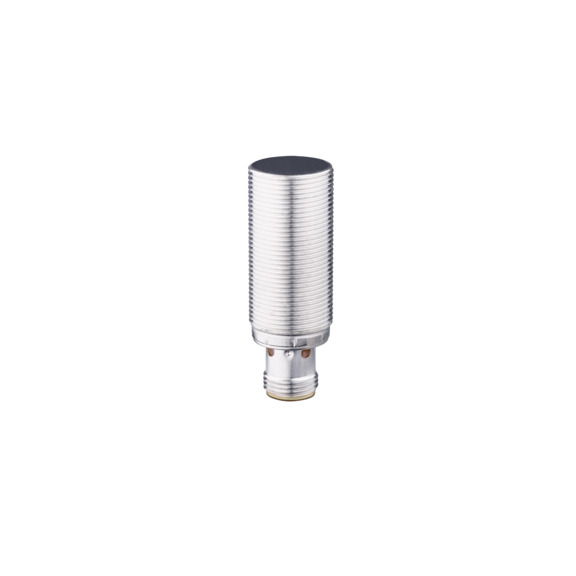

IFM RFID read/write head HF - DTI120
IFM RFID read/write head HF - DTI134

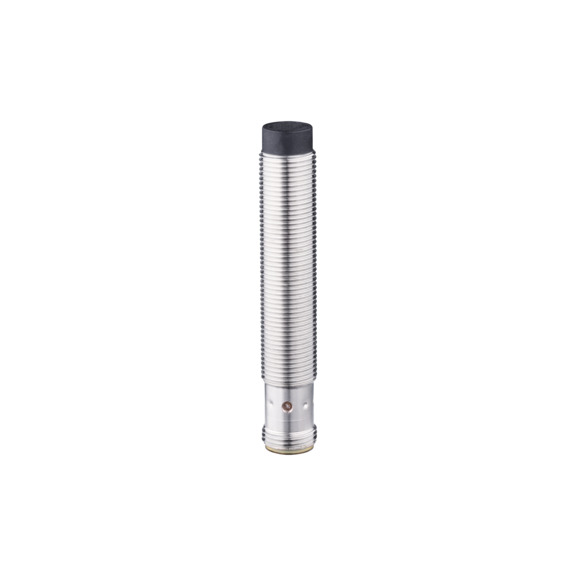

IFM RFID read/write head HF - DTI111
