CR413S IFM Programmable controller for mobile machines
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM CR413S - Programmable controller for mobile machines - Material: housing: PPE + PS; Processor: 32-Bit Triple-Core.
Overview
Part number CR413S from IFM, listed in PLC CPUs & Systems. Specifications on file: Ambient temperature -40...85; Boot time ≤ 3 s; Communication interface CAN; Ethernet; Connector 1 x M12; coding: D; Contacts: 5. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM CR413S, a part number in the Programmable controller for mobile machines category. The manufacturer's published data for this part number specifies Material: housing: PPE + PS and Processor: 32-Bit Triple-Core.
yes; (VBB30; VBB0, VBB1, VBB2: in case of supply via the on-board system / battery)
The specification set recorded for this part number covers Weight: 560; Storage Temperature: -40...85; Type of mounting: screw mounting; (3 x M4); Ambient temperature: -40...85; Protocol: CANopen; SAE J1939; Connector: 1 x M12; coding: D; Contacts: 5; Interface: CAN Interface 2.0 A/B ISO 11898; Dimensions: 162.2 x 139.2 x 25.5; Number of digital inputs: 16; Number of digital outputs: 16; Pollution degree: 2; Product type: Programmable controller for mobile machines. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Boot time | ≤ 3 s |
| Communication interface | CAN; Ethernet |
| Connector | 1 x M12; coding: D; Contacts: 5 |
| Dimensions | 162.2 x 139.2 x 25.5 |
| Housing | rectangular |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Key Features | Freely programmable to IEC 61131-3 with CODESYS 3.5; High-performance CAN interface for various communication tasks; Multifunctional inputs and current-controlled outputs ensure maximum adaptability; Can be used as a safety controller up to SIL2/PL d when combined with a TÜV-certified software package |
| Mass storage | 9 MByte Flash |
| Material | housing: PPE + PS |
| Max. height above sea level | 5000 |
| Max. relative air humidity | 90; (non condensing) |
| Nominal voltage DC | 12 / 24 |
| Non-volatile memory | 10 kByte |
| Notes | for use as a safety controller, a separately available licence (CP100S) is required |
| Number of Analog Inputs | 12 |
| Number of CAN interfaces | 2 |
| Number of digital inputs | 16 |
| Number of digital outputs | 16 |
| Number of Ethernet interfaces | 1 |
| Number of frequency inputs | 4 |
| Number of PWM outputs | 12 |
| Number of PWM-I outputs | 4 |
| Number of resistor inputs | 4 |
| Operating system | real-time operating system |
| Operating voltage | 8...32 DC |
| Overvoltage category | II |
| Pack quantity | 1 pcs. |
| Parameter setting options | CODESYS 3.5 |
| PLC function to IEC 61131-3 | yes |
| Pollution degree | 2 |
| Power consumption | 4; (VBB30) |
| Processor | 32-Bit Triple-Core |
| Product type | Programmable controller for mobile machines |
| Protection | IP 20 |
| Protocol | CANopen; SAE J1939 |
| Reverse polarity protection | yes; (VBB30; VBB0, VBB1, VBB2: in case of supply via the on-board system / battery) |
| Specification Summary | ecomatBasic; 162.2 x 139.2 x 25.5 mm; Connector |
| Storage Temperature | -40...85 |
| Total number of inputs | 16 |
| Total number of inputs and outputs | 32 |
| Total number of outputs | 16 |
| Transmission rate | 20 kBit/s... 1 MBit/s |
| Transmission standard | 10Base-T; 100Base-TX |
| Type of mounting | screw mounting; (3 x M4) |
| Working memory | 2,7 MByte RAM |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | CR413S |
| Product category | PLC CPUs & Systems |
| Published specifications | 46 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for CR413S?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CR413S?
CR413S is made by IFM and is listed in our PLC CPUs & Systems category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number CR413S, and the quote confirms condition and lead time before you order.
Is the CR413S new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the CR413S, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of CR413S?
No published lifecycle status is on file for CR413S. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of CR413S?
Key specifications include Ambient temperature: -40...85; Boot time: ≤ 3 s; Communication interface: CAN; Ethernet; Connector: 1 x M12; coding: D; Contacts: 5. The full specification table on this page lists every published attribute for this part.
What voltage does CR413S use?
Per the published specification for CR413S: Nominal voltage DC: 12 / 24; Operating voltage: 8...32 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is CR413S made of?
Per the published specification for CR413S: Material: housing: PPE + PS. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can CR413S ship?
Lead time for CR413S is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Frequently Searched IFM Part Numbers
Related Products
IFM Programmable controller for mobile machines - CR403S
IFM Programmable controller for mobile machines - CR710S

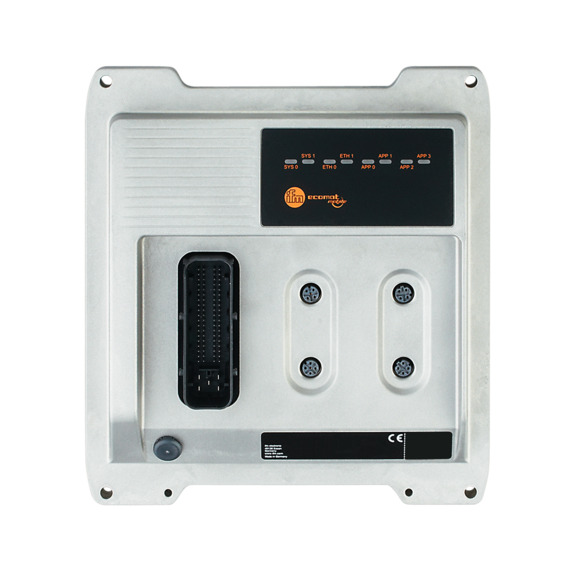

IFM Programmable controller for mobile machines - CR711S

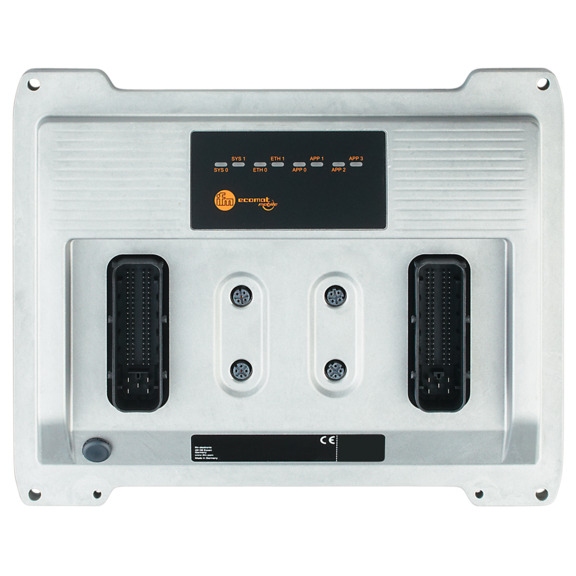

IFM Programmable controller for mobile machines - CR720S
