IO-Link CompactLine module - AL2230
IFM AL2230 - IO-Link CompactLine module - Material: housing: PA grey; Socket: stainless steel (1.4404 / 316L); Weight: 314; Storage Temperature: -25...70.
This listing covers the IFM AL2230, a part number in the IO-Link CompactLine module category. The manufacturer's published data for this part number specifies Material: housing: PA grey; Socket: stainless steel (1.4404 / 316L) and Weight: 314.
Six ports with two binary outputs each; Two separate voltage supplies rated up to 1.8 A each; High protection rating for the food and beverage industry
Published specifications for this part include Storage Temperature: -25...70; Type of mounting: Backplane mounting; Ambient temperature: -25...60; Connector: 1 x M12; coding: A; Contacts: 4; Protection class: III; Dimensions: 152 x 59.3 x 38; Number of digital outputs: 12; (6 x 2); Pollution degree: 2; Product type: IO-Link CompactLine module; Communication interface: IO-Link; Operating voltage: 18...30 DC; (US); Current consumption: 50; (US). The complete technical table is shown in the Specifications tab on this page.
| Additional voltage supply | 18...28 DC; (UA) |
|---|---|
| Ambient temperature | -25...60 |
| Communication interface | IO-Link |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Current consumption | 50; (US) |
| Dimensions | 152 x 59.3 x 38 |
| Electrically separated | yes |
| Housing | rectangular |
| IO-Link revision | 1.1 |
| Key Features | Six ports with two binary outputs each; Two separate voltage supplies rated up to 1.8 A each; High protection rating for the food and beverage industry |
| Material | housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Max. current consumption from additional supply | 3600; (UA) |
| Max. current load outputs total | 3.6; (Max. current load per output side: 1800 mA) |
| Max. current load per output | 1800 |
| Max. height above sea level | 2000 |
| Max. relative air humidity | 90 |
| Min. process cycle time | 5.6 |
| MTTF | 63 |
| Number of digital outputs | 12; (6 x 2) |
| Number of inputs and outputs | Number of digital outputs: 12 |
| Operating voltage | 18...30 DC; (US) |
| Output function | PNP |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | IO-Link CompactLine module |
| Protection | IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection class | III |
| Protection rating (NEMA 250) | 6P |
| SDCI standard | IEC 61131-9 |
| Sealing material | EPDM |
| SIO mode | no |
| Specification Summary | IO-Link output module; 152 x 59.3 x 38 mm; Number of digital outputs 12; (6 x 2); IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Storage Temperature | -25...70 |
| Transmission type | COM2 (38,4 kBaud) |
| Type of mounting | Backplane mounting |
| Weight | 314 |
Frequently Asked Questions
How do I get pricing for AL2230?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the AL2230?
AL2230 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of AL2230?
Key specifications include Additional voltage supply: 18...28 DC; (UA); Ambient temperature: -25...60; Communication interface: IO-Link; Connector: 1 x M12; coding: A; Contacts: 4. The full specification table on this page lists every published attribute for this part.
How quickly can AL2230 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM IO-Link CompactLine module - AL2231

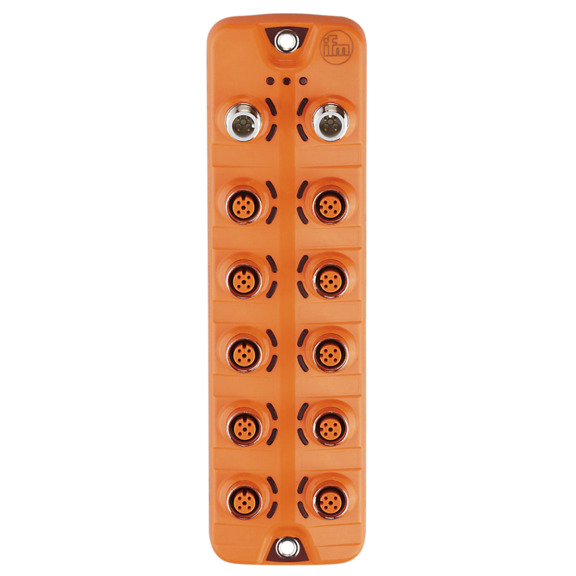

IFM IO-Link CompactLine module - AL2331

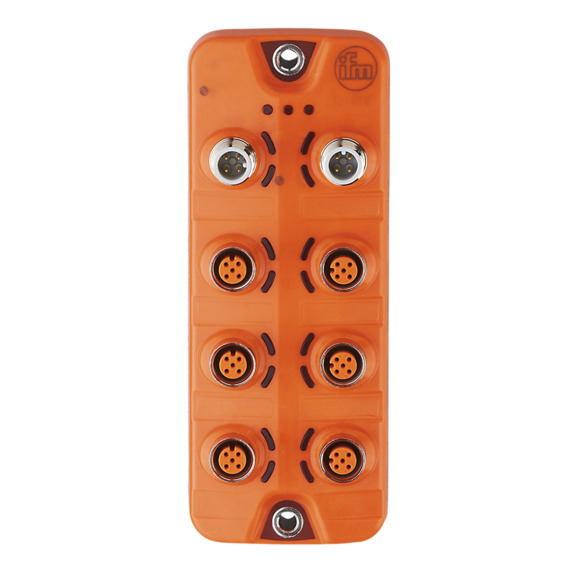

IFM IO-Link CompactLine module - AL2336
